R5 Arc Lock Model Hot

LED Screen Rental Stage -Enbon R5 Model Arc Lock Design

LED Screen Rental Stage -Enbon R5 Model offers fast lock and arc lock design, modular power control, and stable signal without wire connections
  1. Integrated cabinet design saves maintenance time
  2. Plane lock and arc lock are integrated to support a variety of scene applications

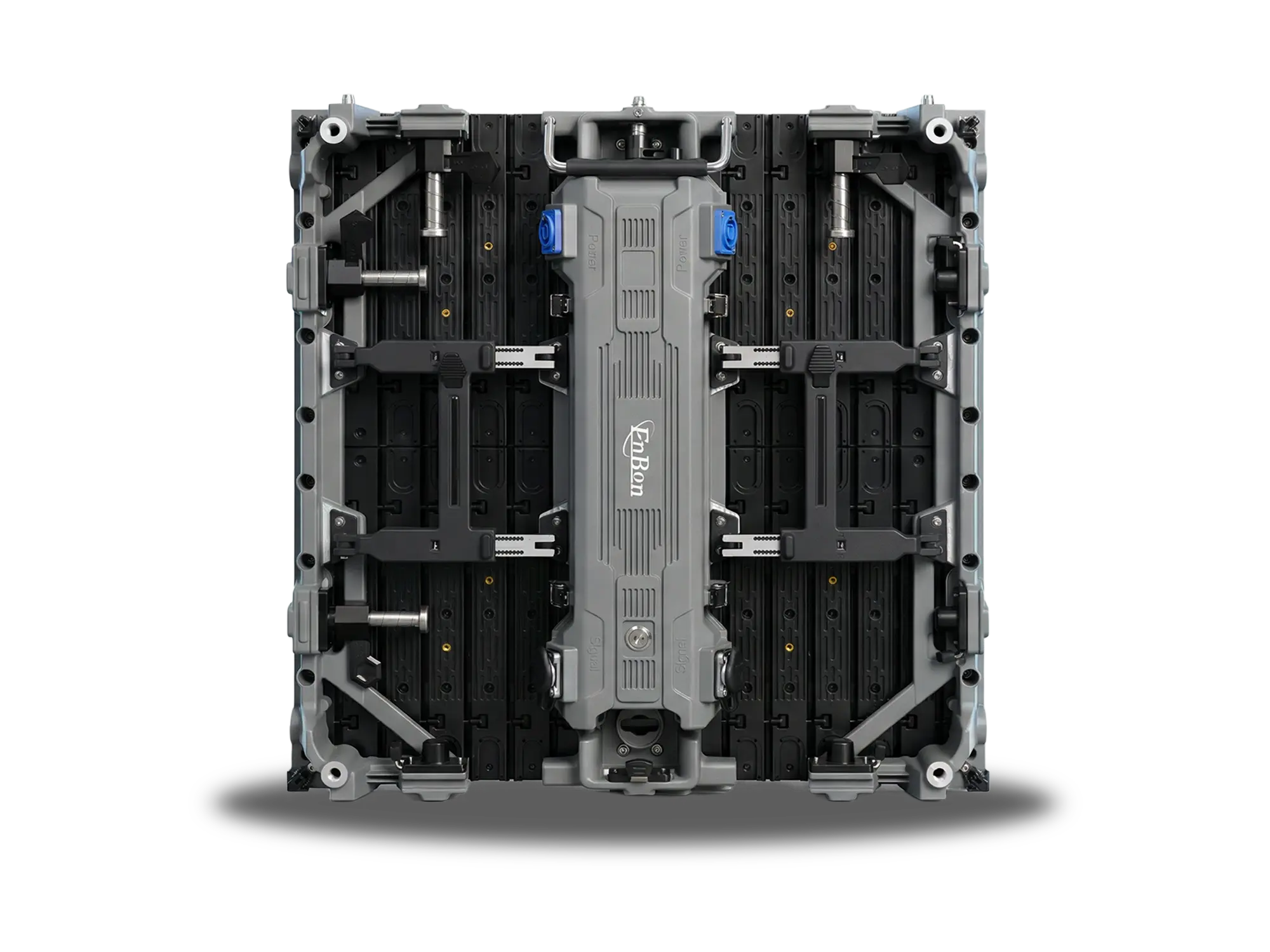

  3. Arc lock support  0°/±2.5°/±5°±7.5°

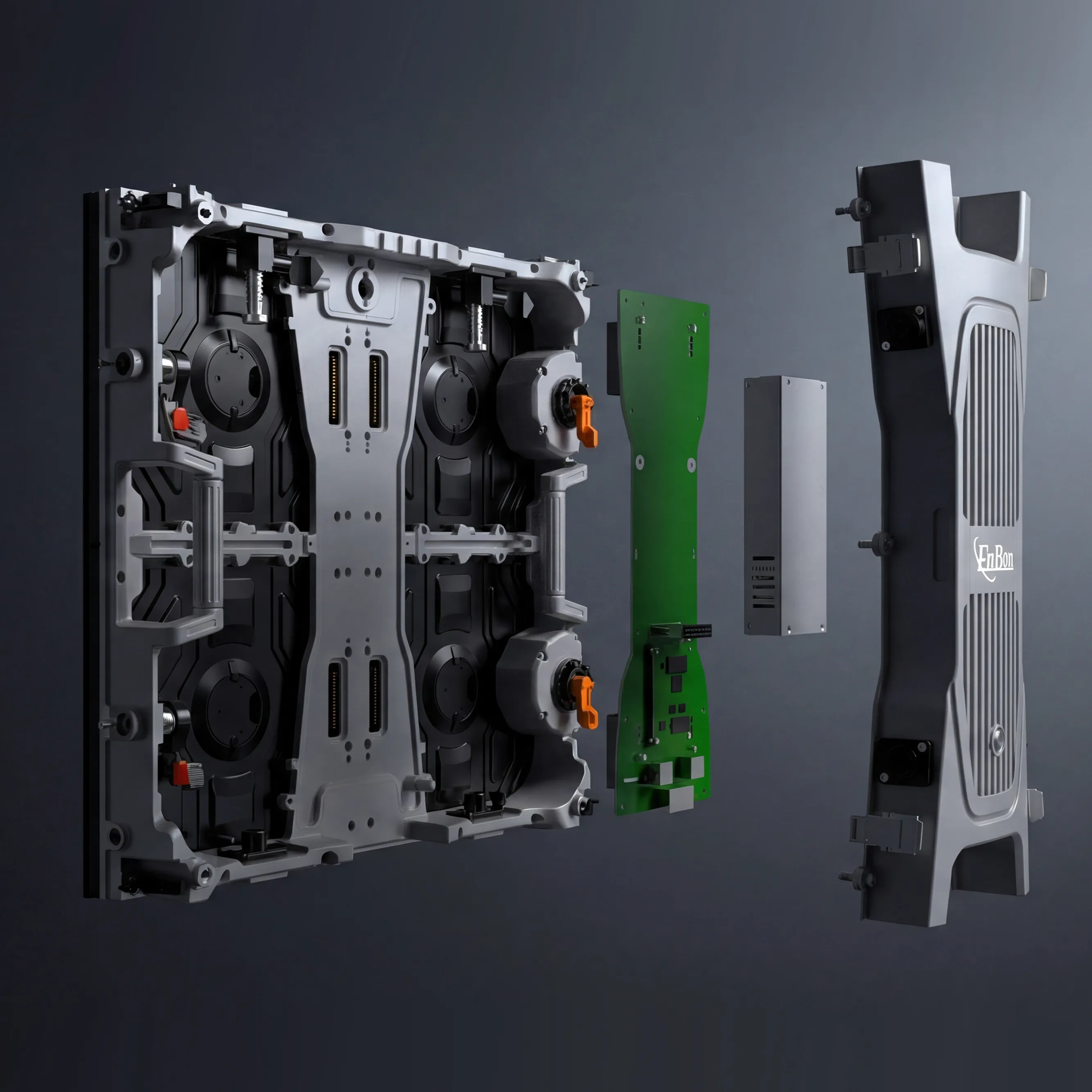

  4. Modular design of power control cabinet, no wire is needed to connect the module
  5. The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
IP654000nitsP2.604P2.976P3.91P4.81P1.56P1.95ArcLook

Description

Rental Stage Solution

R5 Series

Arc Lock Model

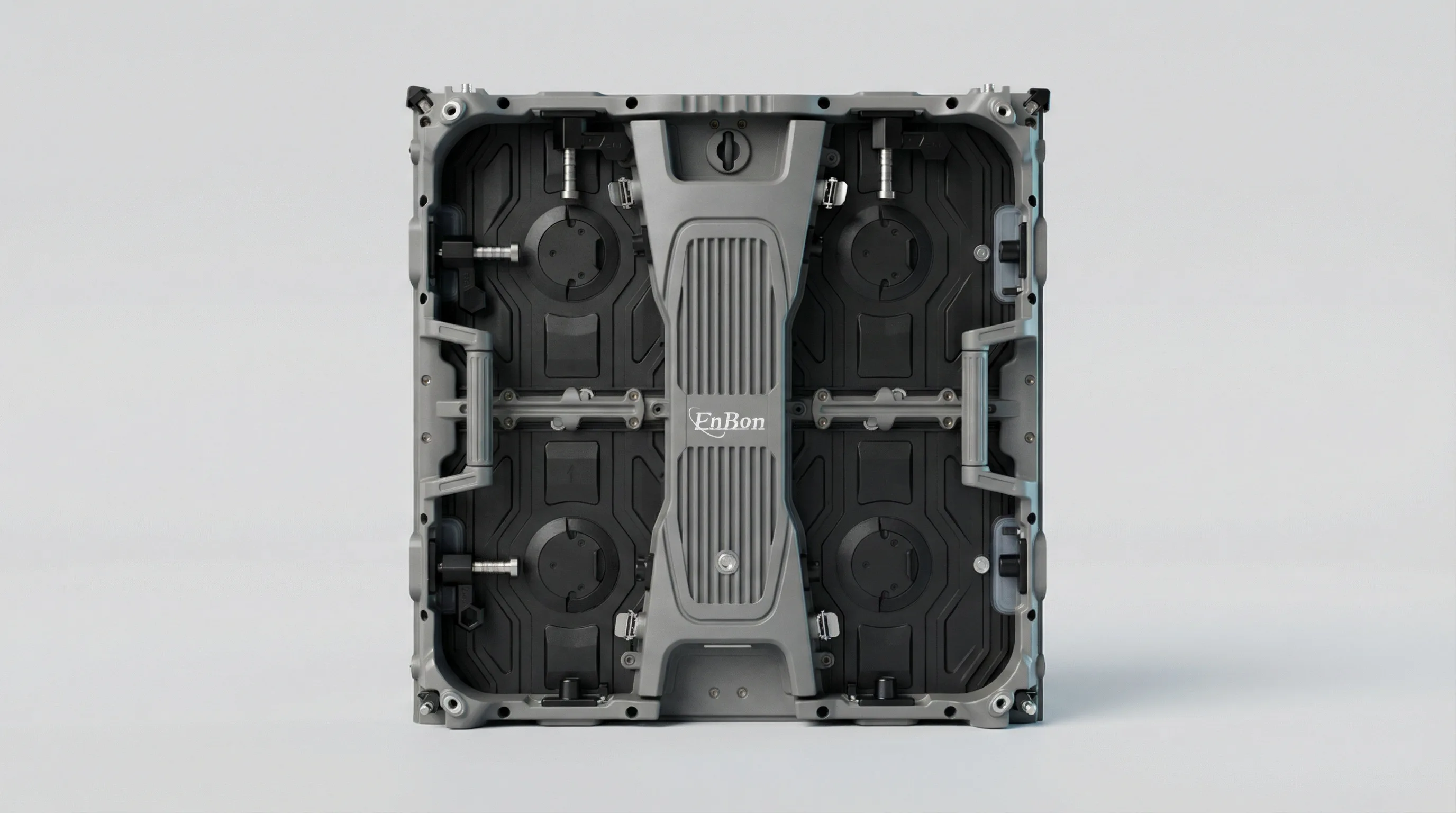

Easy to front maintenance and rear maintenance

R5 Img

IP65 Weatherproof

3840Hz Refresh Rate

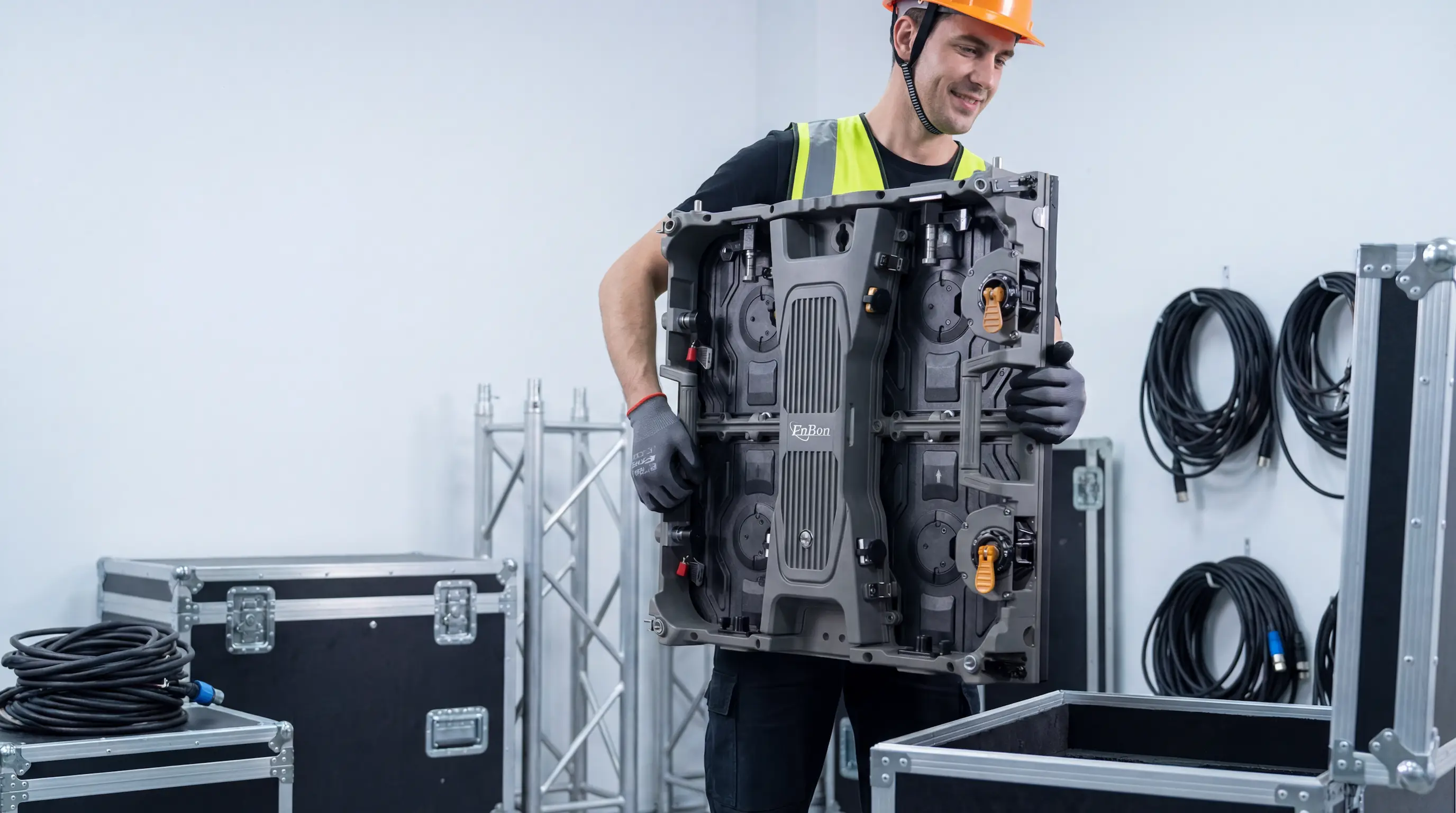

Ultra-Lightweight

Quick-Lock Mechanism

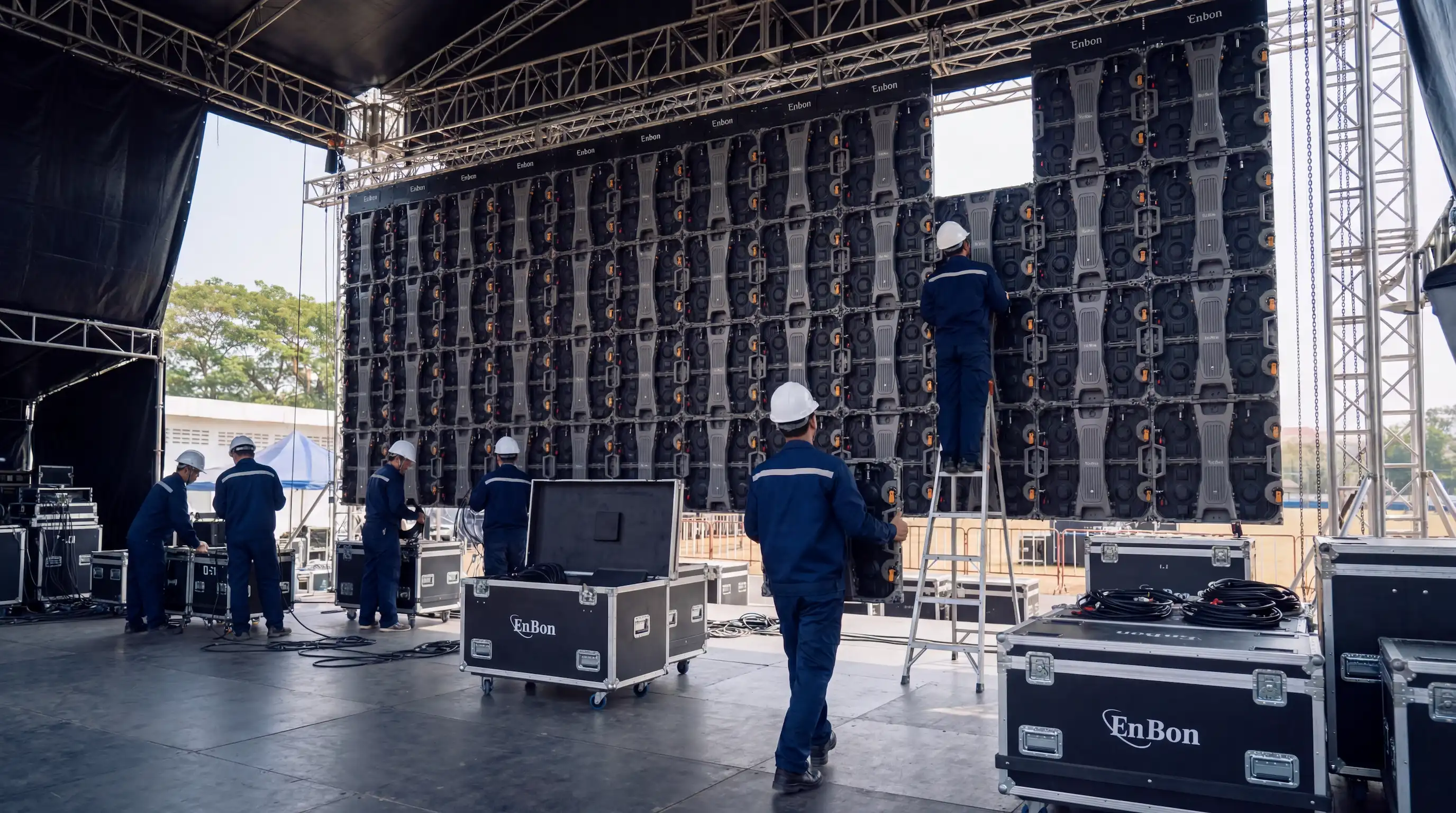

Rental-Optimized

High Performance

High-Brightness

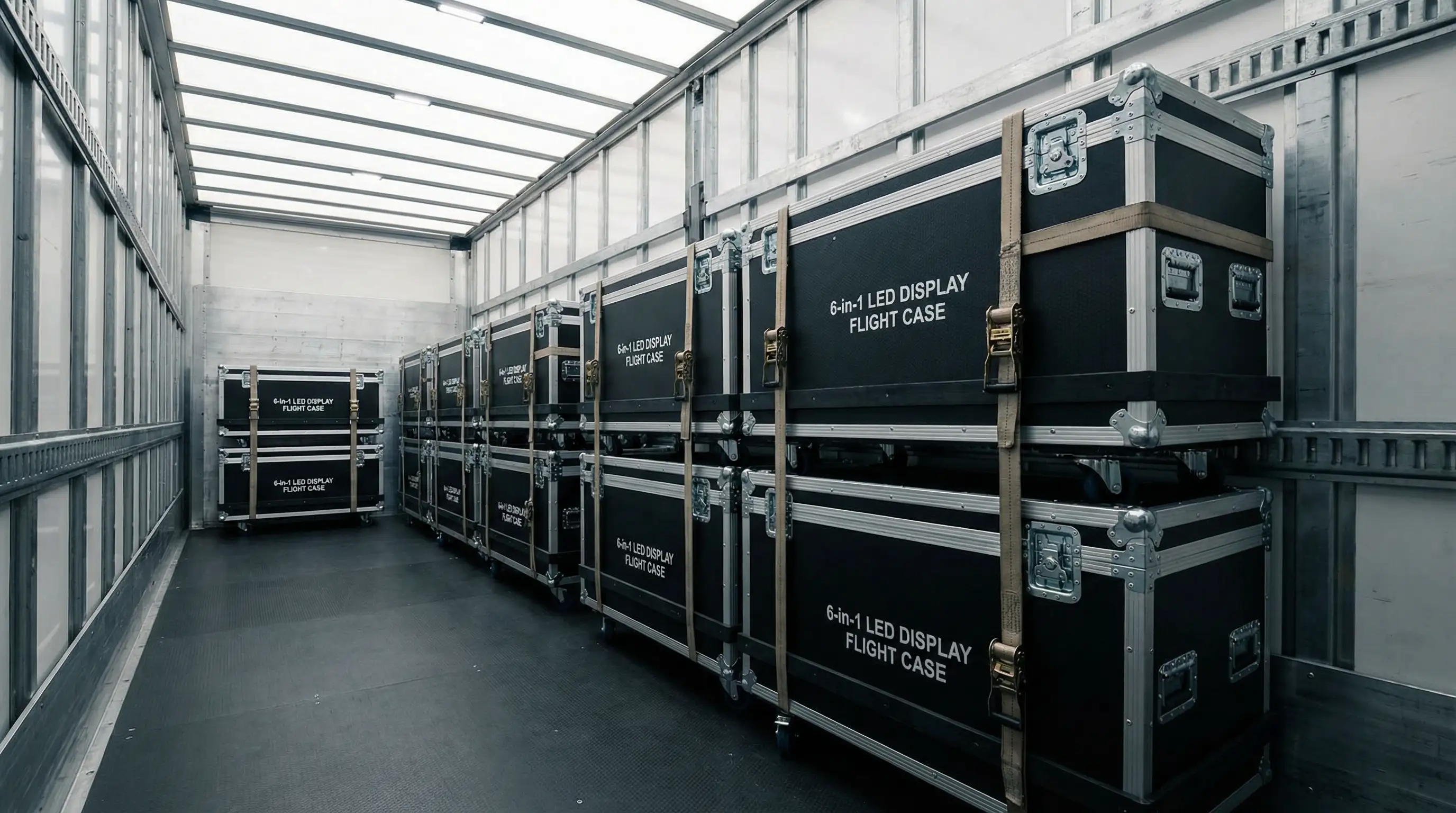

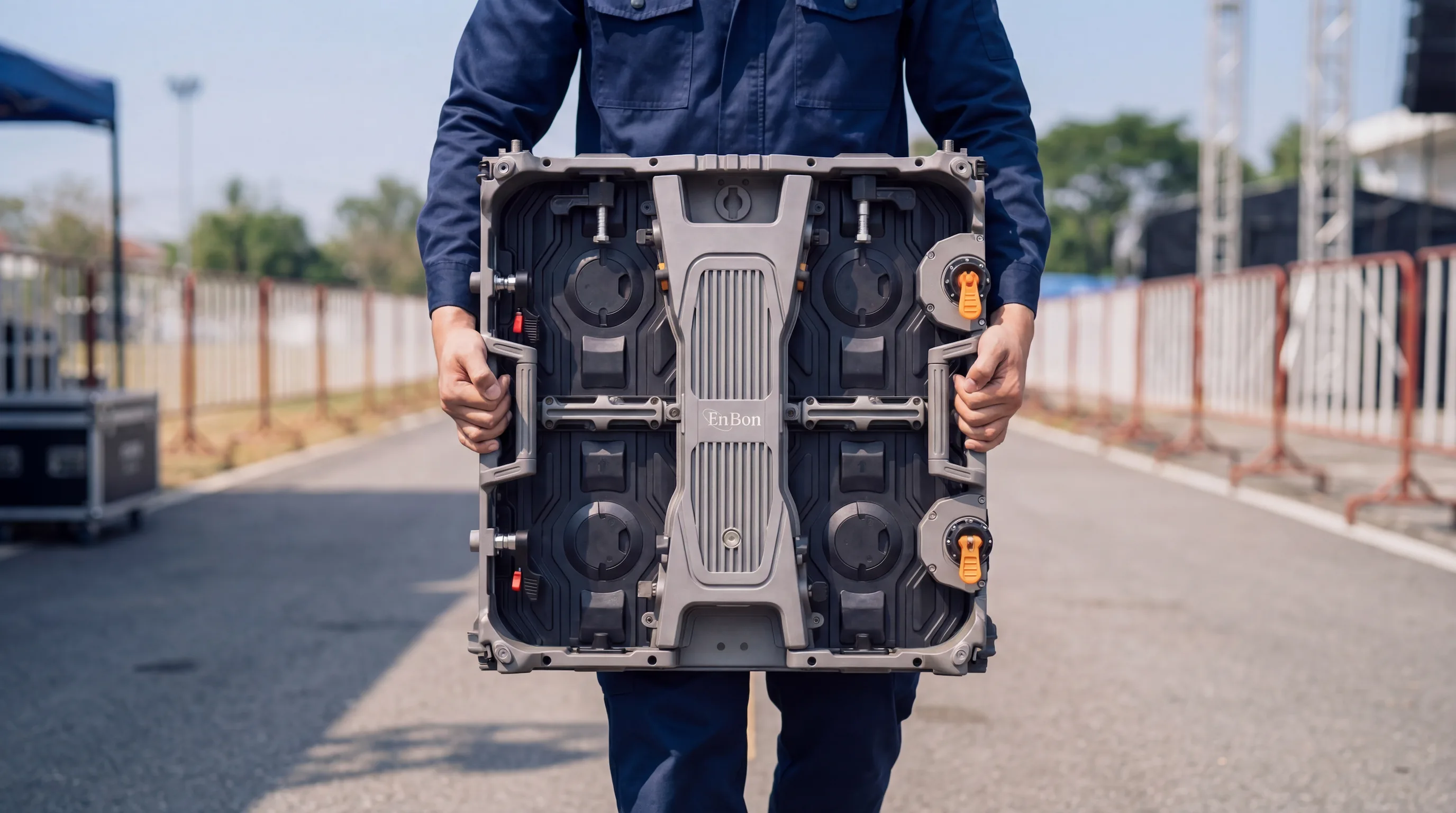

Ultra-Slim Design

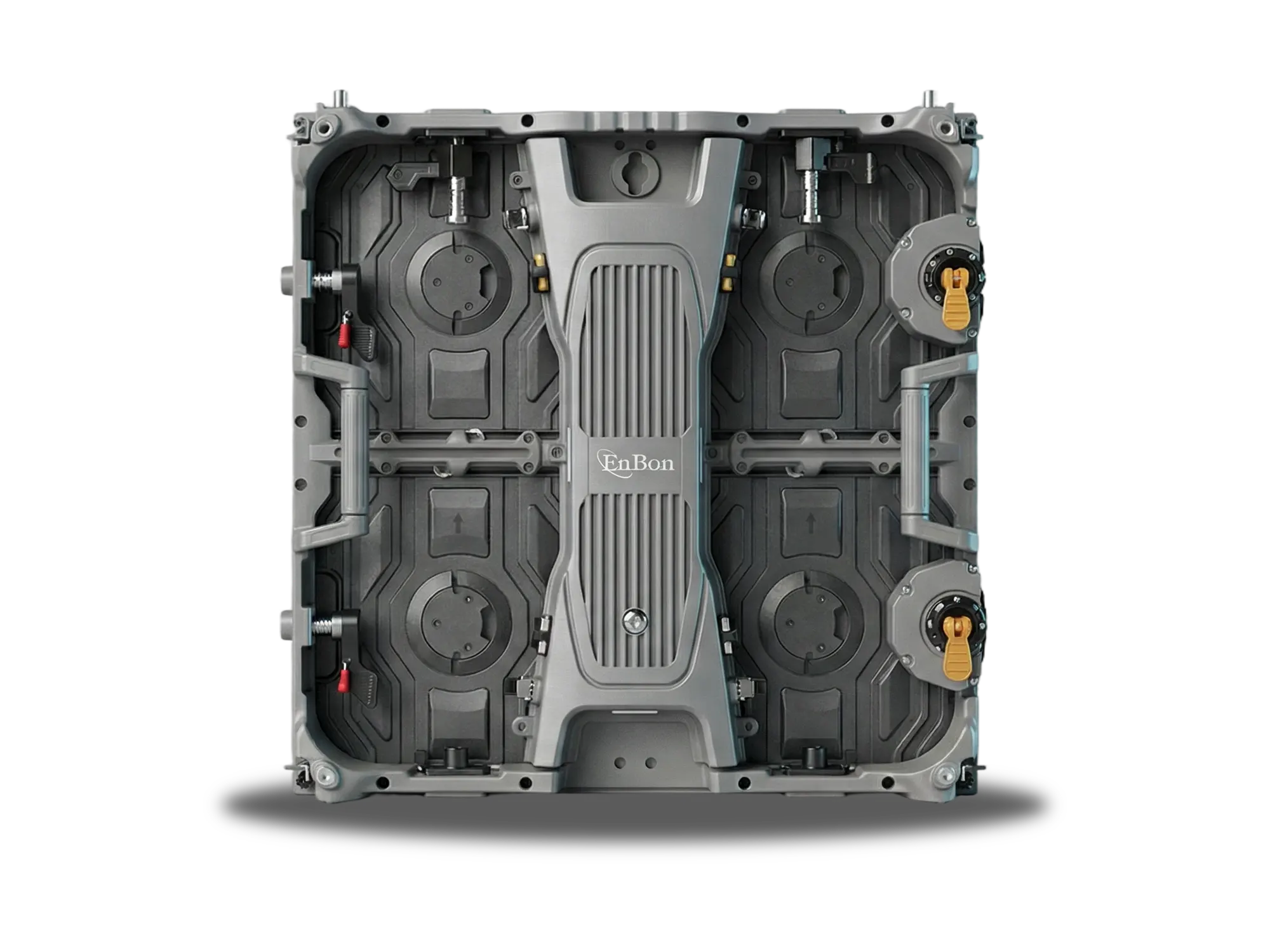

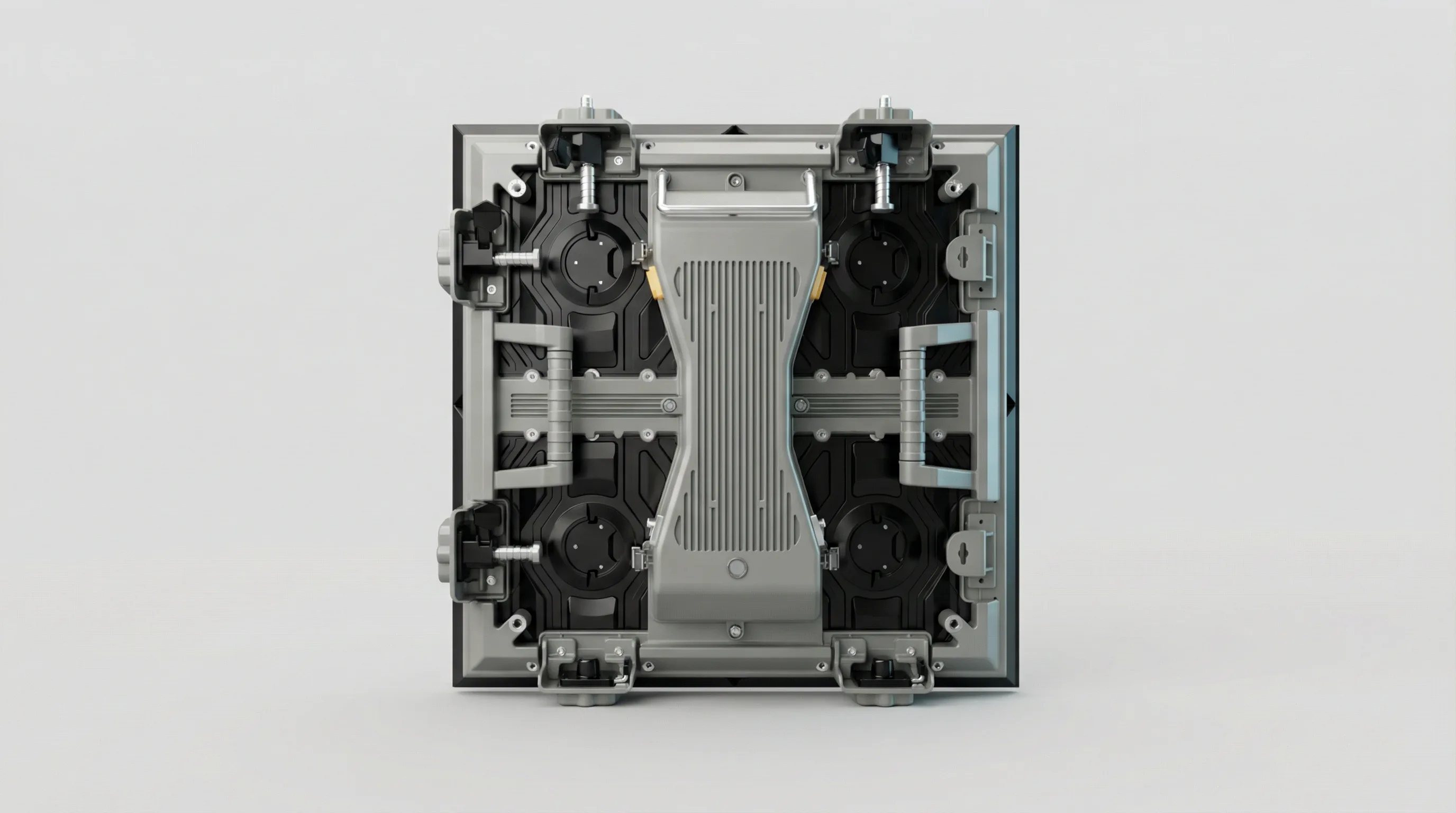

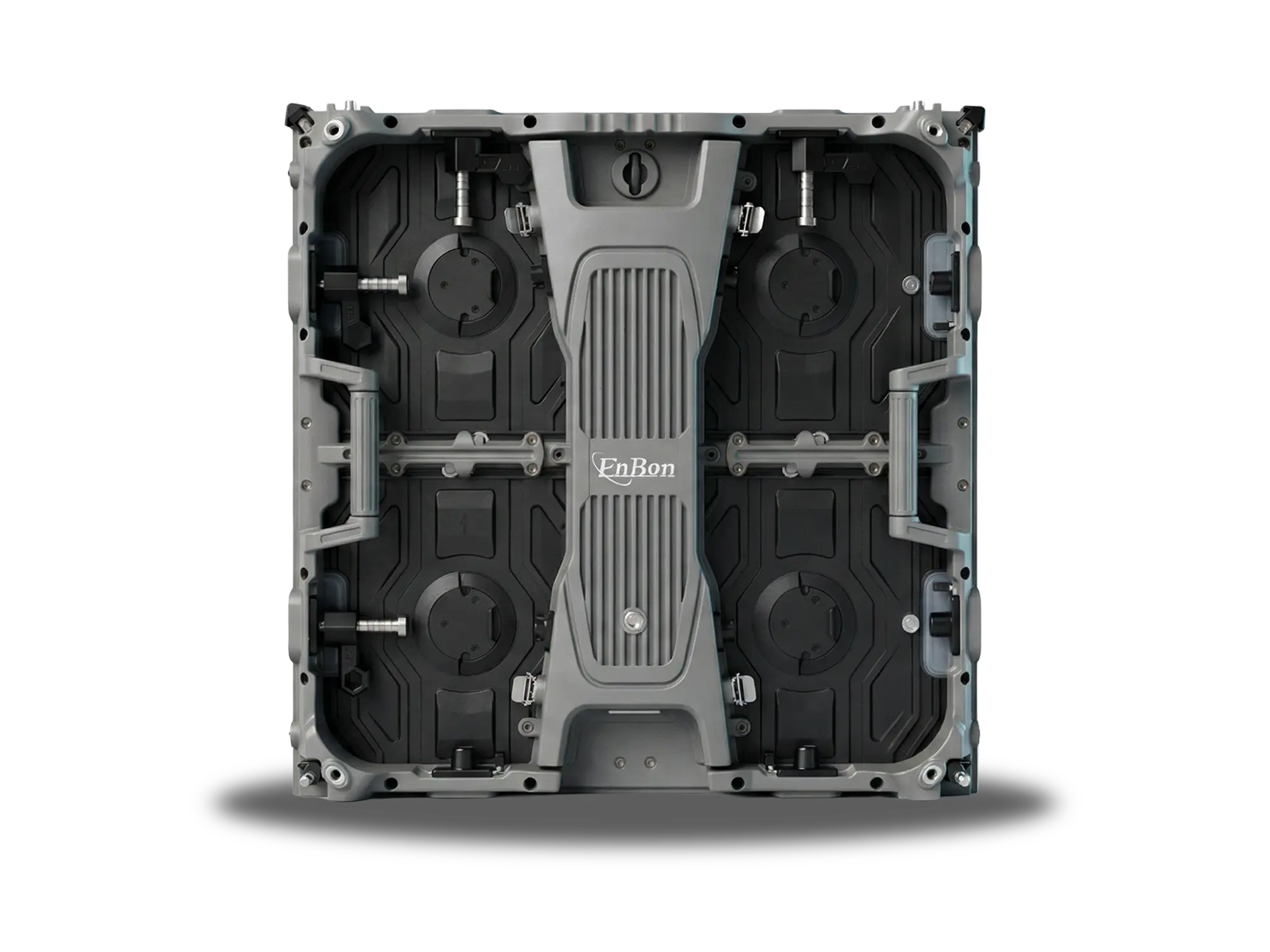

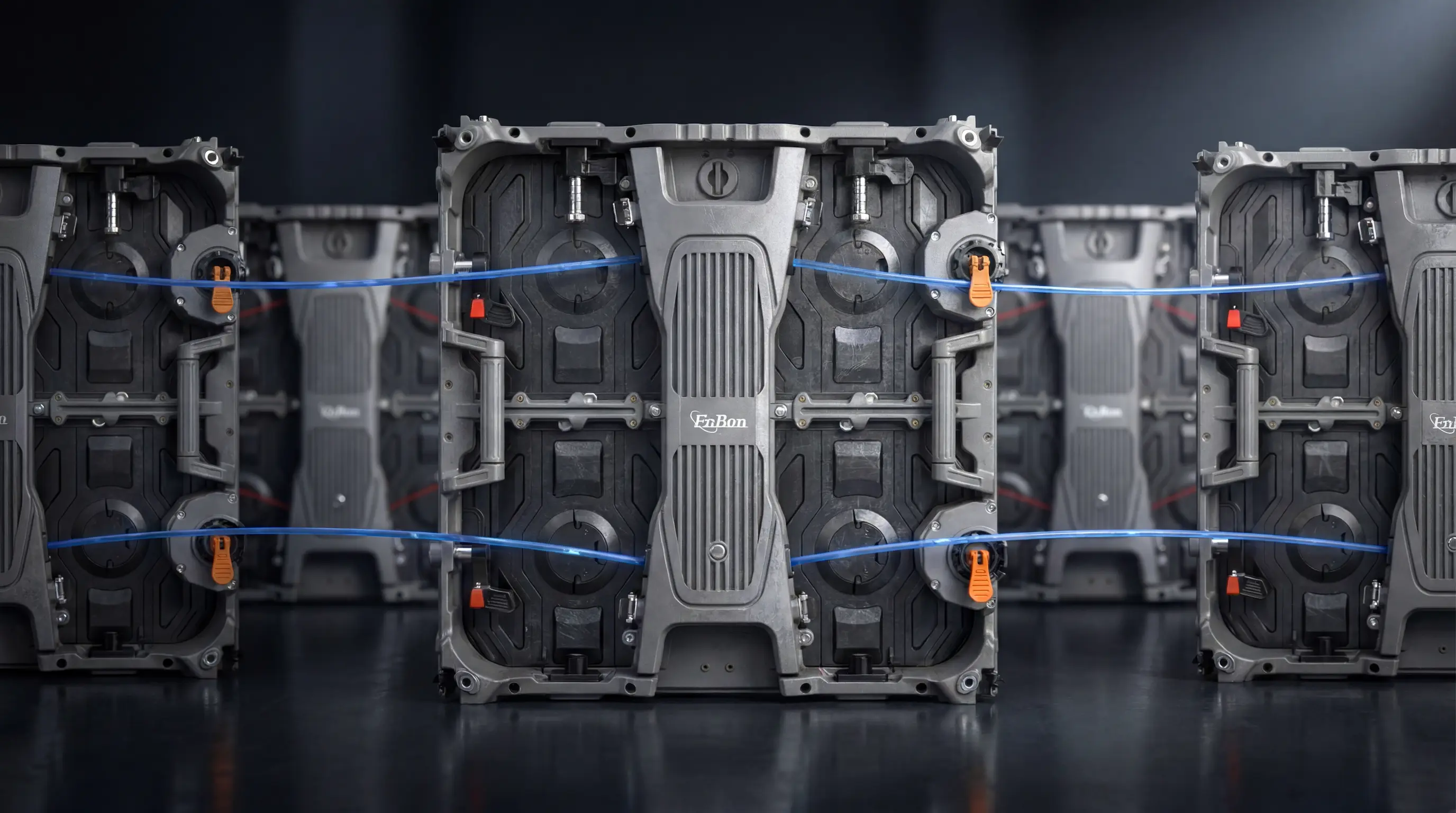

Cabinet Structure

R5 Plus Cabinet Structure Image

Corner Protection



Stack Structure Hole



Power Con



Module Handle



Side Handle



Signal Con

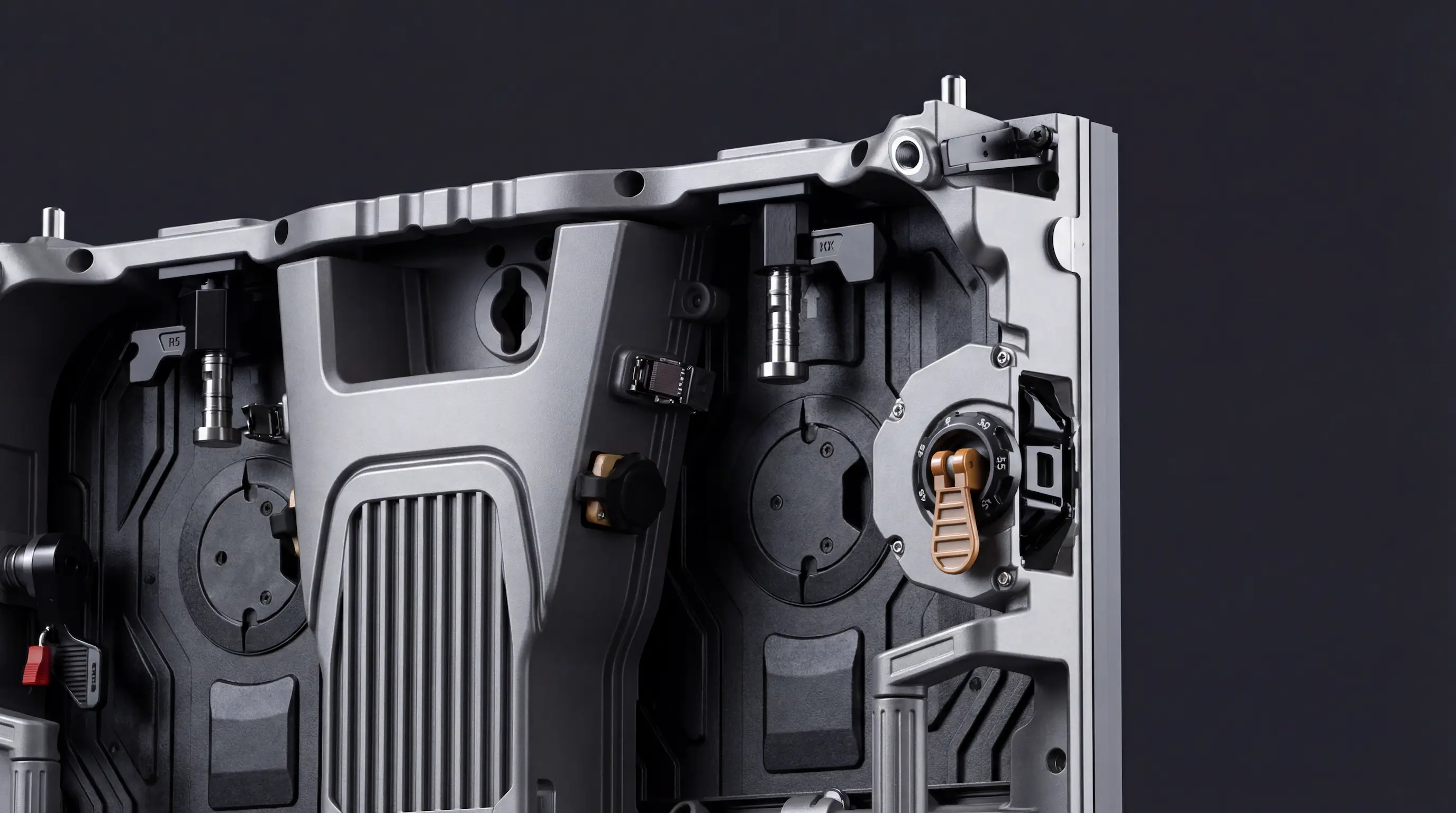

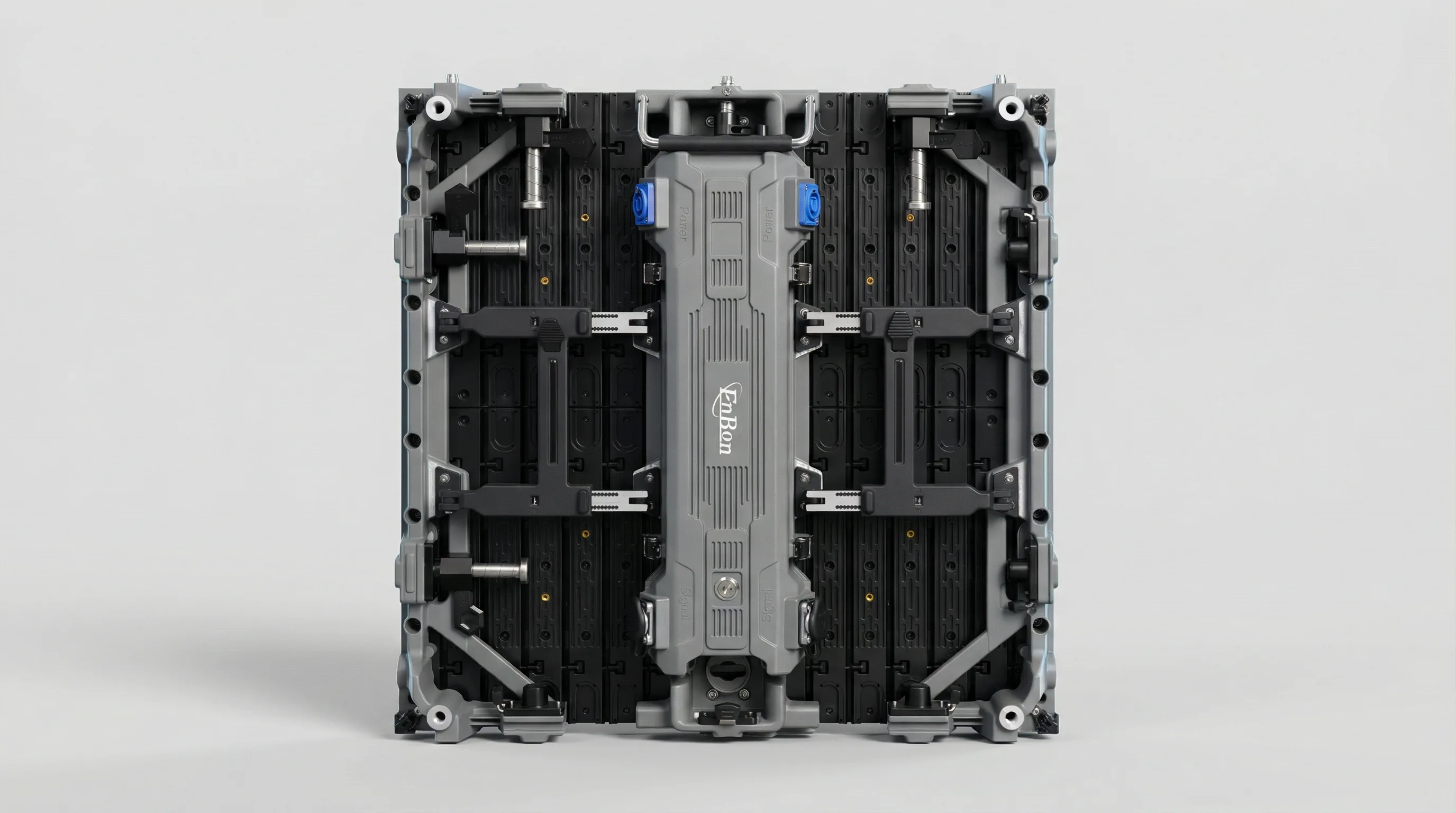

Fast Lock



Top Handle



Top Fast Lock

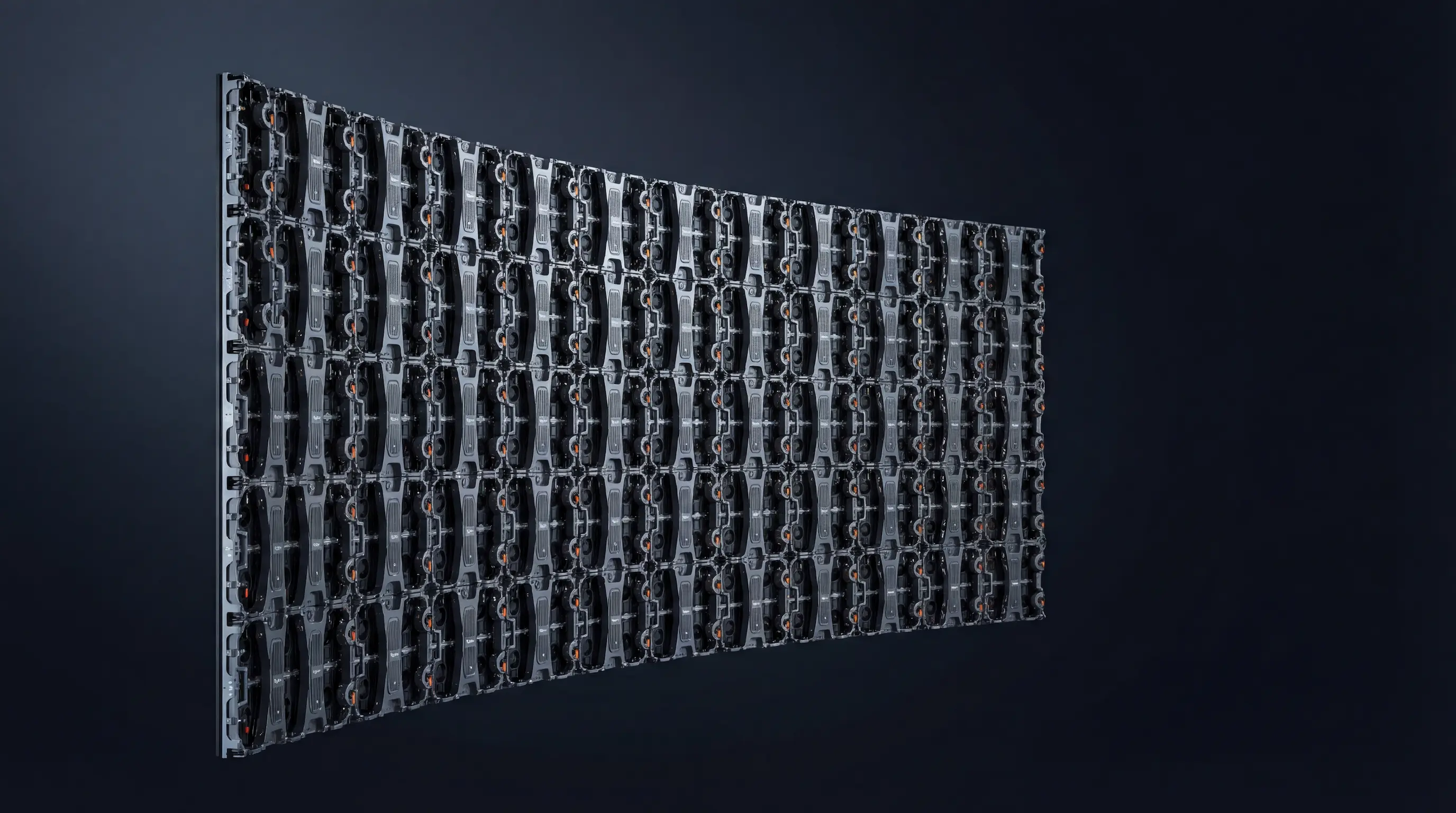

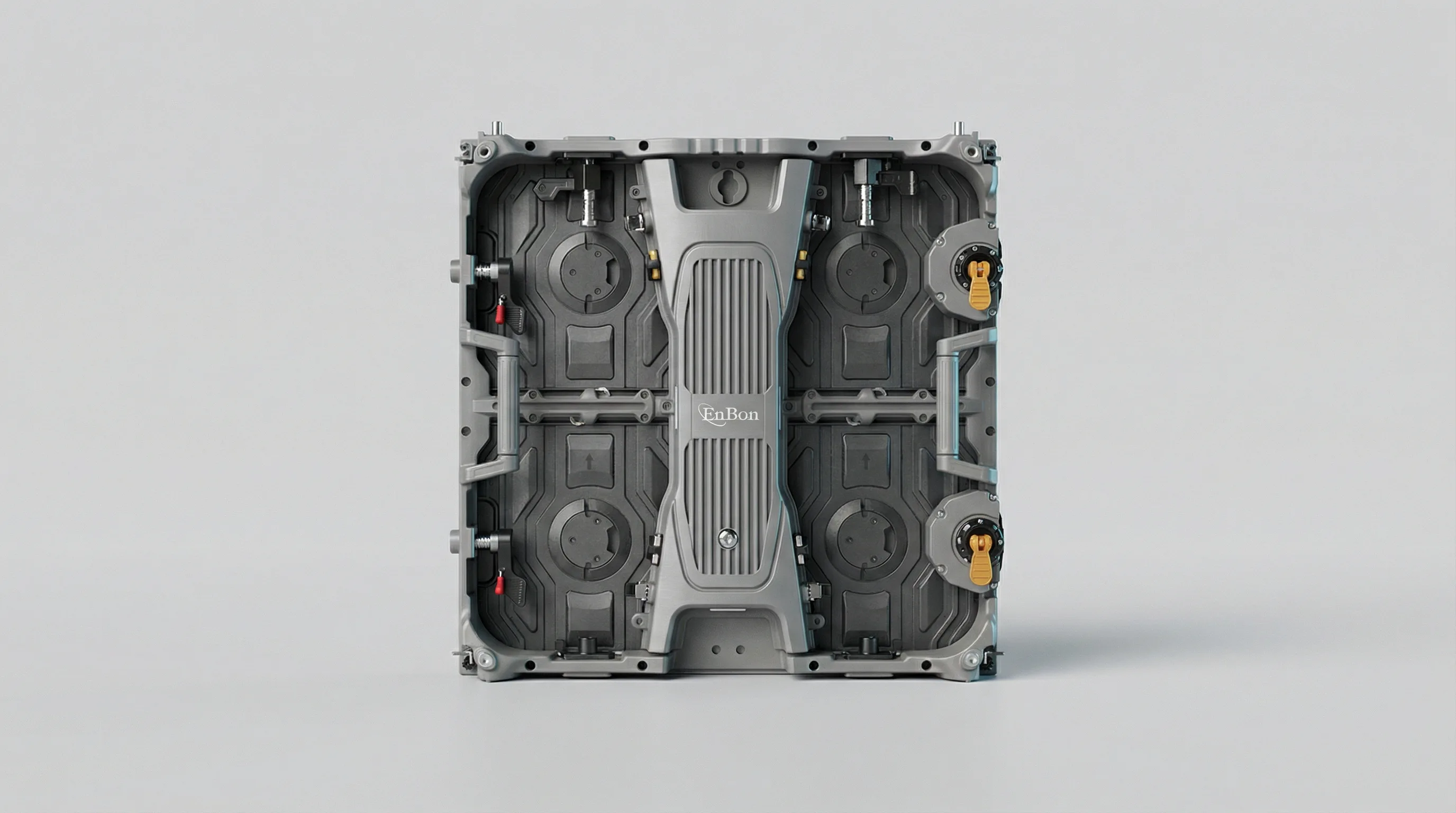

Curve Lock



LOGO Position



Indicator light



Anti-collission Device



Maintenance Method

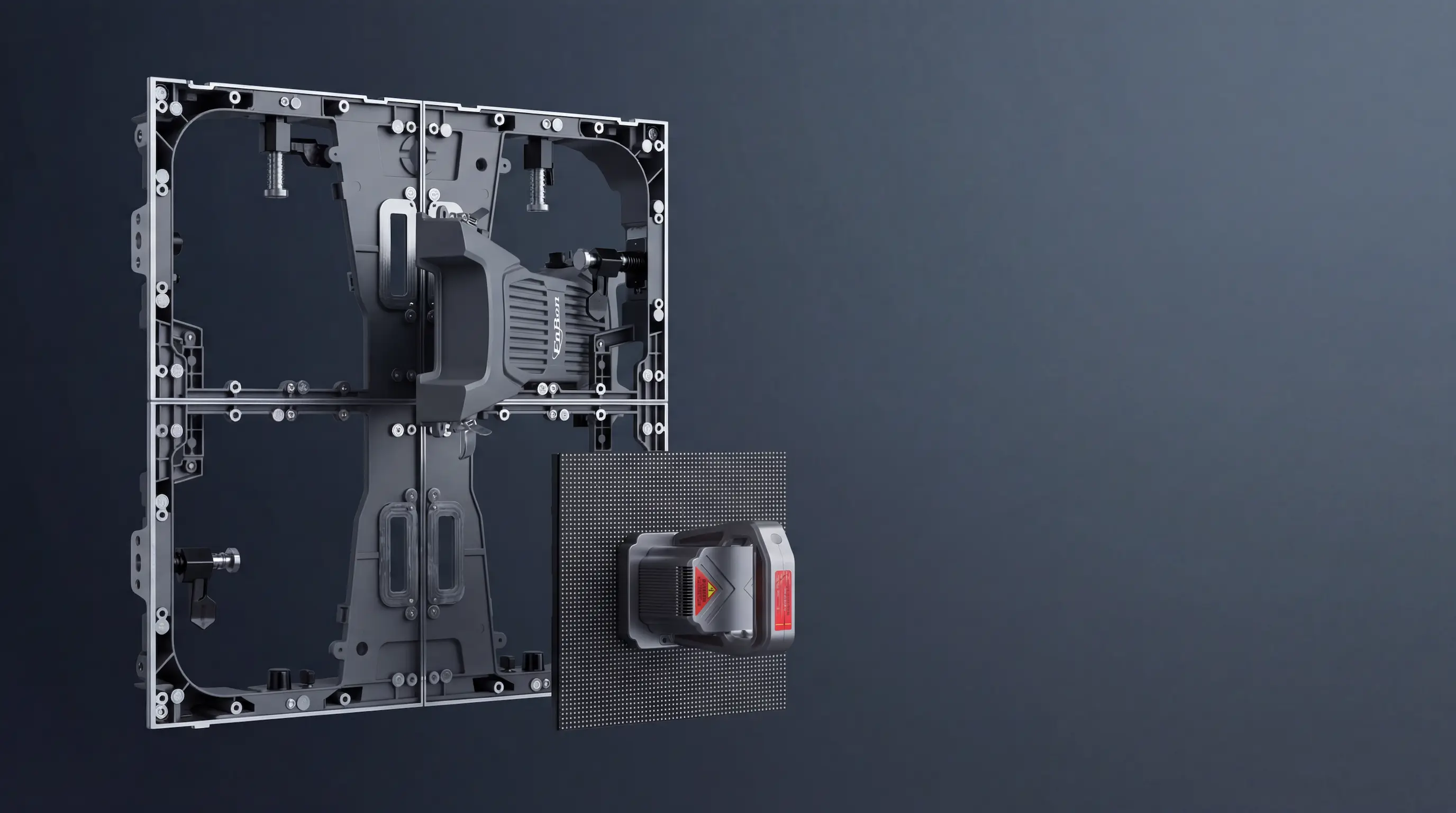

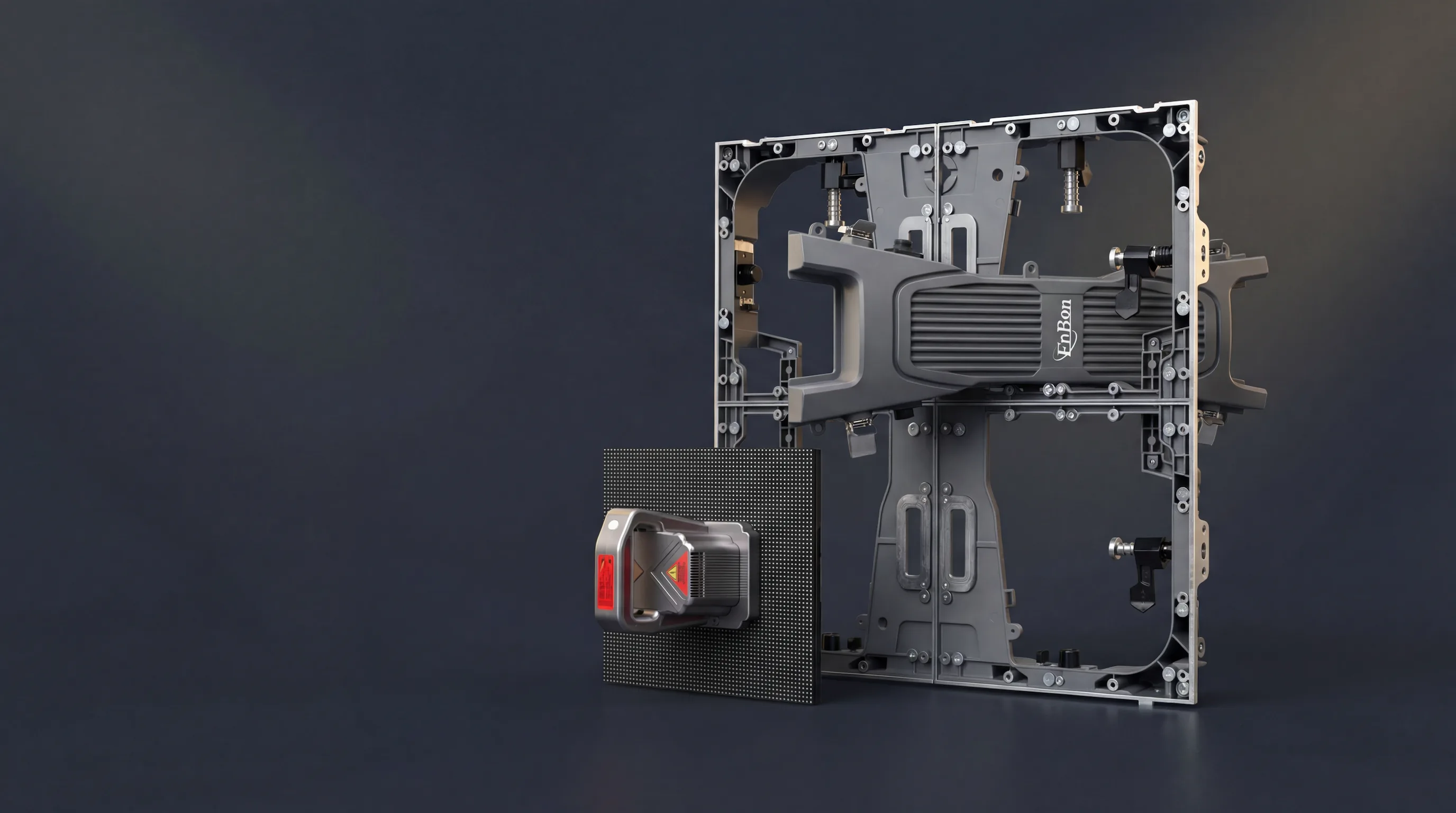

Front Maintenance And Rear Maintenance

R5 Plus Maintenance Method Image

Front Maintenance



Rear Maintenance



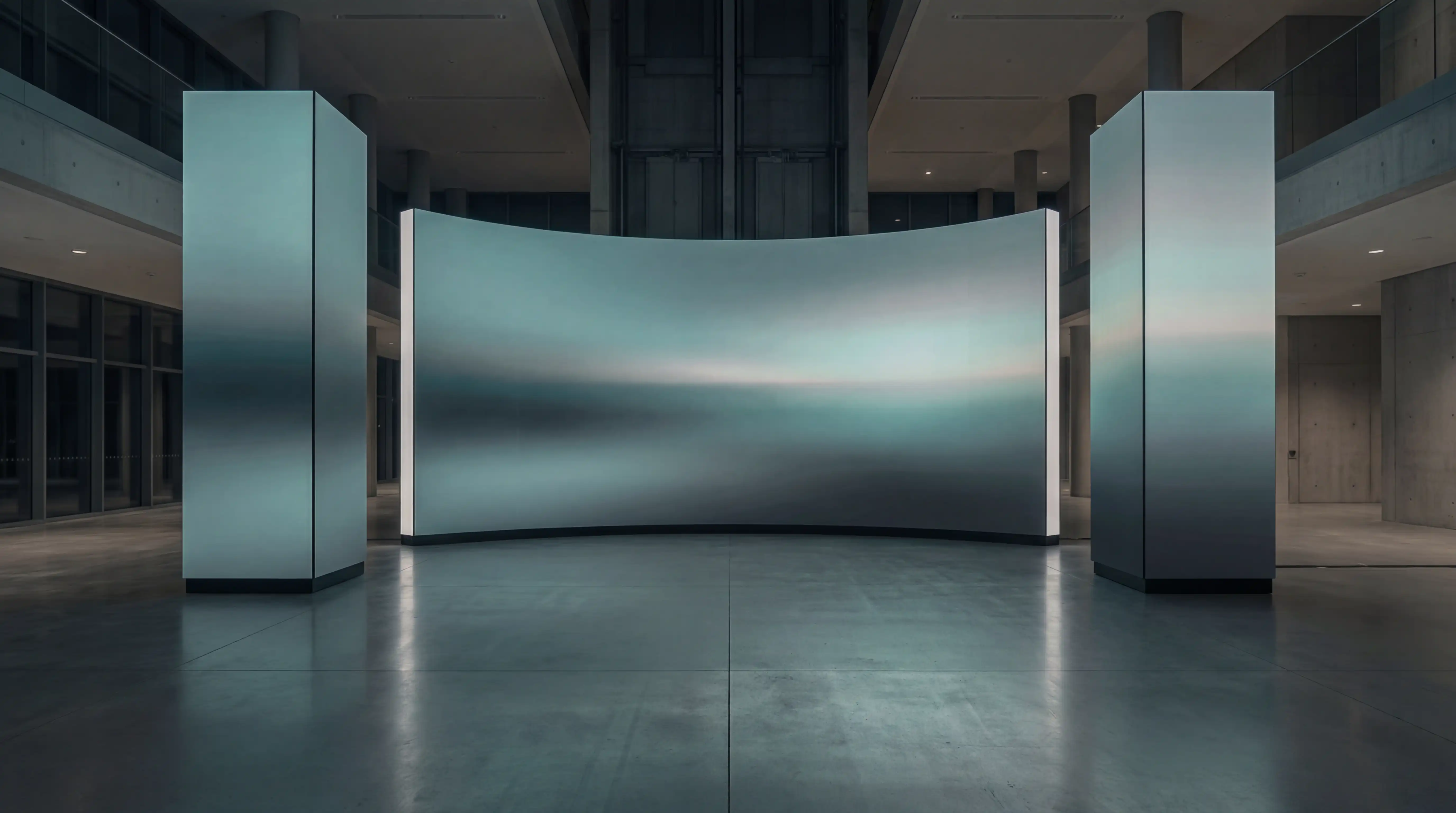

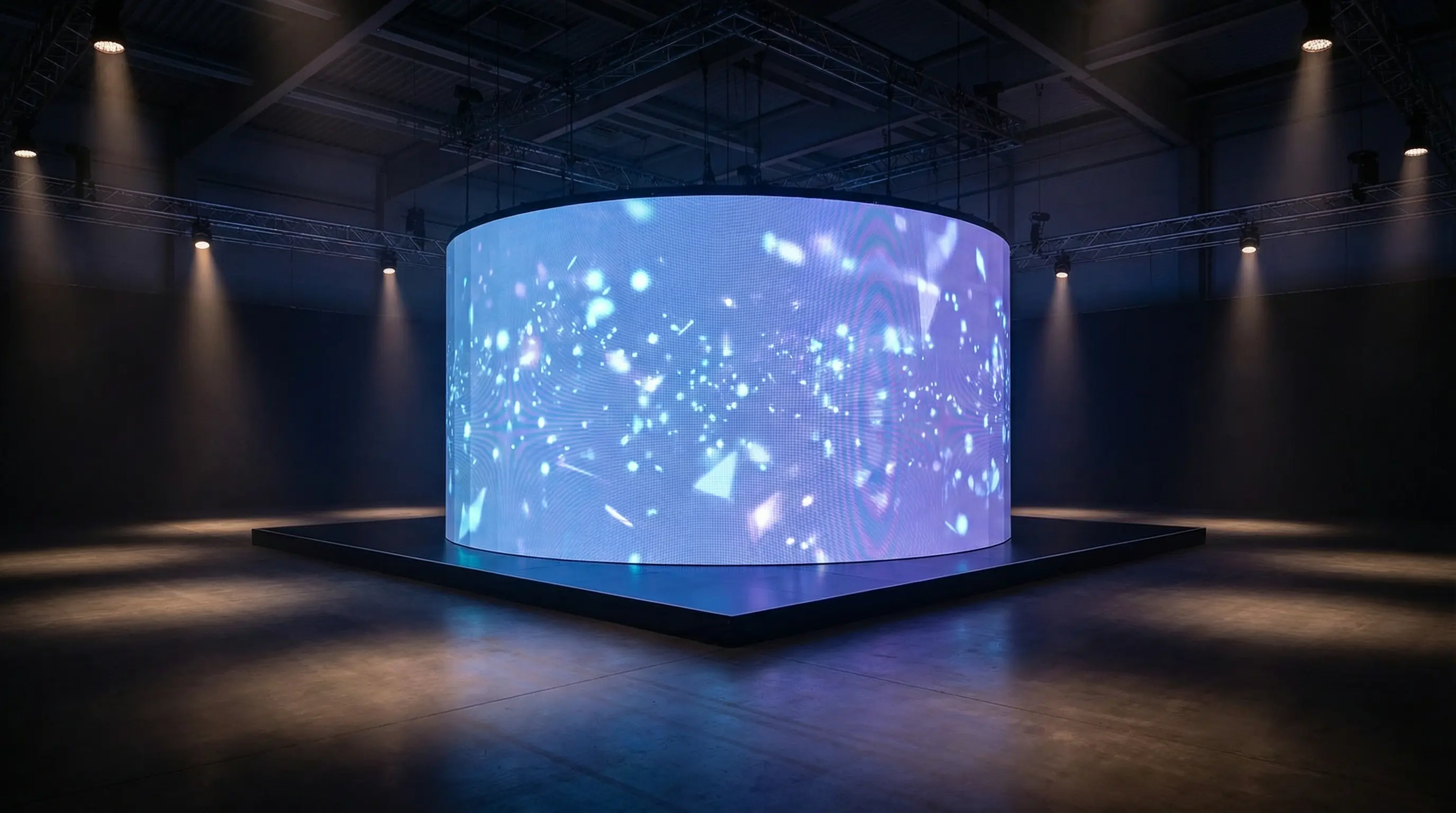

Different Sizes
Can Also Be Spliced

R5 Img

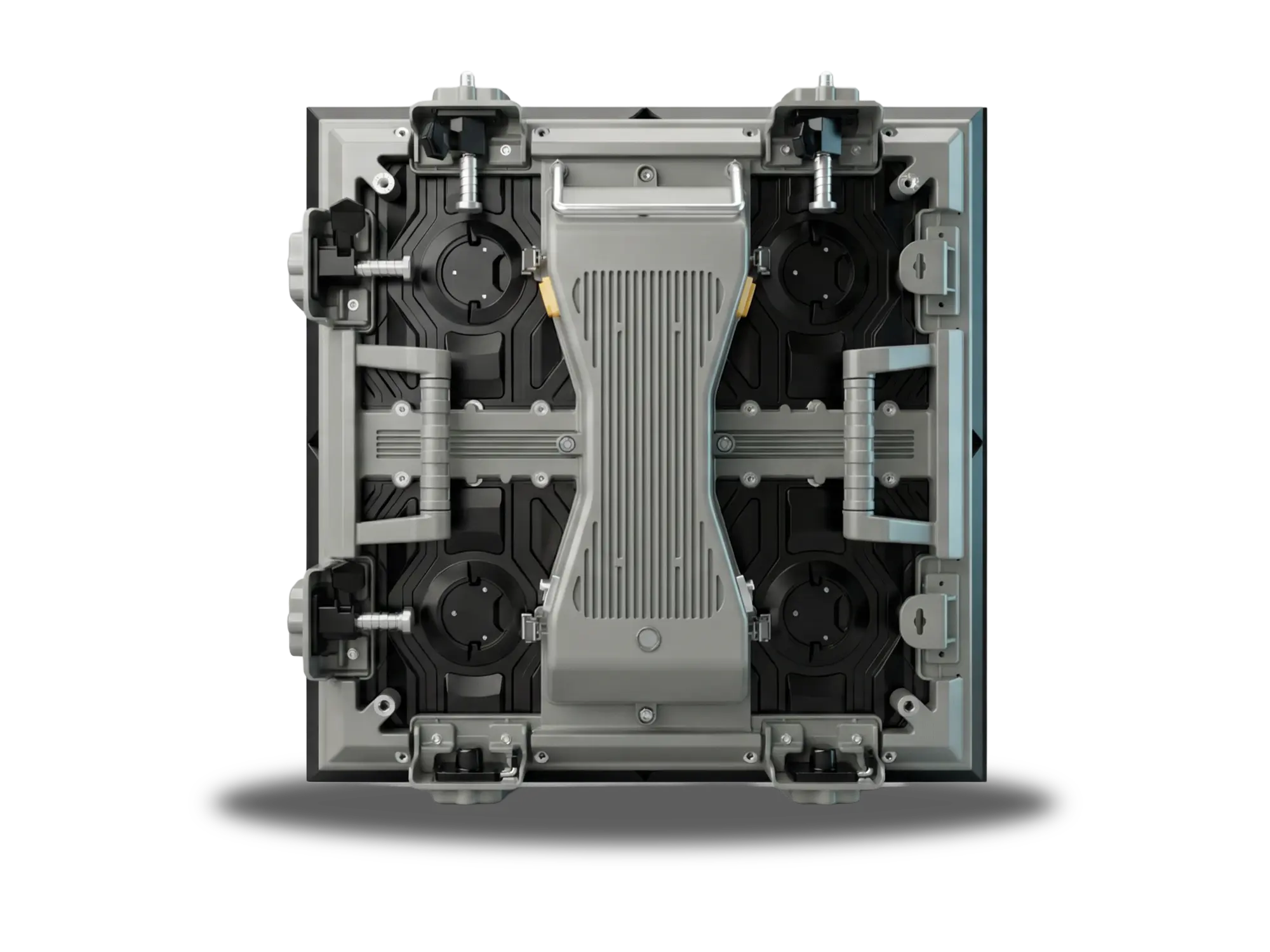

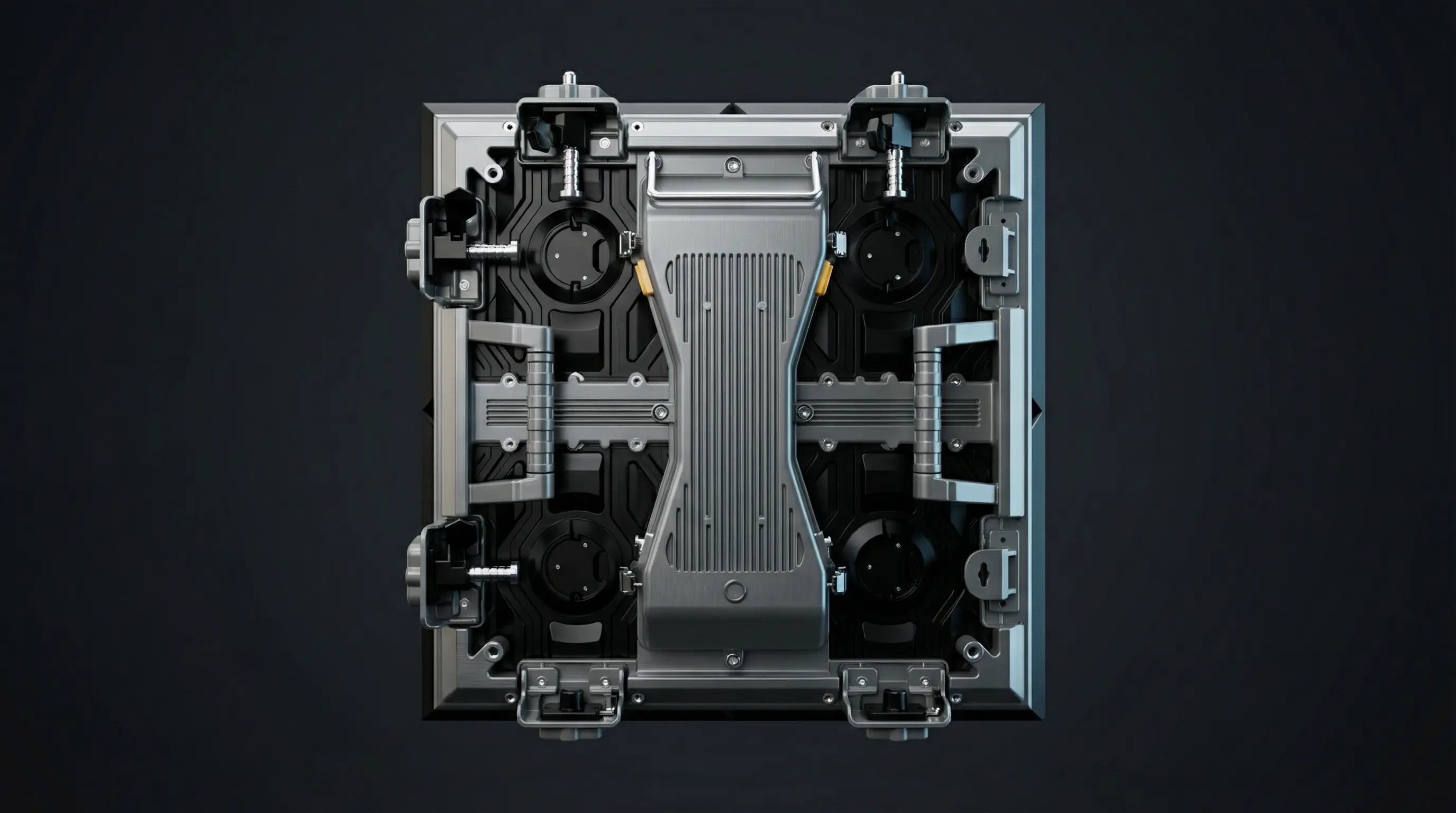

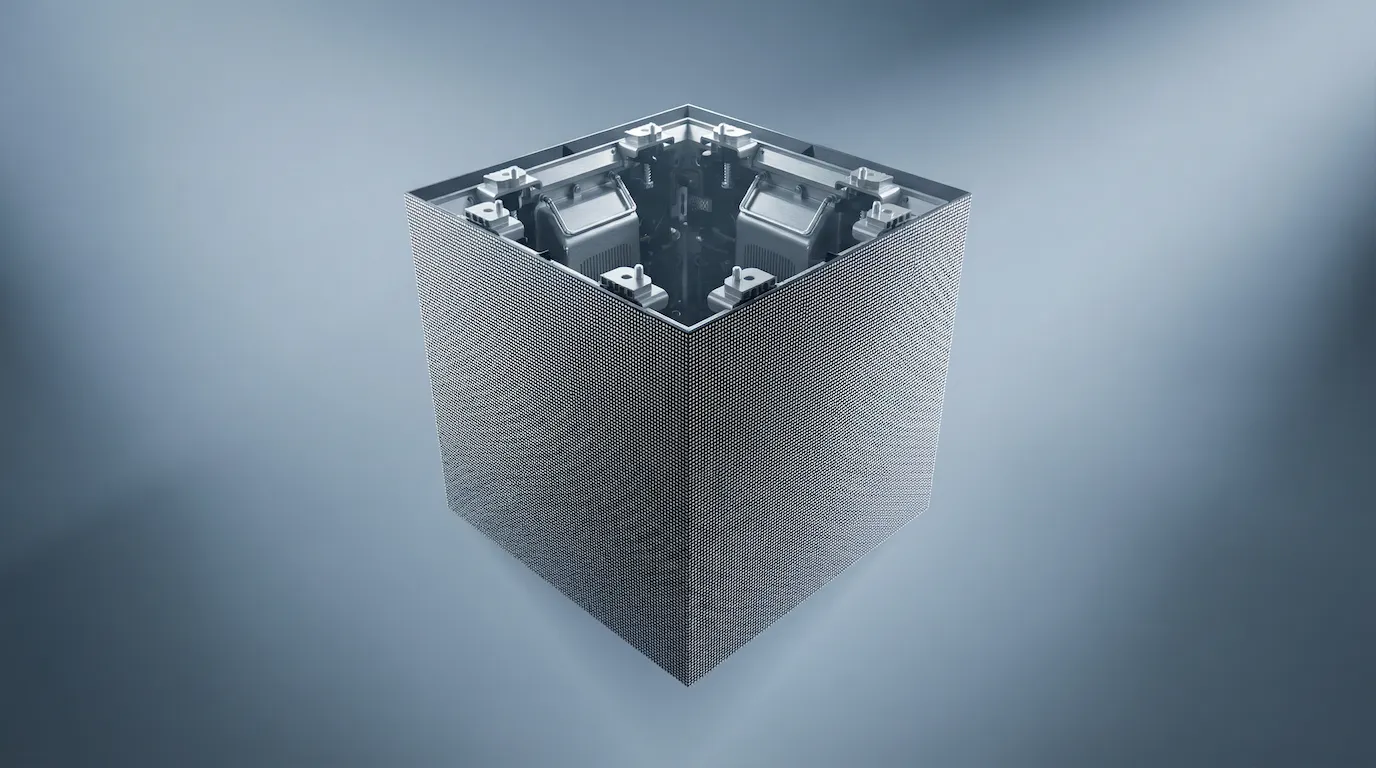

Corner
Protection
Design

R5 Plus Img

IP65
Waterproof

R5 Plus Img

High Resolution

R5 Plus Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

R5 Plus Grayscale Comparison Image


Low Grayscale



High Grayscale

Product Specification

Item Indoor
Pixel Pitch 1.56 1.95 2.604 2.976 3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD1515 SMD2121
Density(dots/m²) 409600 262144 147456 112896 65536
Brightness 650~1000 nits 650~1000 nits 650~1000 nits 650~1000 nits 700~1300 nits
IP rating IP45 IP45 IP45 IP45 IP45
Cabinet Material Die-casting Aluminum
Scan 40 scan 32 scan 32 scan 28 scan 16 scan
Module Pixel (dots) 160*160 128*128 96*96 84*84 64*64
Cabinet Pixel (dots) 320*320 256*256 192*192 168*168 128*128
Refresh Rate (Hz) 3840/7680 3840/7680 3840/7680 3840/7680 3840/7680
Cabinet Weight 7.5kg  7.5kg  7.5kg  7.5kg  7.5kg
Module Size (mm) 250*250 250*250 250*250 250*250 250*250
Cabinet Size (mm) 500*500*88/500*1000*88 500*500*88/500*1000*88 500*500*88/500*1000*88 500*500*88/500*1000*88 500*500*88/500*1000*88
Max Power 550 w/sqm 550 w/sqm 550 w/sqm 550 w/sqm 550 w/sqm
Average Power 185 w/sqm 185 w/sqm 185 w/sqm 185 w/sqm 185 w/sqm
Viewing Angle H140 (+70/-70) deg V140 (+70/-70) deg
Control Way Synchronous / Asynchronous
Gray Scale 16 bit
Operating System AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Environment Humidity:10% ~ 90% Temp:-20 ~ +65°C
Item Outdoor
Pixel Pitch 2.604 2.976 3.91
LED lamp SMD1415 SMD1415 SMD1921
Density(dots/m²) 147456 112896 65536
Brightness 3500~4500 nits 3500~4500 nits 3500~4000 nits
IP rating IP65 IP65 IP65
Cabinet Material Die-casting Aluminum
Scan 24 scan 21 scan 16 scan
Module Pixel (dots) 96*96 84*84 64*64
Cabinet Pixel (dots) 192*192 168*168 128*128
Refresh Rate (Hz) 3840/7680 3840/7680 3840/7680
Cabinet Weight 8kg  8kg  8kg
Module Size (mm) 250*250 250*250 250*250
Cabinet Size (mm) 500*500*88/500*1000*88 500*500*88/500*1000*88 500*500*88/500*1000*88
Max Power 680 w/sqm 680 w/sqm 680 w/sqm
Average Power 230 w/sqm 230 w/sqm 230 w/sqm
Viewing Angle H140 (+70/-70) deg V140 (+70/-70) deg
Control Way Synchronous / Asynchronous
Gray Scale 16 bit
Operating System AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Environment Humidity:10% ~ 90% Temp:-20 ~ +65°C


LED Module

Pixel Pitch Indoor:1.56,1.95,2.604,
2.976,3.91
Outdoor:2.604,2.976,
3.91
LED lamp Indoor: SMD1212/1515/2121
Outdoor: SMD1415/1921
Brightness Indoor: 650~1000 nits
Outdoor: 3500~4500 nits
Module pixel Indoor:160*160/128*128/96*96/
84*84/64*64(dots)
Outdoor: 96*96/84*84/64*64(dots)
Cabinet pixel Indoor: 320*320/256*256/
192*192/168*168/
128*128(dots)
Outdoor: 192*192/168*168/128*128(dots)

Appearance

Module size Indoor: 250*250mm
Outdoor:250*250mm
Cabinet size Indoor: 500*500*88mm
Outdoor: 500*500*88mm
Cabinet Weight Indoor: 7.5kg
Outdoor:8kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 550w/sqm
Outdoor:680w/sqm
Average Power Indoor: 185w/sqm
Outdoor: 230w/sqm


Waterproof grade

IP rating Indoor : IP45         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70)
deg V140(+70/-70)deg
Scan Indoor:40/32/32/28/16(scan)
Outdoor:24/21/16(scan)

Material density

Density Indoor:409600/262144/147456/
112896/65536dots/m²
Outdoor:147456/112896/65536dots/m²
Cabinet Material Die-casting Aluminum
