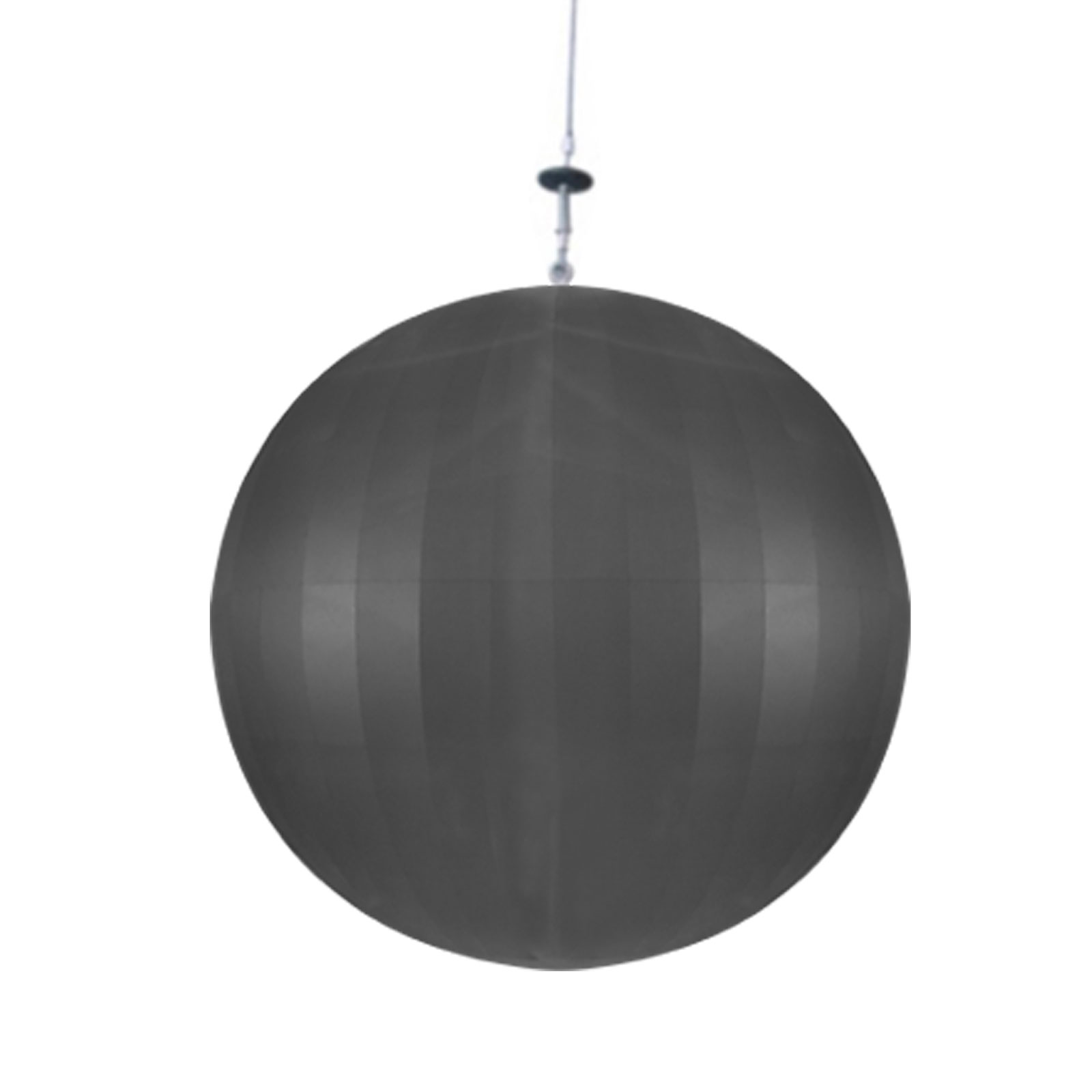

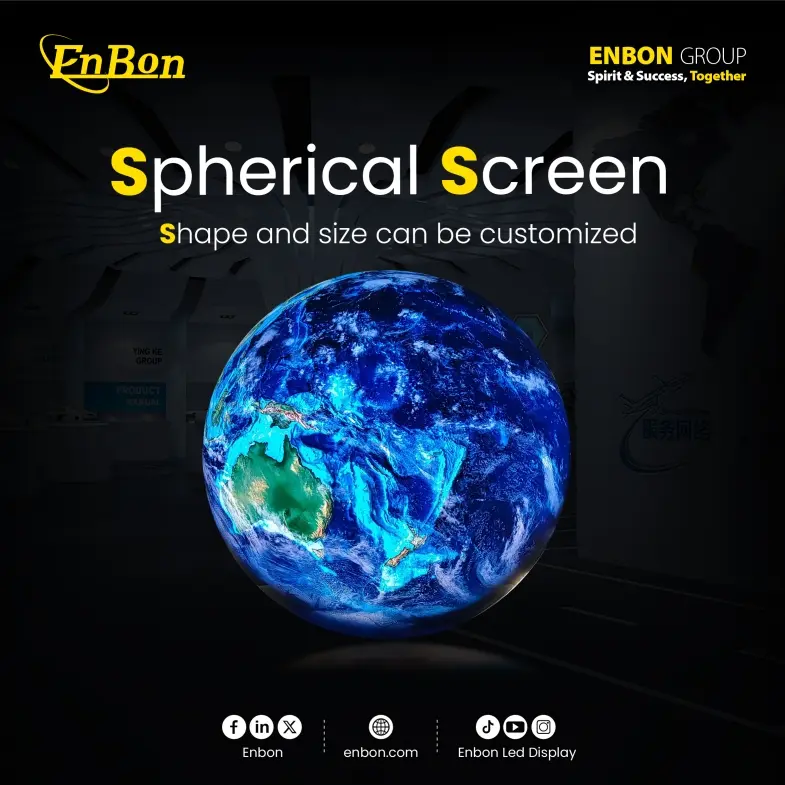

Enbon Spherical Screen Model Customizable & High-Performance LED Display with High Refresh Rate and Realistic Color

High Refresh Rate and Realistic Display : Delivers smooth visuals with vibrant colors and lifelike effects for an immersive experience. Customizable Shape and Size : Offers flexible design options, including a 6-meter diameter model, tailored to diverse n
  1. High Refresh Rate and Realistic Display: Delivers smooth visuals with vibrant colors and lifelike effects for an immersive experience.

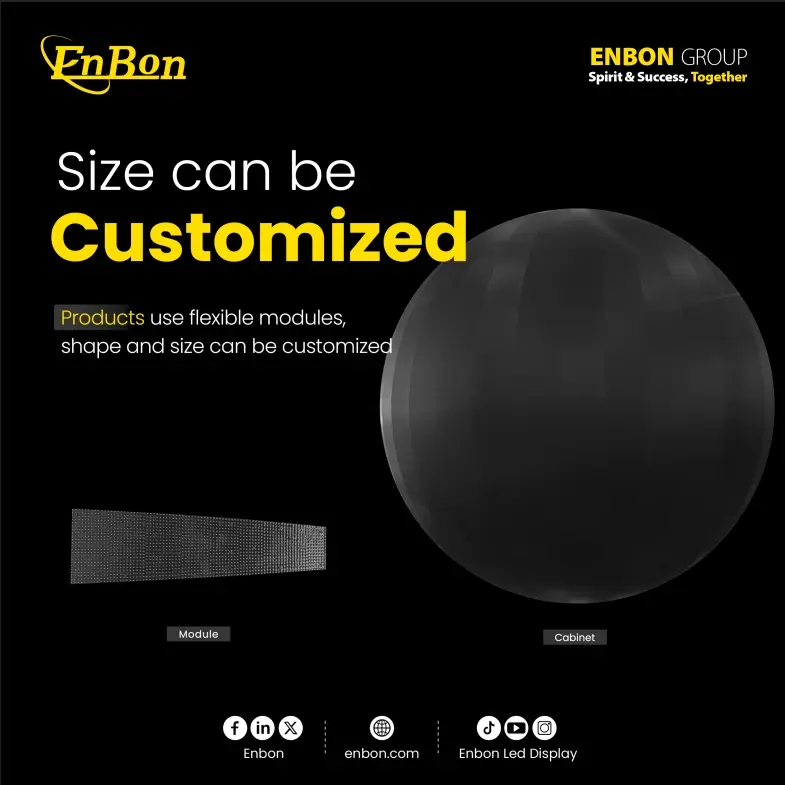

  2. Customizable Shape and Size: Offers flexible design options, including a 6-meter diameter model, tailored to diverse needs.
  3. Long Life and High Stability: Built for durability and reliable performance in various environments.

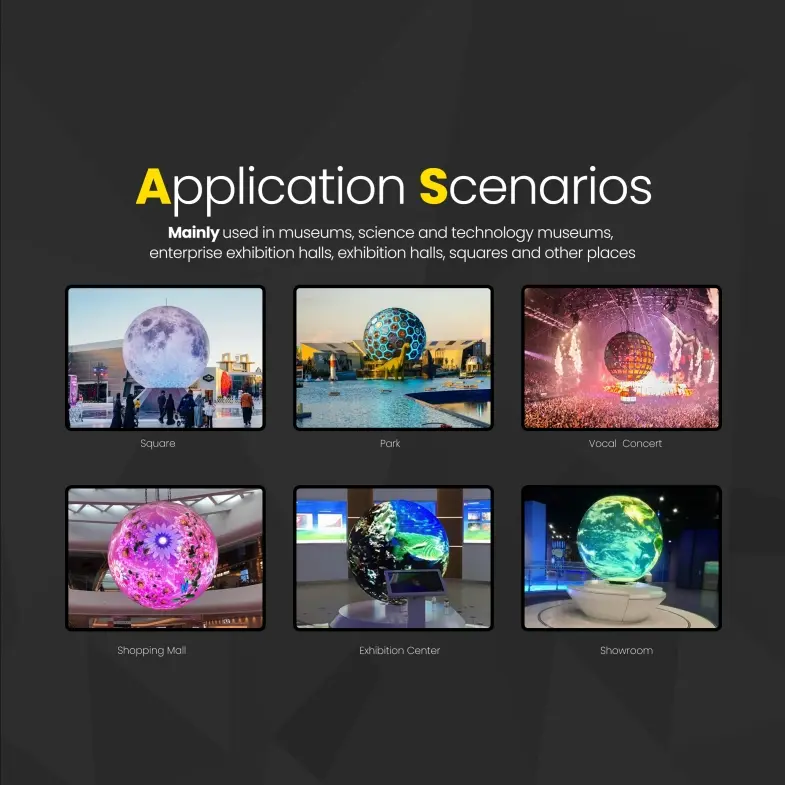

  4. Strong Visual Impact: Creates captivating displays ideal for museums, squares, and exhibition halls.
  5. Versatile Application Scenarios: Suitable for multiple settings, including parks, shopping malls, and concert venues.
High Refresh RateBright ColorHigh StabilityEnbon Sphere

Description

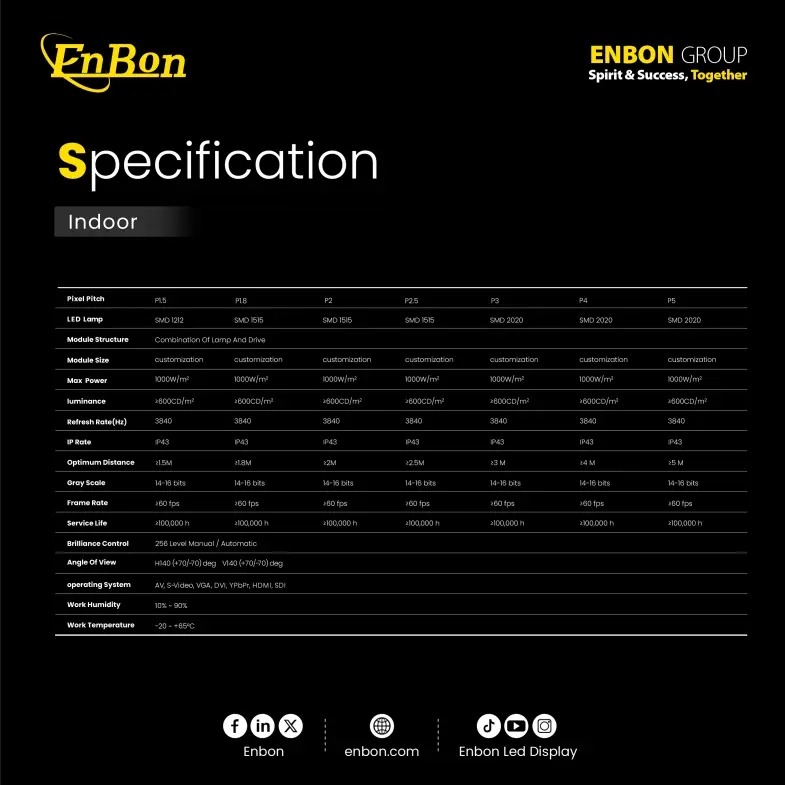

Product Specification

Item Indoor
Pixel Pitch P1.5 P1.8 P2 P2.5 P3 P4 P5
LED lamp SMD1212 SMD1515 SMD1515 SMD1515 SMD2020 SMD2020 SMD2020
Module Structure Combination Of Lamp And Drive
Module size Customization
Max Power 1000w/m2
luminance ≥600CD/m2
Refresh Rate(Hz) 3840
IP Rate IP43
Optimum Distance ≥1.5M ≥1.8M ≥2M ≥2.5M ≥3M ≥4M ≥5M
Gray Scale 14-16bits
Frame Rate ≥60 fps
Service Life ≥100,000h
Brilliance Control 256 Level Manual / Automatic
Angle of View H140(+70/-70)deg V140(+70/-70)deg
Operating System AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Humidity 10% ~ 90%
Work Temperature -20 ~+65°C

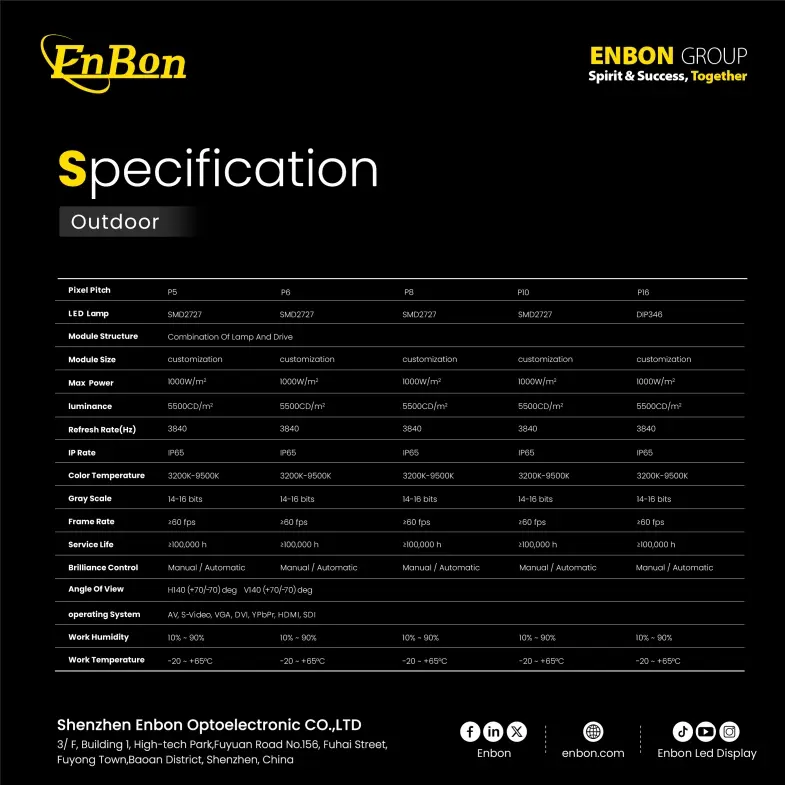

Item Outdoor
Pixel Pitch P5 P6 P8 P10 P16
LED lamp SMD2727 DIP346
Module Structure Combination Of Lamp And Drive
Module size Customization
Max Power 1000w/m2
luminance 5500CD/m2
Refresh Rate(Hz) 3840
IP Rate IP65
Color Temperature 3200K-9500K
Gray Scale 14-16bits
Frame Rate ≥60 fps
Service Life ≥100,000h
Brilliance Control Manual / Automatic
Angle of View H140(+70/-70)deg V140(+70/-70)deg
Operating System AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Humidity 10% ~ 90%
Work Temperature -20 ~+65°C

Sphere-Custom Model

Pixel Pitch Indoor: P1.5 / P1.8 / P2 / P2.5 / P3 / P4 / P5
Outdoor: P5 / P6 / P8 / P10 / P16
LED lamp Indoor: SMD1212 / SMD1515 / SMD2020
Outdoor: SMD2727 / DIP346
Brightness Indoor: ≥600CD/m²
Outdoor: 5500CD/m²
Module Structure Combination Of Lamp And Drive
Module size Customization
Max Power 1000w/m²
Refresh Rate 3840Hz
IP Rating Indoor: IP43
Outdoor: IP65
Color Temperature Outdoor: 3200K - 9500K
Optimum Viewing Distance Indoor: ≥1.5m ~ ≥5m (based on pixel pitch)
Gray Scale 14-16bits
Frame Rate ≥60 fps
Service Life ≥100,000 hours
Brilliance Control Indoor: 256 Level Manual / Automatic
Outdoor: Manual / Automatic
Viewing Angle H140°(+70/-70) V140°(+70/-70)
Operating System AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Working Environment Humidity: 10% ~ 90%
Temperature: -20°C ~ +65°C
