Enbon R5 Series

Professional Rental LED Display,
Built for Stage. Built for Speed.

View complete parameters > Get a Quote >

One System. Multiple Builds.

Straight / Curve / 90° / Flexible — all in one R5 platform.

R5 Series Straight LED Display Solution - Precision flat configuration for standard stage builds

R5 Series Curve LED Display Solution - Adjustable arc locking system for smooth curved displays

R5 Series 90 Degree LED Display Solution - True right-angle connection for corners and cube structures

R5 Series Flexible LED Display Solution - Extended angle flexibility for cylindrical and wave formations

Straight Solution

Curve Solution

90° Design Solution

Flexible Solution

Precision flat configuration for standard stage builds.
Stable alignment. Fast assembly. Reliable rental performance.

Adjustable arc locking system for smooth curved displays.
Seamless curvature. Precise angle control. Clean visual flow.

True right-angle connection for corners and cube structures.
Sharp geometry. Structural integrity. Professional stage design.

Extended angle flexibility for cylindrical and wave formations.
Adaptive builds. Creative freedom. Engineered stability.

Lighter. Thinner. Faster.

Designed to reduce setup time and transport cost.

• Slim ≈88mm cabinet profile
• Rental-ready aluminum structure

Maintenance, simplified.

Full front & rear service access.
Faster replacement. Less downtime.

Designed to adapt.

Straight. Curve. 90°. Flexible.
One system. Multiple builds.

Shape the stage.

From standard walls to creative stage designs.

Smooth in every frame.

High refresh rate and grayscale
for professional live visuals.

Ready for the outdoors.

P65 protection.
Rain or shine.

Built for the stage.

Engineered for professionals.

Spatial Freedom, Seamless Geometry

Redefining stage construction with precision locking and modular design.

R5 Series Precision Locking System - Fast and secure assembly for Straight, curved and 90 degree configurations

R5 Series Full Front and Rear Service Access - Designed for rental efficiency with faster maintenance and less downtime

R5 Series Lightweight Aluminum Cabinet Design - Easier to handle on site with reduced load for transport and installation

Locking System

Service Access

Lightweight Design

Precision locking system for fast and secure assembly.
Straight, curved and 90° configurations supported.

Full front and rear access, designed for rental efficiency.
Faster maintenance. Less downtime.

Lightweight aluminum cabinet, easier to handle on site. Reduced load for transport and installation.

True 90° Corner.Pure Geometry.

Engineered for seamless right-angle builds. Clean edges. Precise alignment. Stable structure.

R5 Series True 90 Degree Corner LED Display - Pure geometry with clean edges, precise alignment and stable structure

R5 Series - Structural precision with dedicated 90 degree locking system for true corner connections

Designed for Structural Precision

Dedicated 90° locking system for precise corner connections.

90°

True Corner Connection

0Gap

Edge-to-edge Alignment

R5 Series - Suspended cube LED display with 360 degree viewing for esports arenas and large-scale events

Suspended. Structured. Spectacular.

A massive cube LED display with precise 90° alignment.

360°

Full Viewing Impact

4 Sides

Seamless Display

R5 Series LED Display - When the stage lights up with professional reliability

When the stage lights up, the world falls silent.

Reliability is the most important experience on-site.

Built for Different Production Workflows

R5 Series - Touring and rental LED display for fast setup and frequent teardown

R5 Series - Fixed installation LED display for stable long-term operation

R5 Series - Creative stage design with flexible configurations for curves and corners

Touring & Rental

Fixed Installation

Creative Stage Design

Designed for fast setup, frequent teardown and long-distance transport.

Stable structure and reliable performance for long-term operation.

Flexible configurations for curves, corners and custom stage layouts.

A stable core for stage systems.

Engineered for repeated rental use and consistent live performance.

Power Core

Stable Power System

Built for long runs and demanding venues.

Signal Core

Control & Signal Architecture

Compatible with mainstream professional controllers.

Visual Core

High Refresh & Grayscale

Clean motion and consistent image output.

R5 Series - System-grade stability for repeatable rental delivery — System-grade stability

A rental-ready core built for repeatable delivery.

R5 Series - Control and signal architecture for professional compatibility — Control & signal

Flexible, compatible, and engineered for consistency.

R5 Series - Built for repeated rental use with fast service and less downtime — Built for repeated use

Fast service, less downtime, more confidence on site.

R5 Series LED Display - Consistent performance across venues, weather and touring schedules

Wherever the stage is, R5 performs.

Designed for consistent output across venues, weather and touring schedules.

Clarity in Every Frame

Brightness, color, and motion for a clean, consistent visual experience.

R5 Series LED Display - Visual performance with clean and vivid output for professional stages

R5 Series LED Display - High brightness performance for clear visibility in indoor and outdoor environments

Bright Where It Matters

Clear visibility across indoor and outdoor environments.

4500nits

Peak Brightness

IP65

Outdoor Ready

R5 Series LED Display - Smooth motion with high refresh rate and refined grayscale detail

Smooth. Vivid. Consistent.

High refresh and precise grayscale for fluid motion and stable output.

7680Hz

Refresh Rate

16bit

Grayscale

140°

Viewing Angle

RGB

Color Depth

Flexible Builds. Go Beyond the Curve.

R5 Series - Cylinder structure with minimum 1.2m diameter for smooth circular LED displays

R5 Series - Wave formation with adjustable angle up to 45 degrees for fluid stage designs

R5 Series - S-curve layout with single-cabinet flexibility for dynamic configurations

Cylinder Structure

Wave Formation

S-Curve Layout

Form smooth cylindrical displays with a minimum diameter of 1.2m. True circular builds with seamless alignment and structural stability.

Adjustable angle range up to ±45° per cabinet. Create fluid wave-shaped stage designs with precise curvature control.

Single-cabinet flexibility enables dynamic S-shape configurations. Expand creative stage geometry without compromising structure.

Ready for real outdoor stages.

Designed to withstand rain, dust and changing environments—so your show stays on.

R5 Series - Outdoor waterproof performance with IP65 protection for reliable rain and dust resistance — Outdoor-ready protection

Engineered sealing and structural design for reliable performance in outdoor conditions.

Thinner Panels. Lower Cost.

"6 in 1 flight case saves space & transport cost"

R5 Series

Modular Rental LED Platform

Straight / Curve / 90° / Flexible Adjustable Angle ±45° IP65 Protection Up to 7680Hz Refresh

Technical Specifications

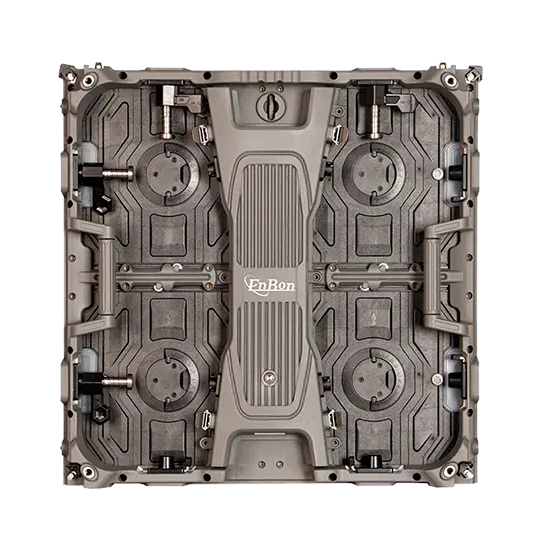

R5 Series Straight Solution - 500x500mm cabinet with precision locking system

Cabinet Size

500 × 500mm

Cabinet Thickness

88mm

Cabinet Weight

7.5kg

Brightness

600-1000nits

Refresh Rate

≥7680Hz

Pixel Pitch

1.56/1.95/2.604
2.976/3.91

Protection Level

IP45

Viewing Angle

140°(H) / 120°(V)

Maintenance

Front & Rear

Cabinet Material

Die-casting Aluminum

Power (Max)

800W/m²

Power (Avg)

300W/m²

Scan

40/32/28/16

Gray Scale

16bit

Module Size

250*250

R5 Series Curve Solution - Adjustable arc locking for smooth curved displays

Cabinet Size

500 × 500mm

Cabinet Thickness

88mm

Cabinet Weight

7.6kg

Brightness

600-1200nits

Refresh Rate

≥7680Hz

Pixel Pitch

1.95/2.604/2.976
3.91

Protection Level

IP45

Viewing Angle

140°(H) / 120°(V)

Maintenance

Front & Rear

Cabinet Material

Die-casting Aluminum

Power (Max)

800W/m²

Power (Avg)

300W/m²

Scan

40/32/28/16

Gray Scale

16bit

Module Size

250*250

R5 Series 90 Degree Corner Solution - True right-angle connection for cube structures

Cabinet Size

500 × 500mm

Cabinet Thickness

88mm

Cabinet Weight

7.9kg

Brightness

3500~4500nits

Refresh Rate

≥7680Hz

Pixel Pitch

P2.604/2.976/3.91

Protection Level

IP65

Viewing Angle

140°(H) / 120°(V)

Maintenance

Front & Rear

Cabinet Material

Die-casting Aluminum

Power (Max)

680W/m²

Power (Avg)

230W/m²

Scan

24/21/16

Gray Scale

16bit

Module Size

250*250

R5 Series Flexible Solution - Flexible LED cabinet for cylinder, wave and S-curve formations

Cabinet Size

500 × 500mm

Cabinet Thickness

88mm

Cabinet Weight

7.6kg

Brightness

3500~4500nits

Refresh Rate

≥7680Hz

Pixel Pitch

2.604/2.976/3.91

Protection Level

IP65

Viewing Angle

140°(H) / 120°(V)

Maintenance

Front & Rear

Cabinet Material

Die-casting Aluminum

Power (Max)

680W/m²

Power (Avg)

230W/m²

Scan

24/21/16

Gray Scale

16bit

Module Size

250*250

Download Technical Specification

Download Spec Sheet

View other rental products

Technical Support

Contact Sales Team

Some product images and application scenarios are digitally rendered for illustration purposes only.
Specifications may vary depending on pixel pitch and configuration.
Brightness, refresh rate and power consumption data are measured under laboratory testing conditions.
Flexible angle range (±45°) applies to dedicated flexible lock versions only.
Minimum cylinder diameter of 1.2m depends on configuration and installation method.
Transport capacity and loading quantity may vary based on truck size and regional regulations.
Actual installation effects may differ due to venue conditions and structural requirements.
Product specifications are subject to change without prior notice.
