| Item | Indoor | ||||||
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25 | 1.538 | 1.667 | 1.86 | 2.5 | 3 | |
| LED lamp | SMD1010 | SMD1212 | SMD1212/1515 | SMD1515 | SMD2020 | SMD2020 | |
| Density(dots/m2) | 695556 | 401111 | 360000 | 284444 | 160000 | 111111 | |
| Brightness | ≤500nits | ≤600nits | ≤800nits | ≤800nits | ≤900nits | ≤900nits | |
| IP rating | IP45 | ||||||

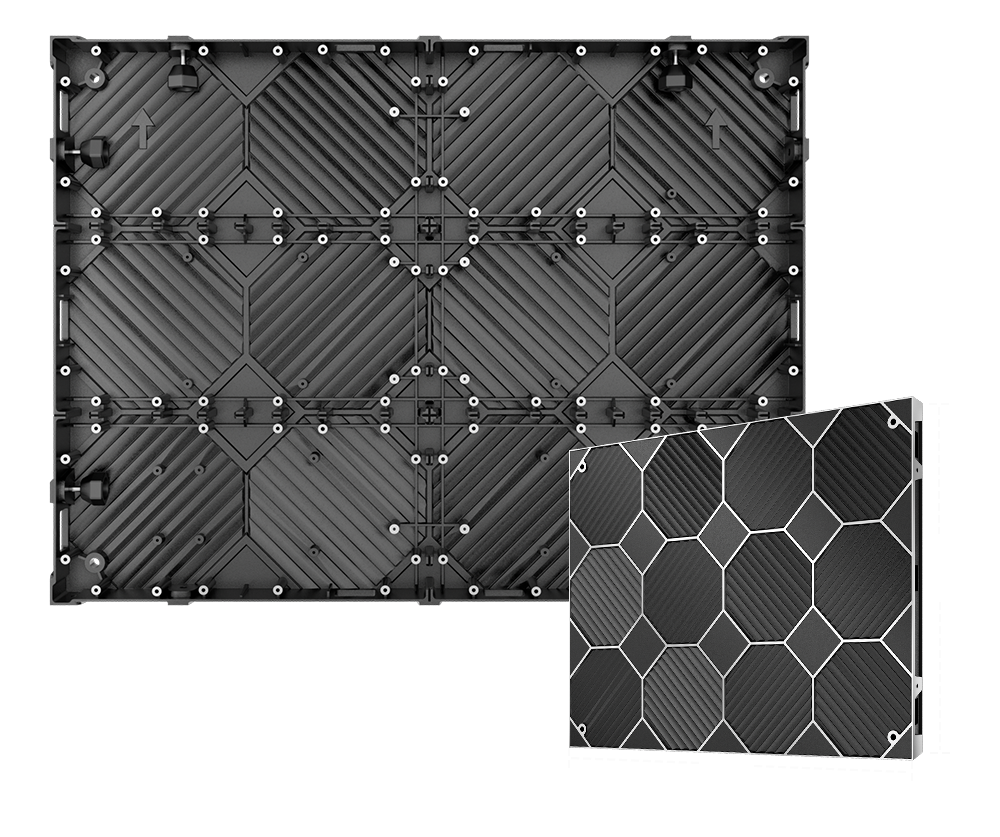

| Cabinet Materiel | Die-casting Aluminum | ||||||
| Scan | 64scan | 52scan | 45scan | 43scan | 32scan | 26scan | |
| Module weight | 0.3kg | 0.3kg | 0.3kg | 0.3kg | 0.3kg | 0.3kg | |
| Cabinet Weight | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg | |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | |
| Cabinet size | 640*480*57 | 640*480*57mm | 640*480*57mm | 640*480*57mm | 640*480*57mm | 640*480*57mm | |
| Module pixel | 256*128dots | 208*104dots | 192*96dots | 172*86dots | 128*64dots | 104*52dots | |
| Cabinet pixel | 512*384dots | 416*312dots | 384*288dots | 344*258dots | 256*192dots | 208*156dots | |
| Max Power | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | |
| Average Power | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||||
| Control way | synchronous/asynchronous | ||||||
| Gray Scale | 16bit | ||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||||
| Work humidity | 10% ~ 90% | ||||||
| Work temperature | ﹣20 ~﹢65℃ | ||||||

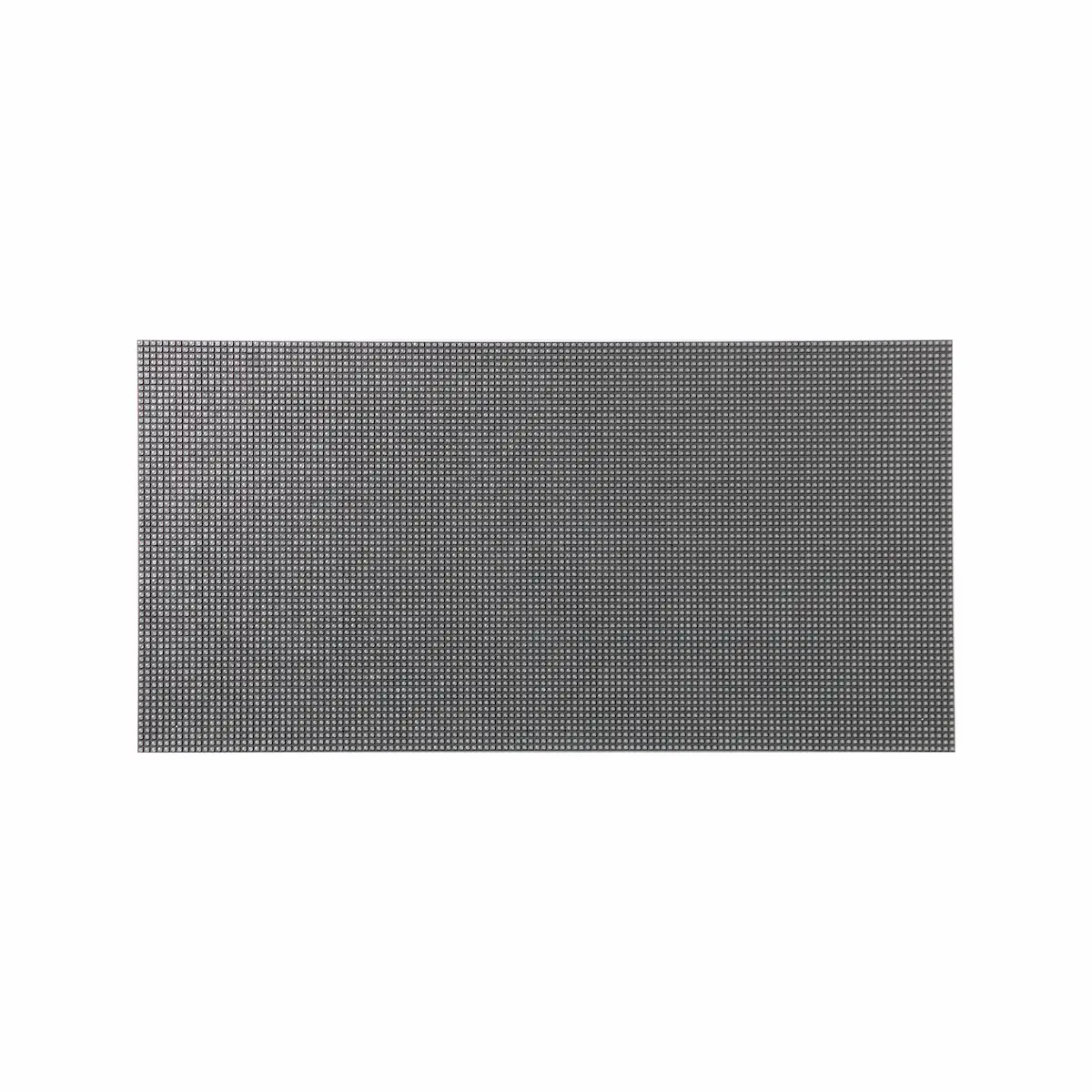

LED Module |
|

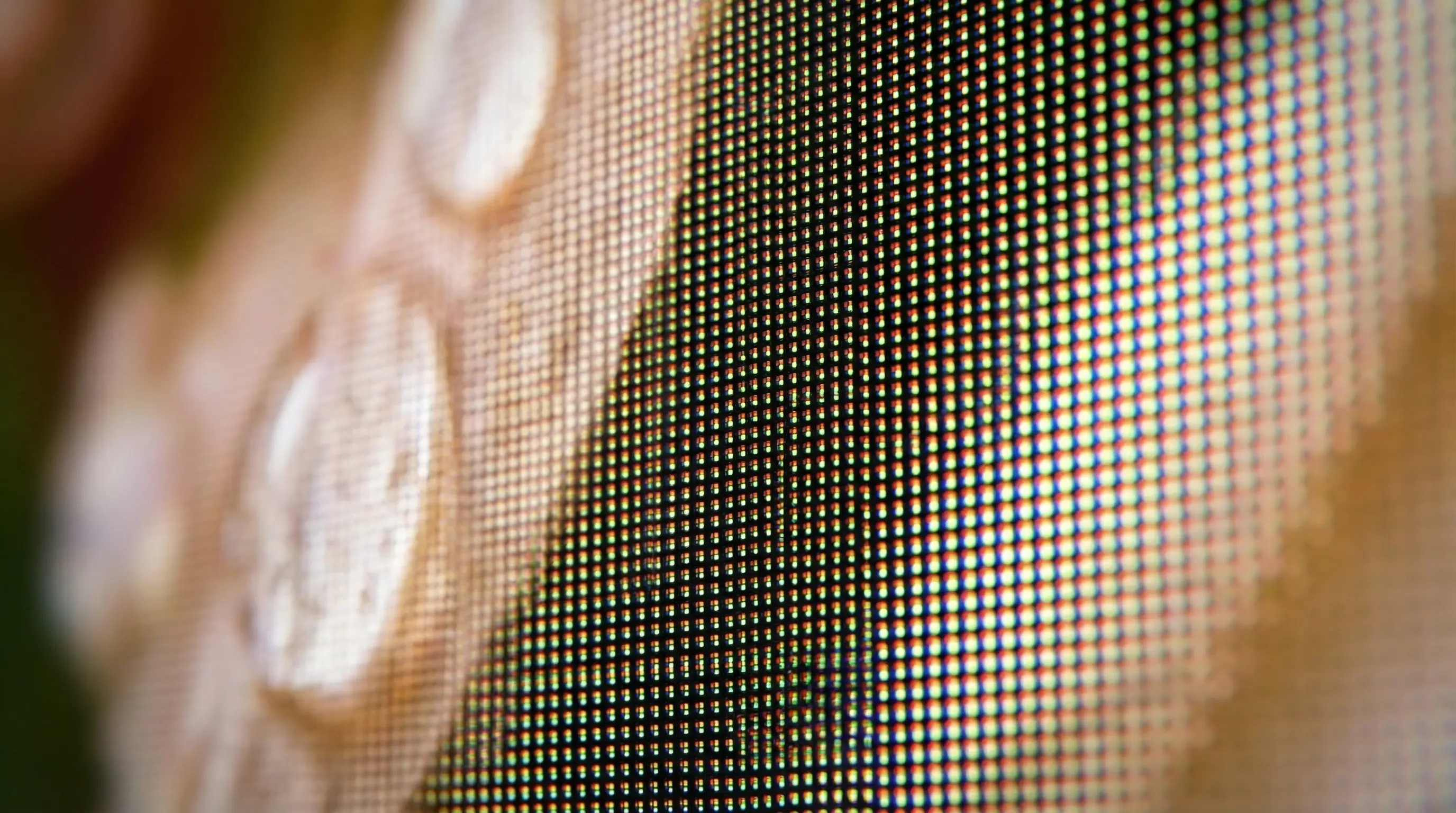

| Pixel Pitch | 1.25, 1.538, 1.667, 1.86, 2.5, 3 |
|---|---|
| LED lamp | SMD1010/1212/1515/2020 |
| Brightness | Indoor: ≤500 /≤600/≤800/≤900nits |
| Module pixel | 256*128/208*104/192*96/172*86/ 128*64/104*52/128*128(dots) |
| Cabinet pixel | 512*384/416*312/384*288/344*258/ 256*192/208*156(dots) |
Appearance |
|

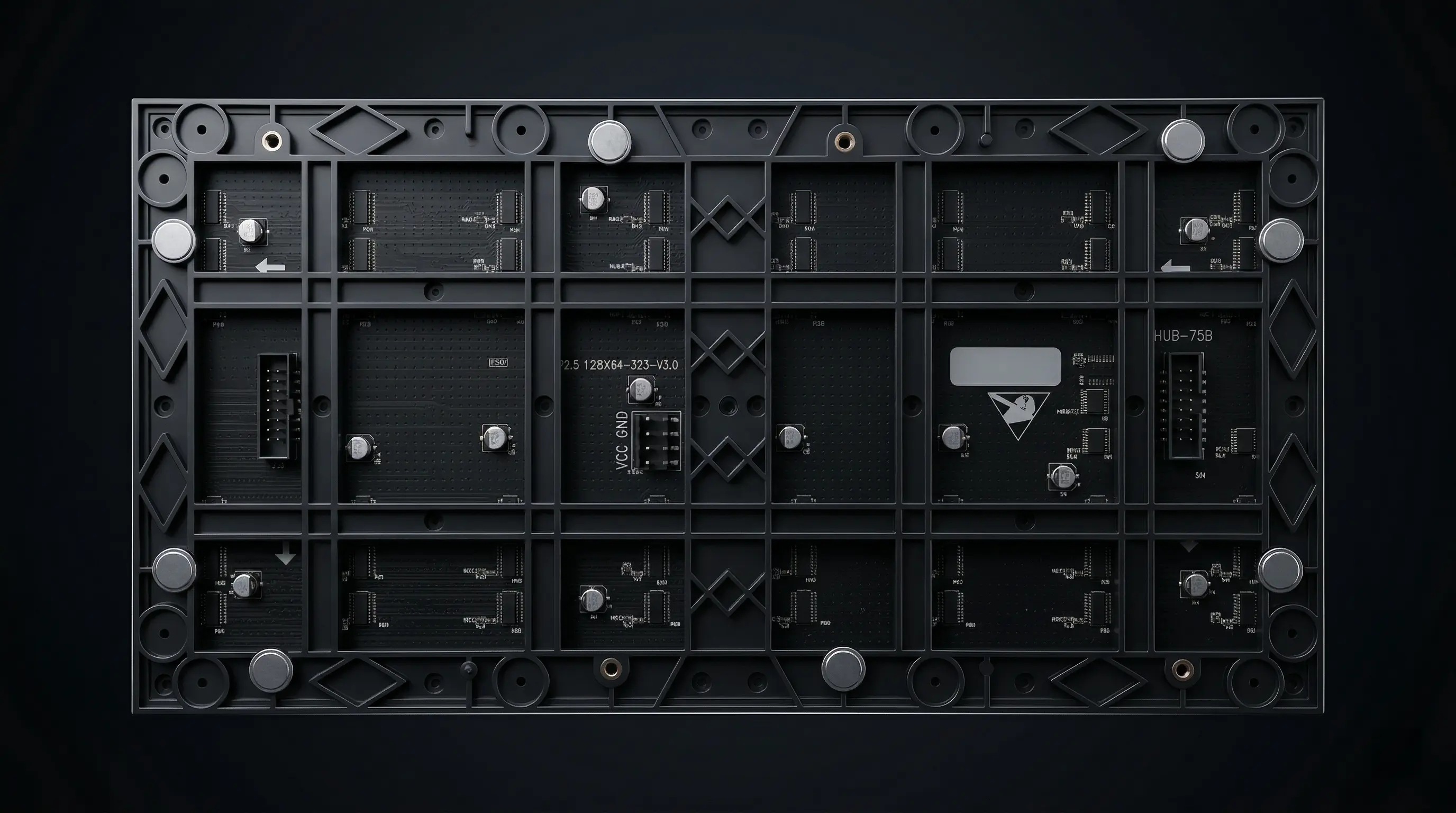

| Module size | 320*160mm |

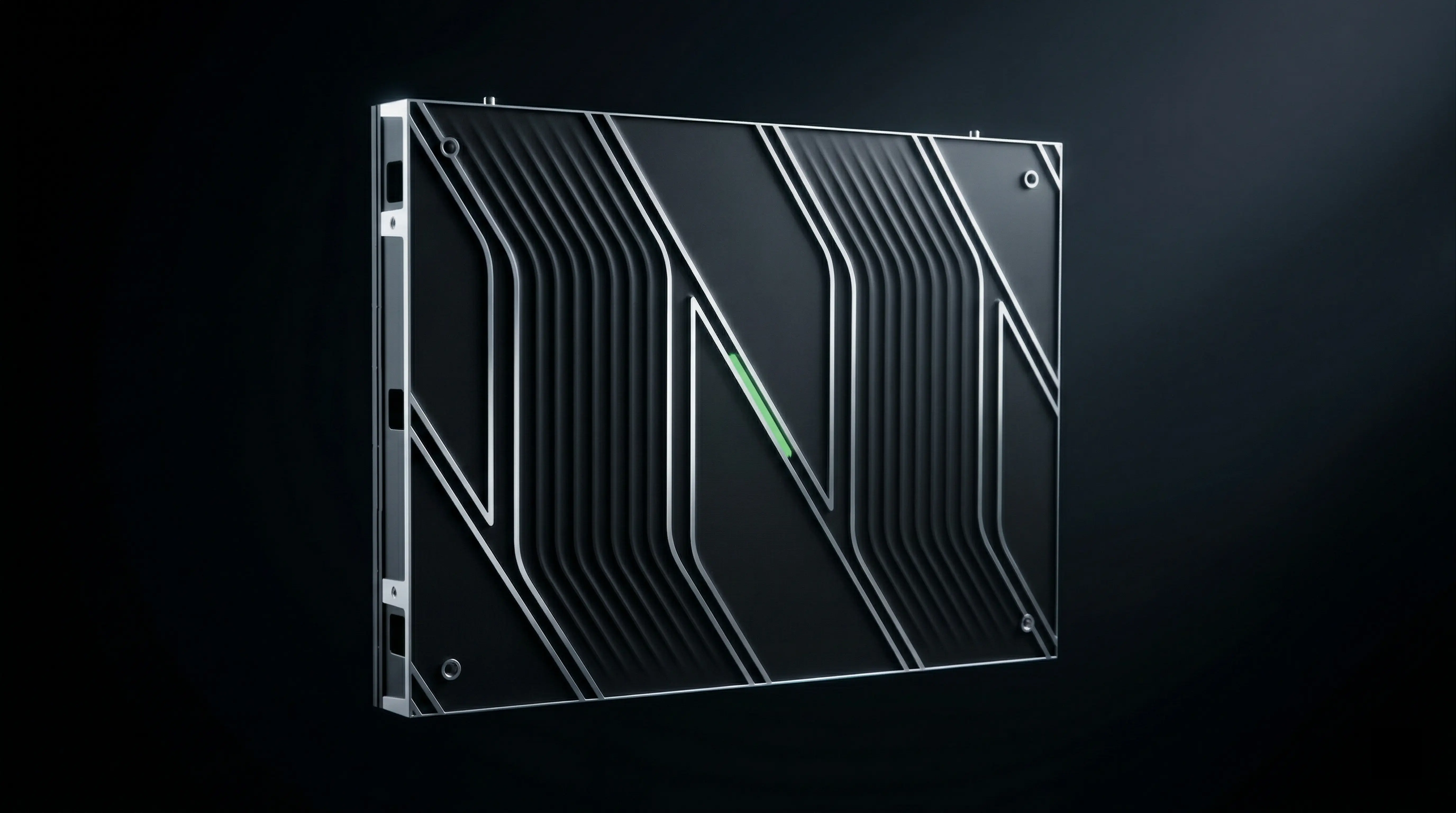

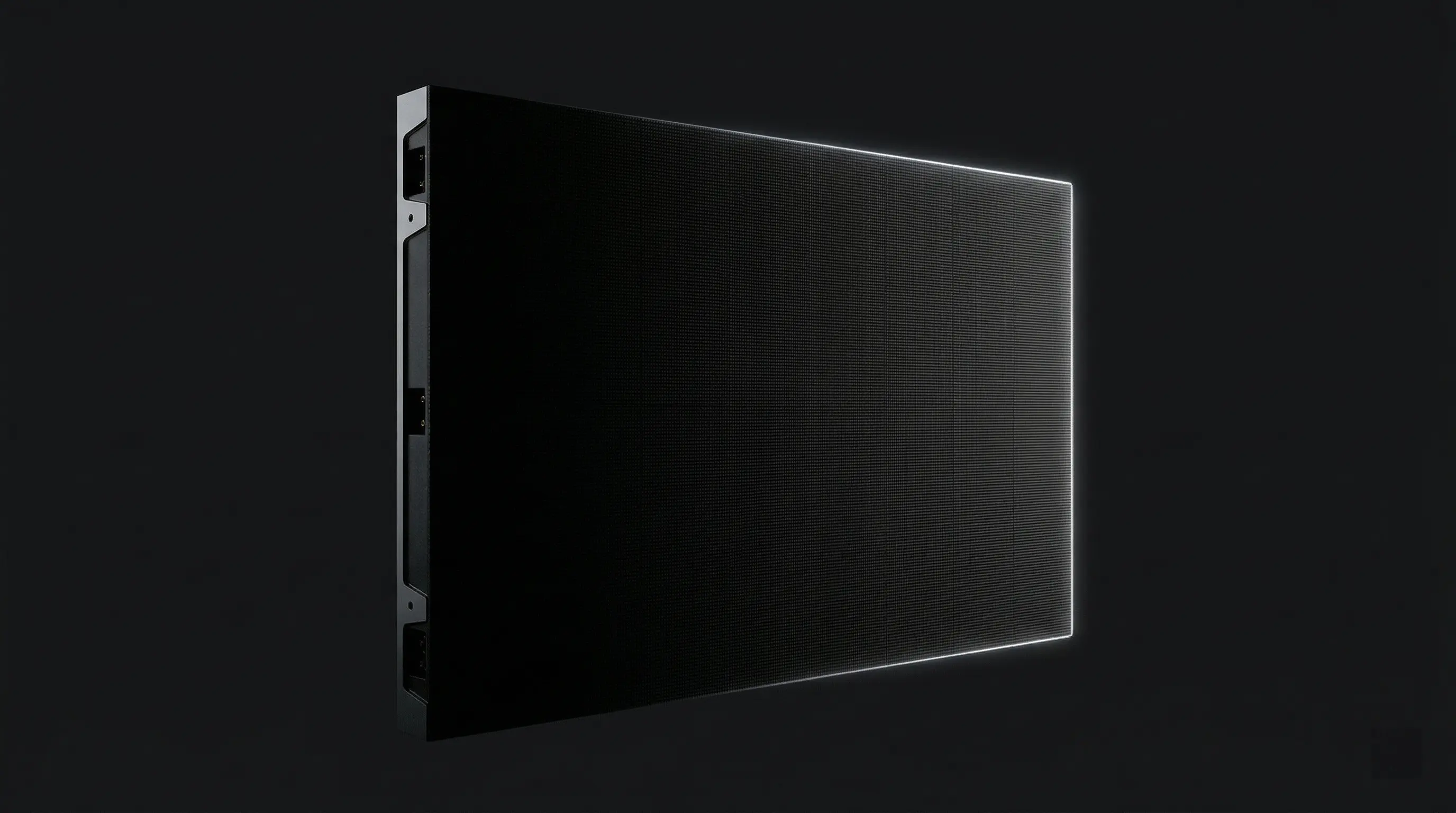

| Cabinet size | 640*480*57mm |
| Module weight | 0.3kg |
| Cabinet Weight | 5.5kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | 600w/sqm |
| Average Power | 360w/sqm |
Waterproof grade |
|
| IP rating | IP45 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | 64/52/45/43/32/26scan |
Material density |
|
| Density | 695556/401111/360000/284444/ 160000/111111(dots/m2) |

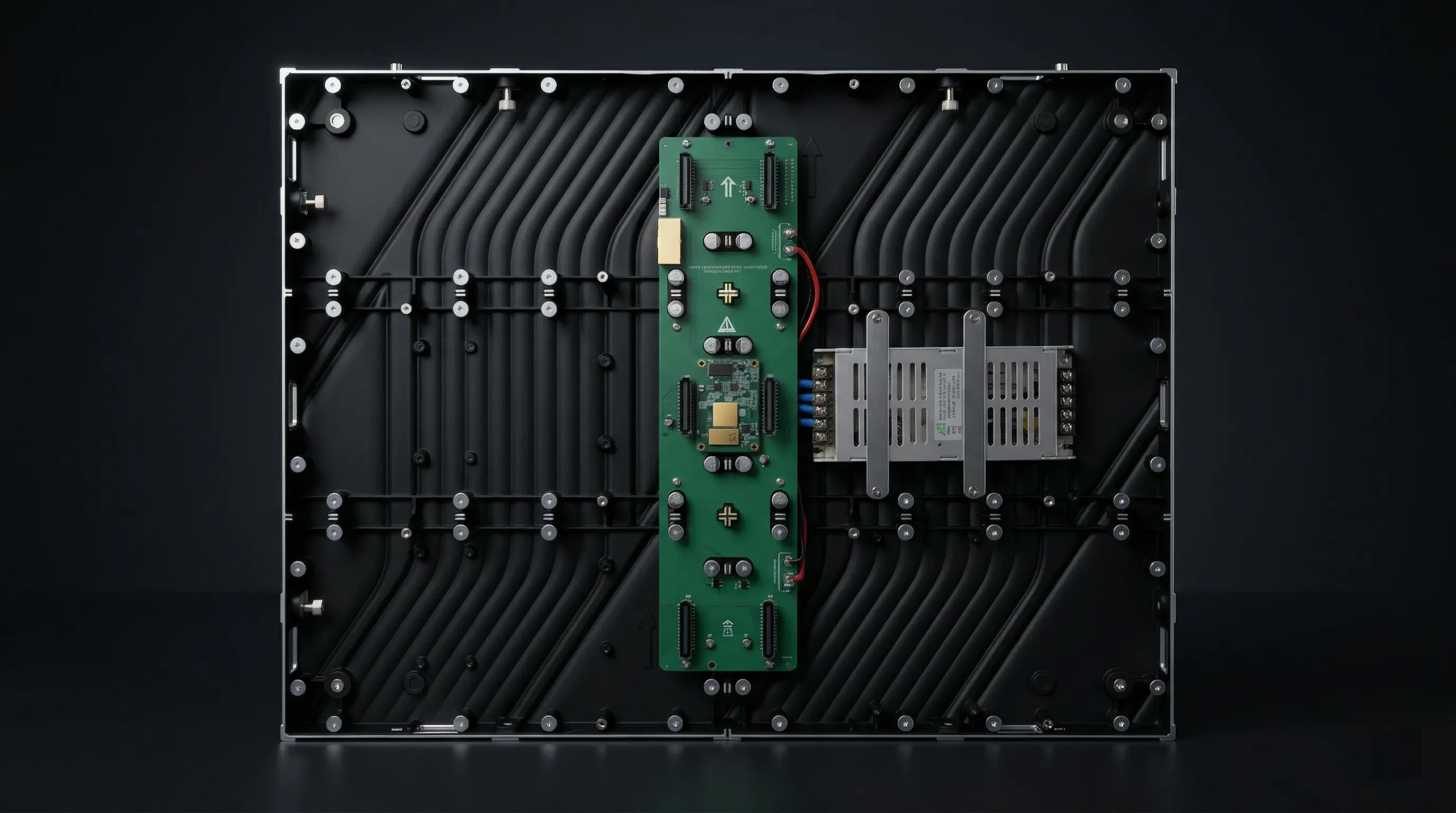

| Cabinet Materiel | Die-casting Aluminum |
