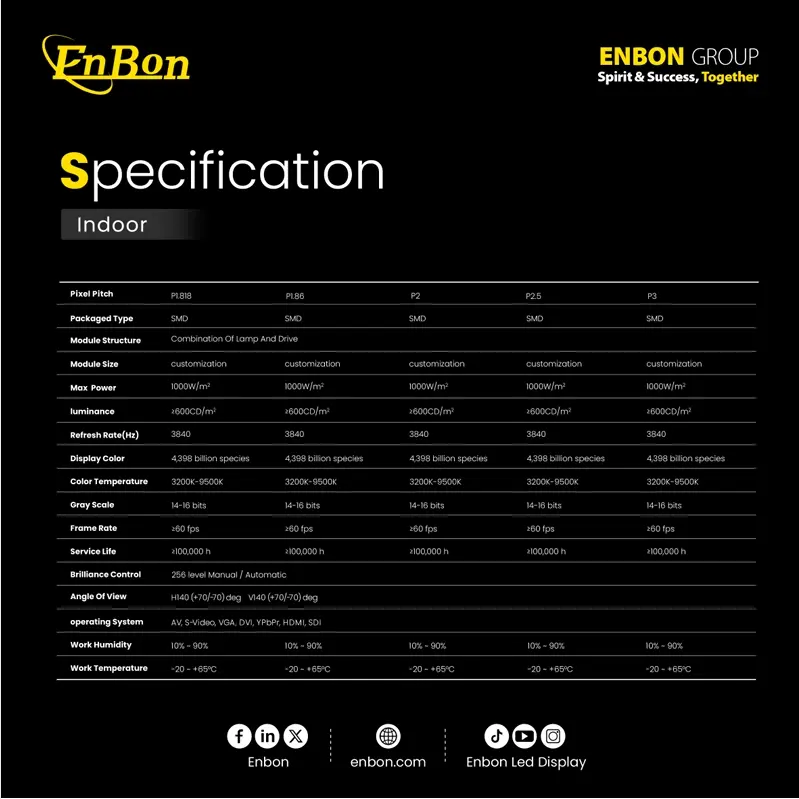

Item | Indoor | |||||||
---|---|---|---|---|---|---|---|---|
Pixel Pitch | P1.818 | P1.86 | P2 | P2.5 | P3 | |||
Module Structure | Combination Of Lamp And Drive | |||||||
Module size | Customization | |||||||
Max Power | 1000w/m2 | |||||||
luminance | ≥600CD/m2 | |||||||
Refresh Rate(Hz) | 3840 | |||||||
Display Color | 4,398 billion species | |||||||
Color Temperature | 3200K-9500K | |||||||
Gray Scale | 14-16bits | |||||||
Frame Rate | ≥60 fps | |||||||
Service Life | ≥100,000h | |||||||
Brilliance Control | 256 Level Manual / Automatic | |||||||
Angle of View | H140(+70/-70)deg V140(+70/-70)deg | |||||||
Operating System | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||||
Work Humidity | 10% ~ 90% | |||||||
Work Temperature | -20 ~+65°C |

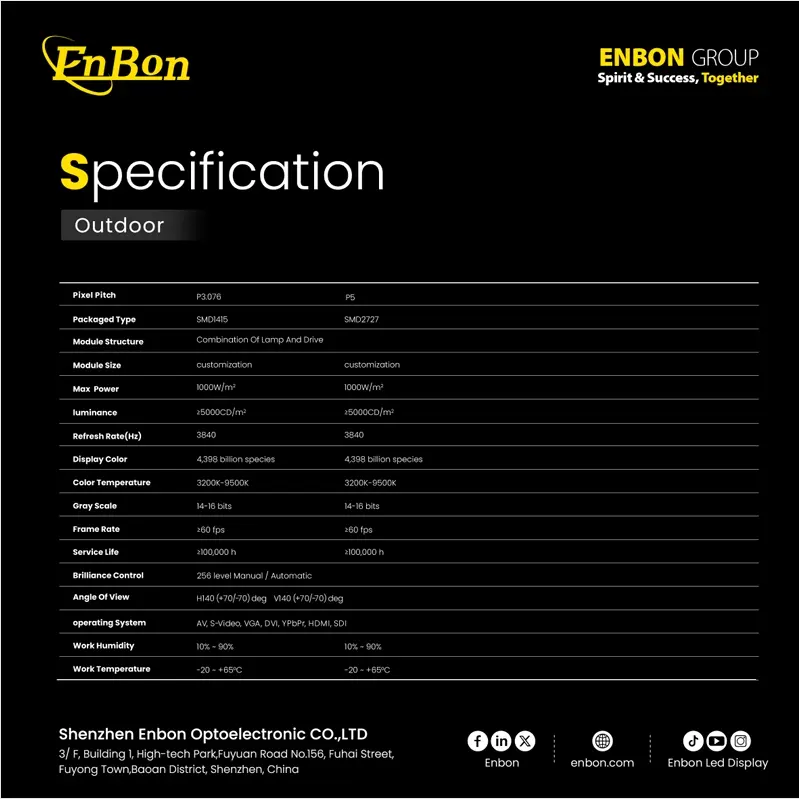

Item | Outdoor | ||
---|---|---|---|
Pixel Pitch | P3.076 | P5 | |

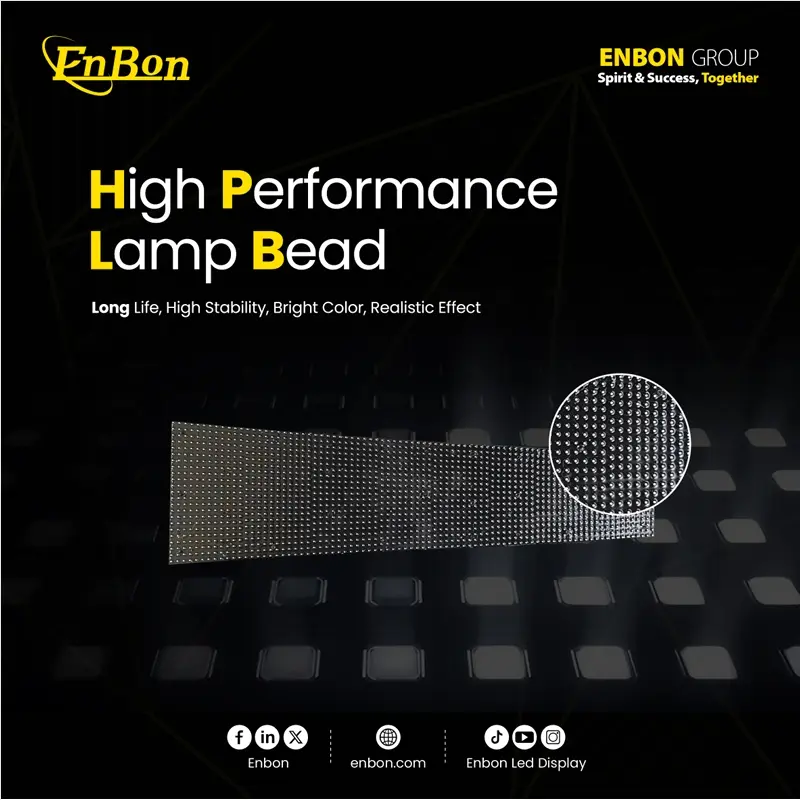

LED lamp | SMD1415 | smd2727 | |
Module Structure | Combination Of Lamp And Drive | ||

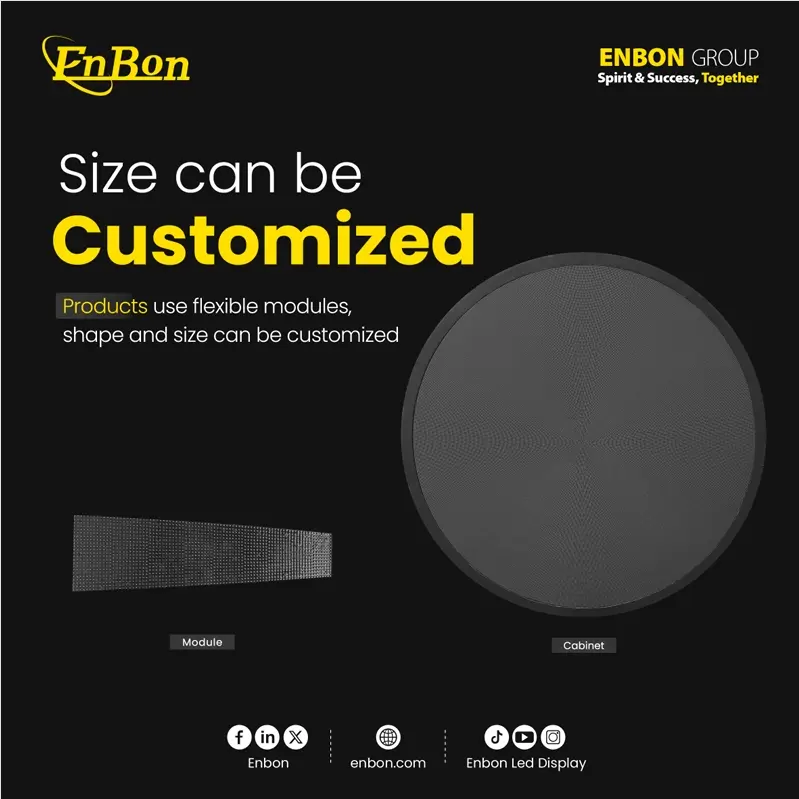

Module size | Customization | ||
Max Power | 1000w/m2 | ||
luminance | 5000CD/m2 | ||
Refresh Rate(Hz) | 3840 | ||
Display color | 4,398 billion species | ||
Color Temperature | 3200K-9500K | ||
Gray Scale | 14-16bits | ||
Frame Rate | ≥60 fps | ||
Service Life | ≥100,000h | ||
Brilliance Control | 256 level Manual / Automatic | ||
Angle of View | H140(+70/-70)deg V140(+70/-70)deg | ||
Operating System | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||
Work Humidity | 10% ~ 90% | ||
Work Temperature | -20 ~+65°C |

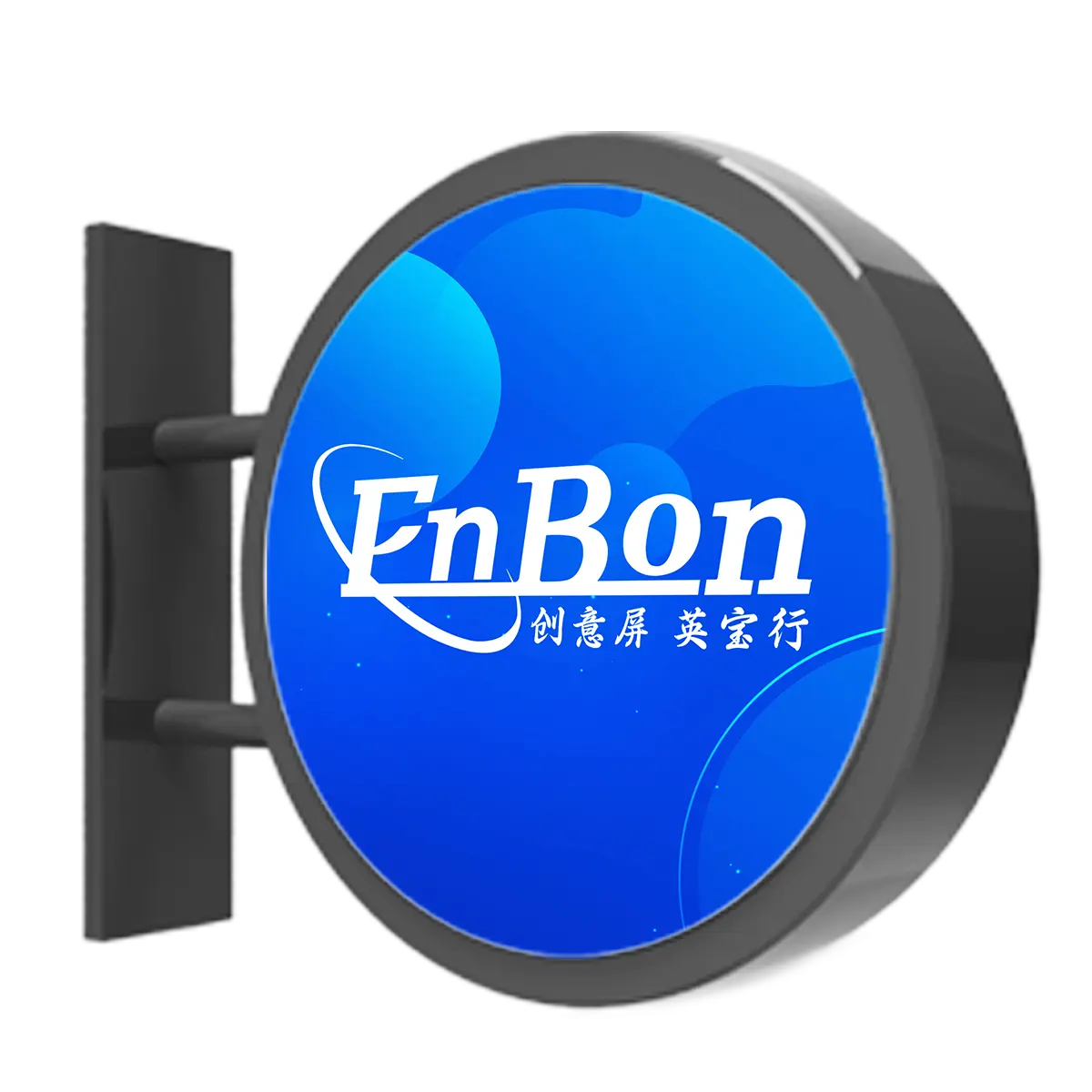

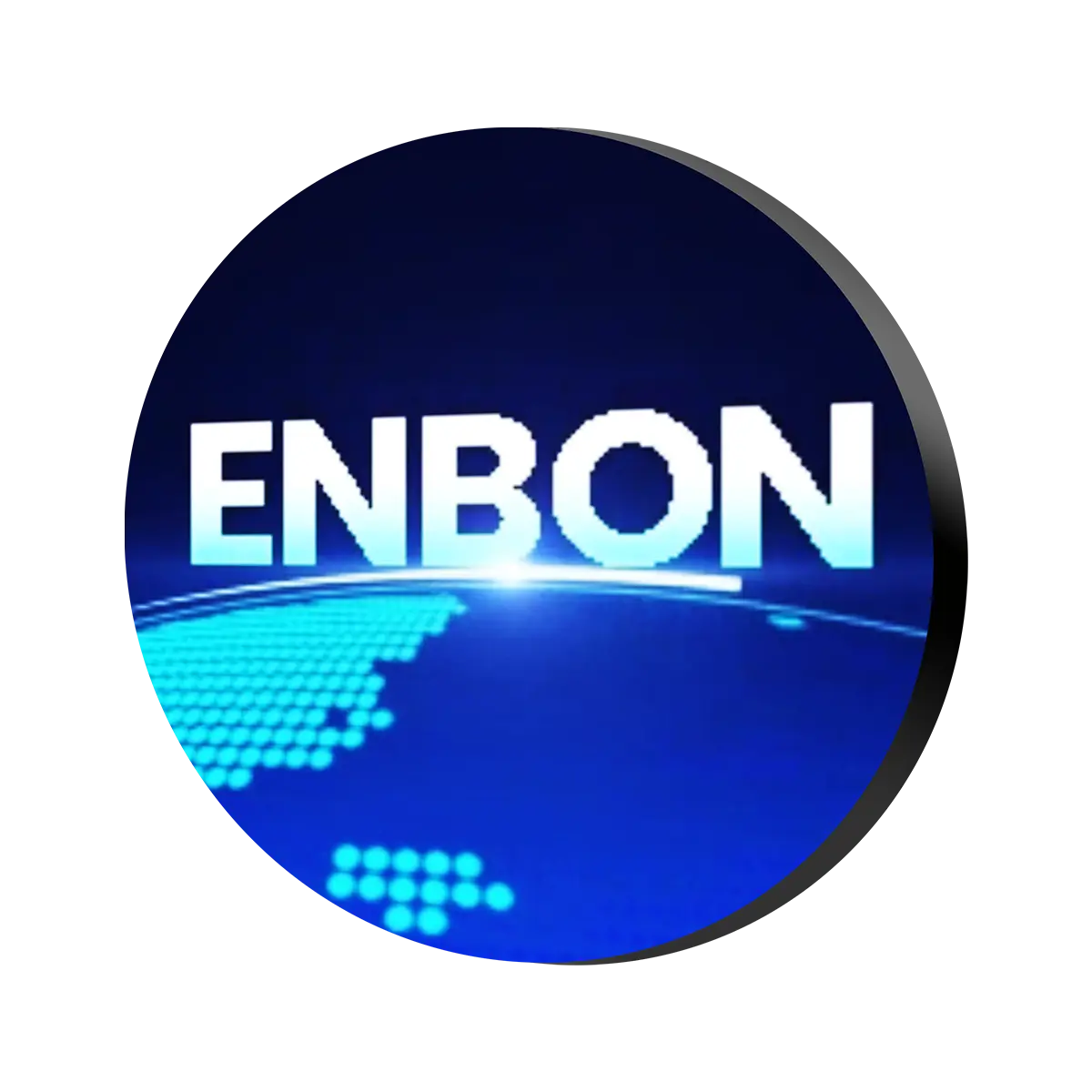

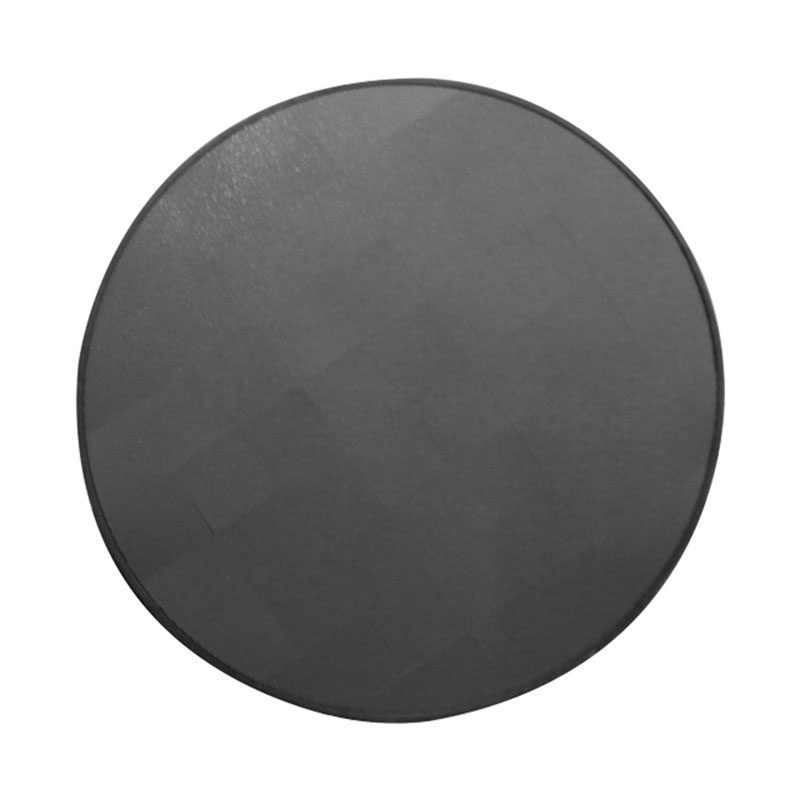

Cake Screen |
|
Pixel Pitch | Indoor: P1.818 / P1.86 / P2 / P2.5 / P3 Outdoor: P3.076 / P5 |
---|---|
LED Lamp | Indoor: -- Outdoor: SMD1415 / SMD2727 |
Brightness | Indoor: ≥600CD/m² Outdoor: 5000CD/m² |
Display Color | 4,398 billion species |
Color Temperature | 3200K - 9500K |
Module Structure | Combination Of Lamp And Drive |
Module Size | Customization |
Max Power | 1000w/m² |
Refresh Rate | 3840Hz |
Gray Scale | 14-16bits |
Frame Rate | ≥60 fps |
Service Life | ≥100,000 hours |
Brilliance Control | 256 Level Manual / Automatic |
Viewing Angle | H140°(+70/-70) V140°(+70/-70) |
Operating System | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
Working Environment | Humidity: 10% ~ 90% Temperature: -20°C ~ +65°C |
