R5 Plus Right Angle Lock

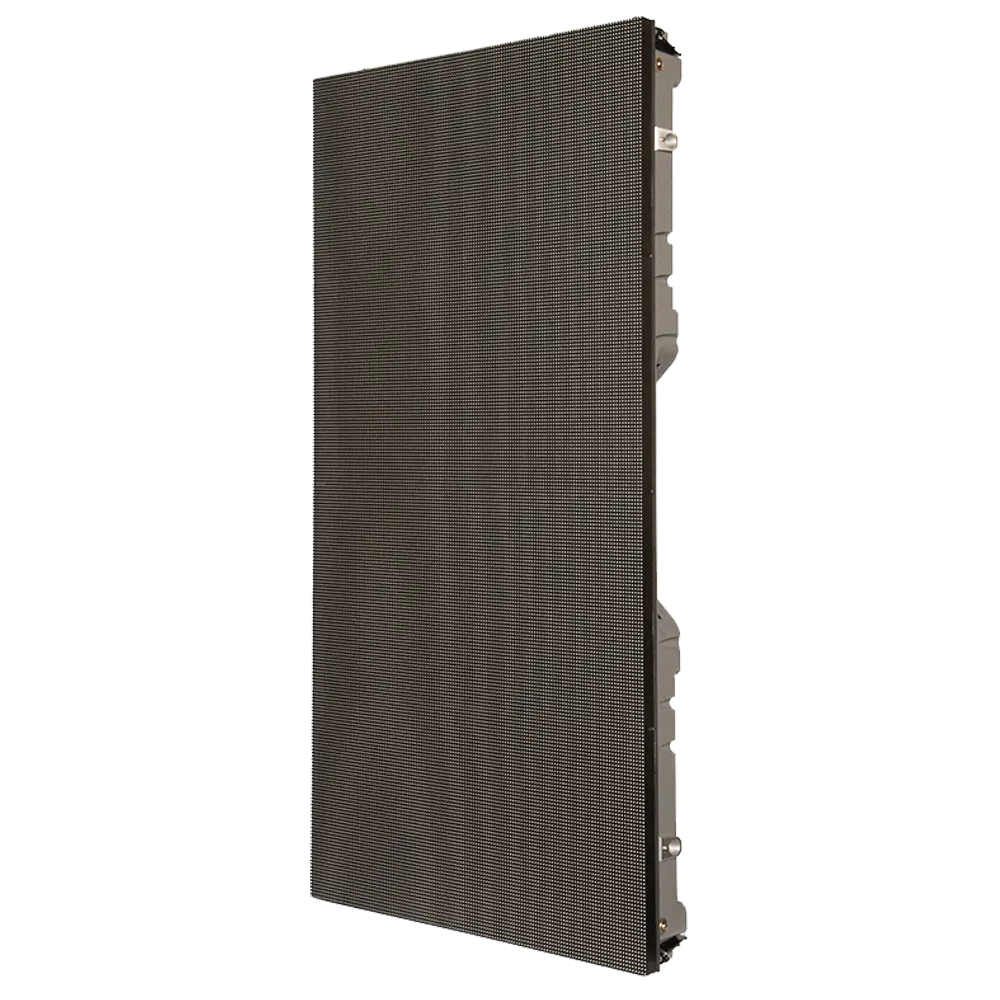

Indoor LED Screen Rental products Enbon R5 Plus Right Angle Lock Display - Enbon LED Display

Rental R5 Right Angle Lock Model Easy to front maintenance and rear maintenance IP65 Weatherproof 3840Hz Refresh Rate Ultra-Lightweight Quick-Lock Mechanism Rental-Optimized High Performance High-Brightness Ultra-Slim Design C abinet S tructure Corner Pro
  • Integrated cabinet design saves maintenance time
  • Right angle lock ensures precise, seamless flat displays for professional event setups
  • Right angle lock supports fixed 90° connections for stable, flat or corner configurations
  • Modular design of power control cabinet, no wire is needed to connect the module
  • The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
IP654000nitsP2.604P2.976P3.91P4.81P1.56P1.95rightanglelock

Description

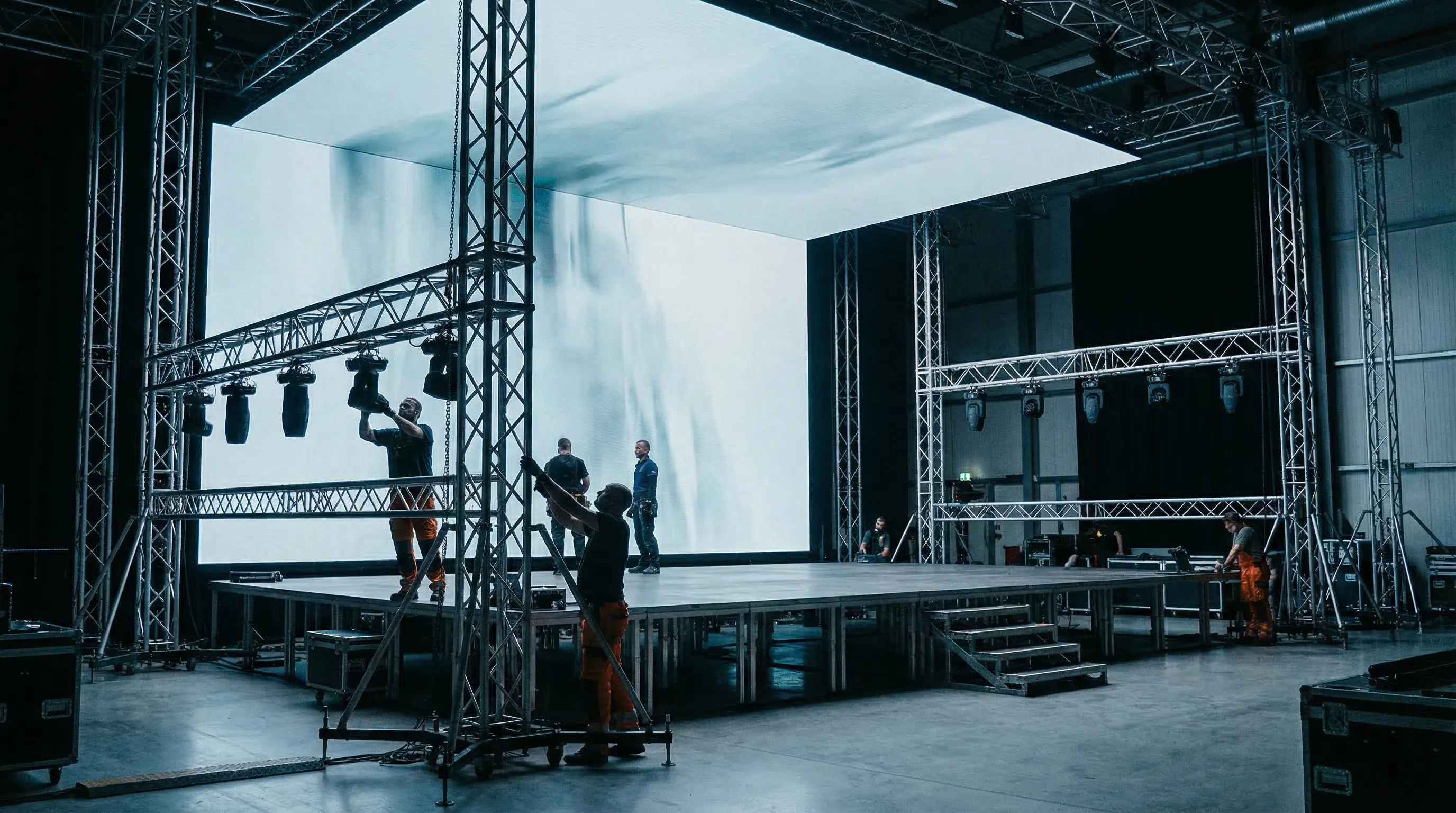

Rental Stage Solution

R5 Plus Series

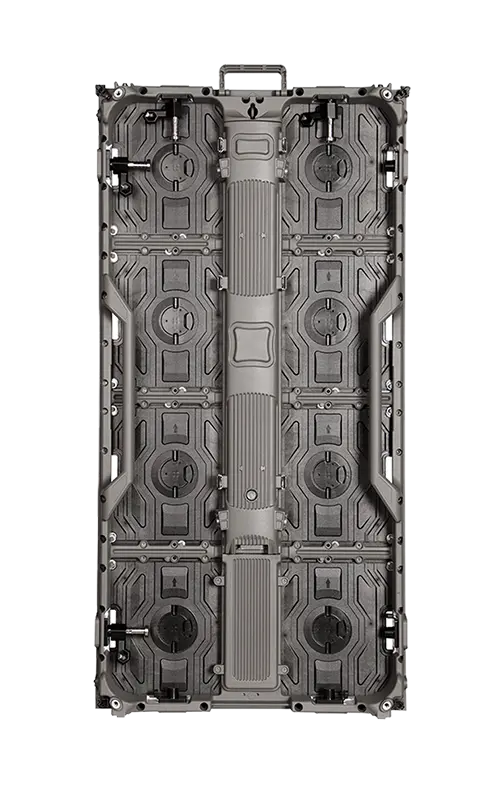

Right Angle Fast Lock

Easy to front maintenance and rear maintenance

R5 Plus Img

IP65 Weatherproof

3840Hz Refresh Rate

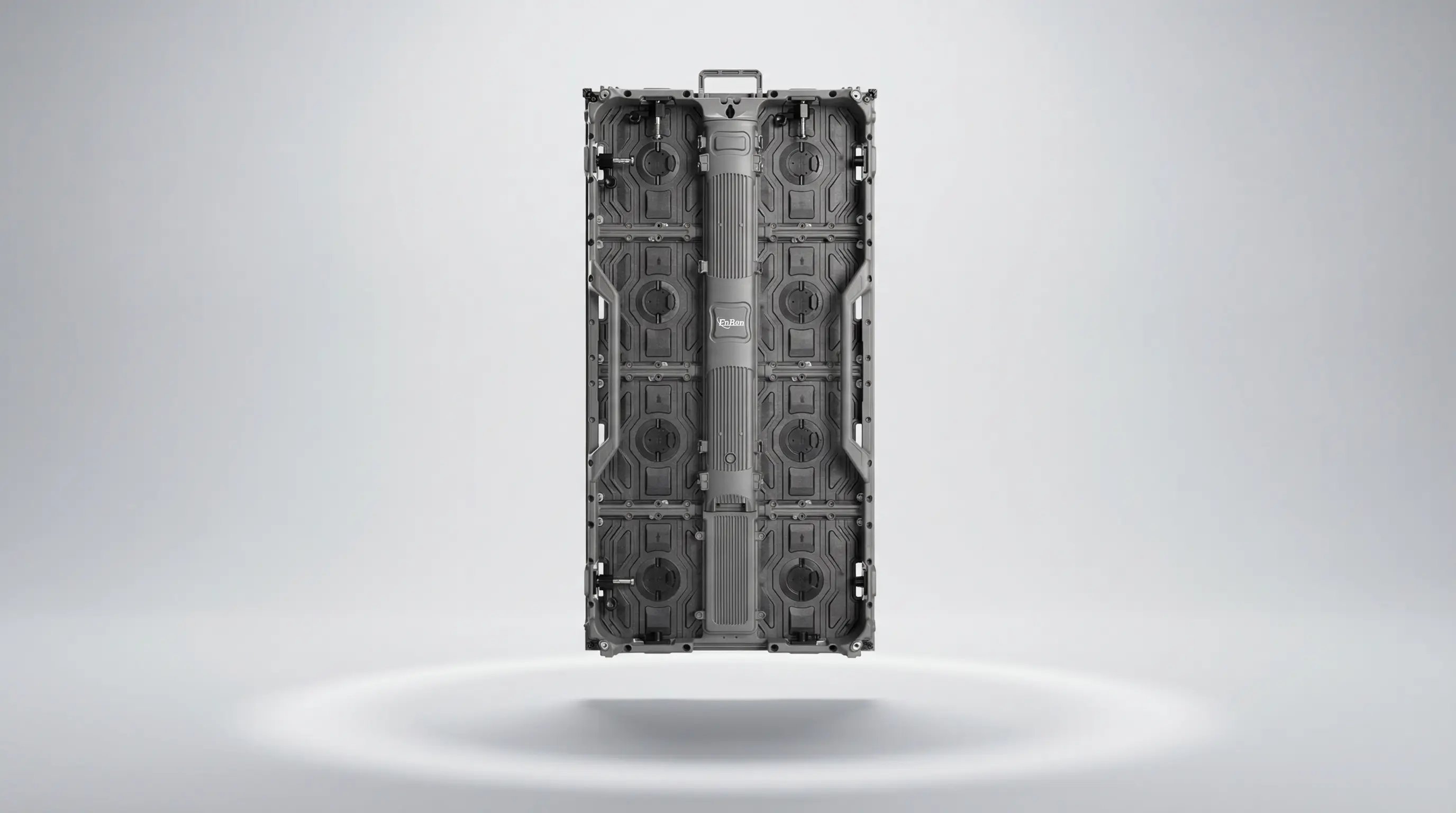

Ultra-Lightweight

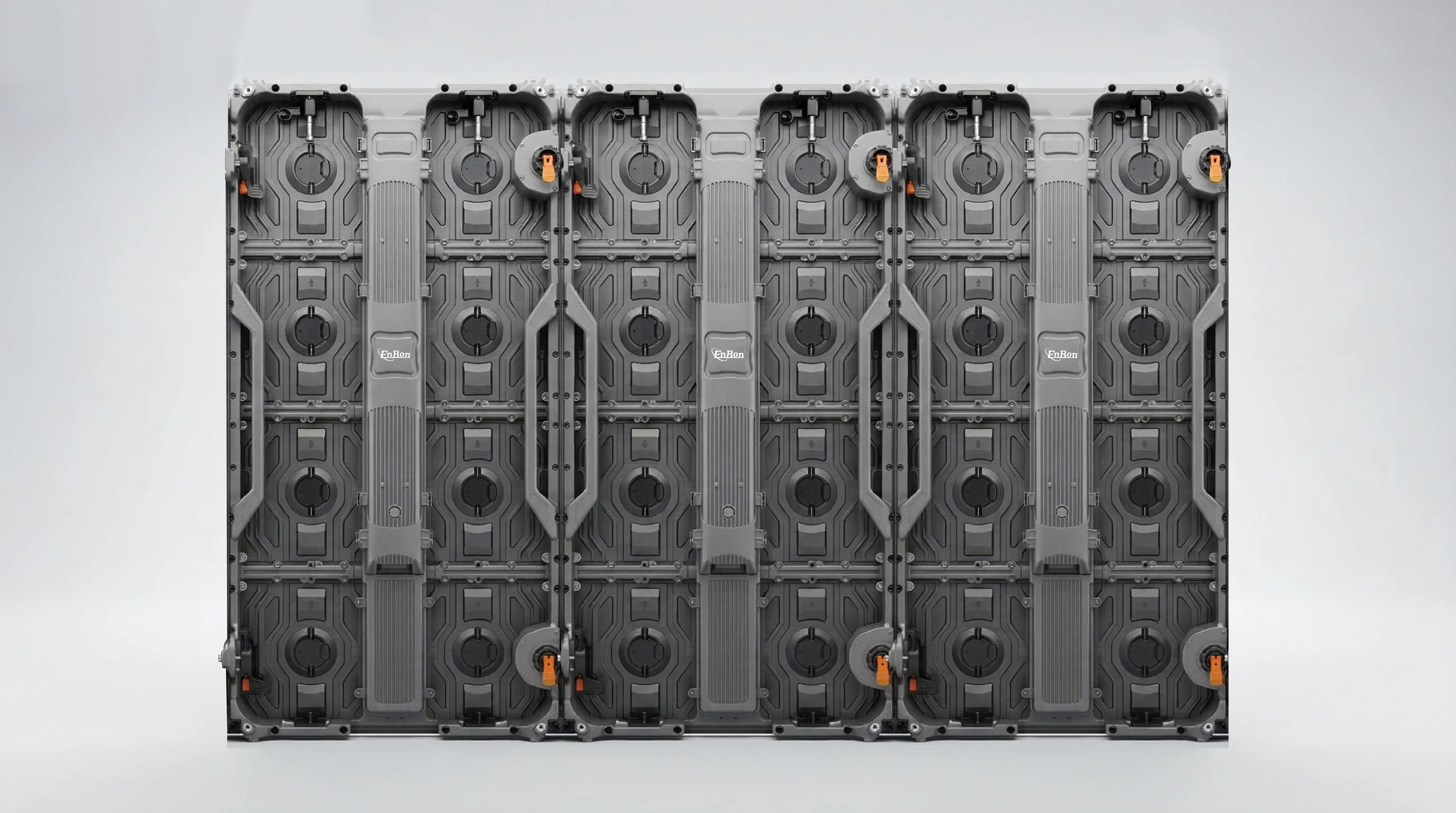

Quick-Lock Mechanism

Rental-Optimized

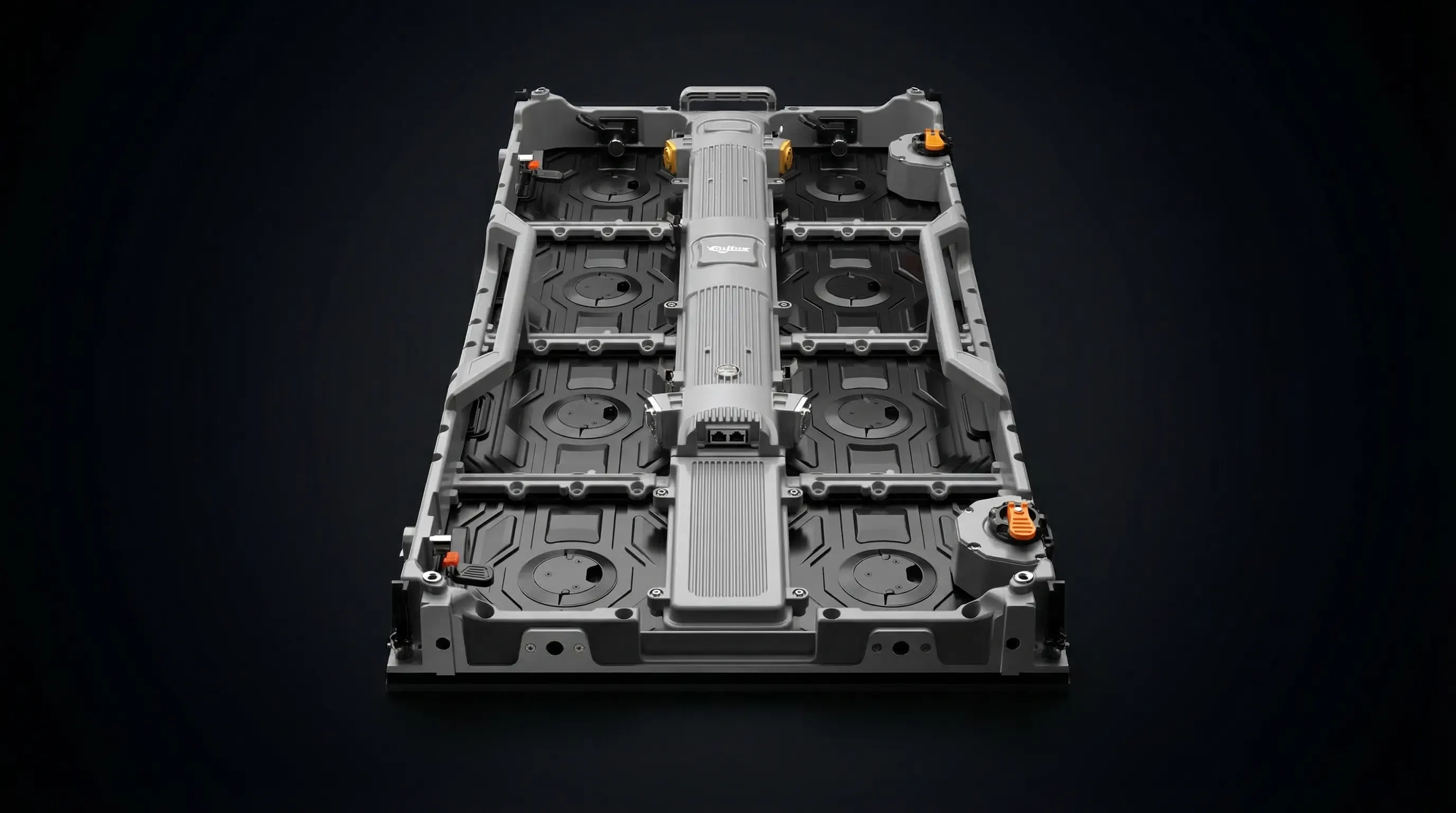

High Performance

High-Brightness

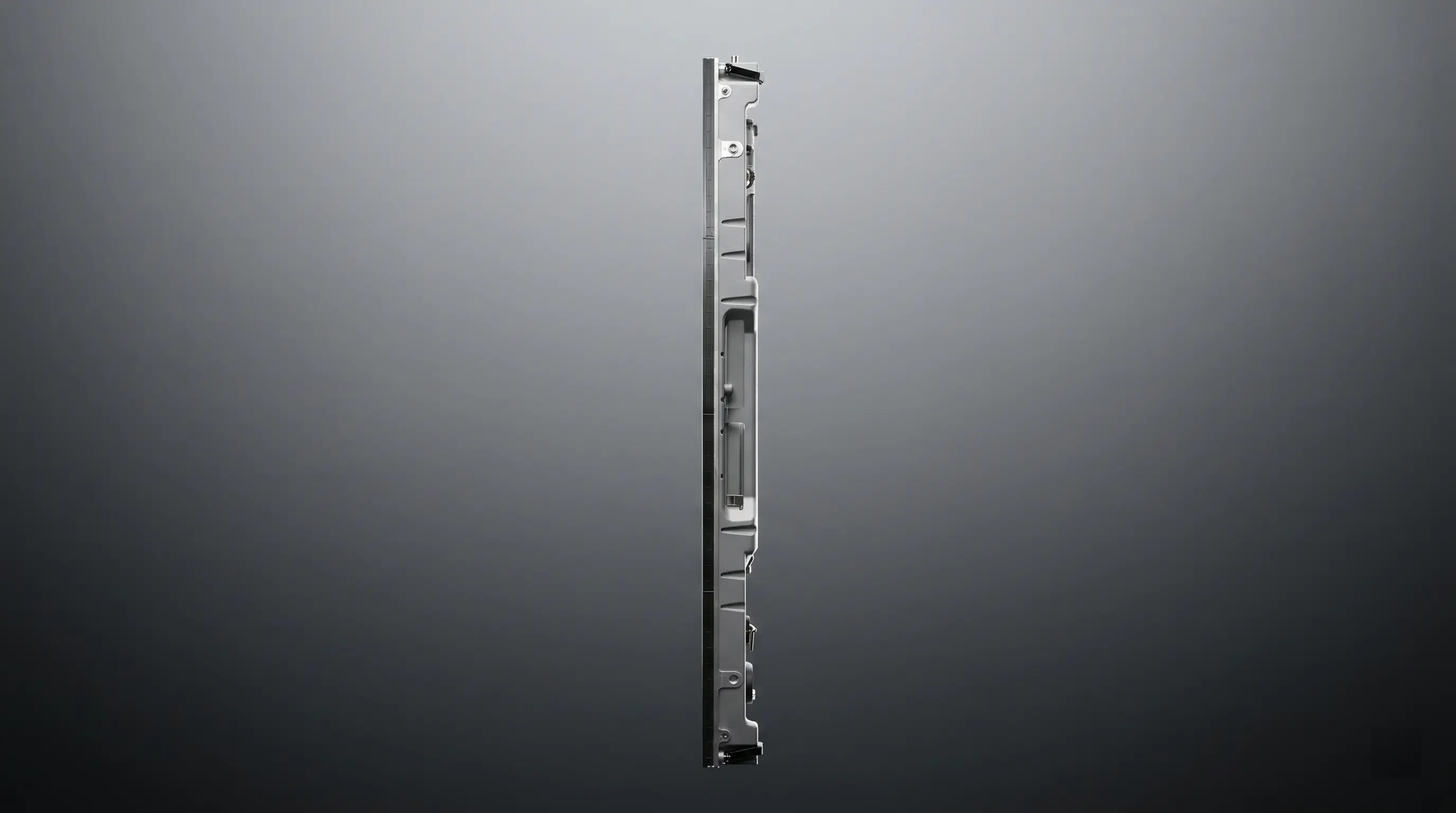

Ultra-Slim Design

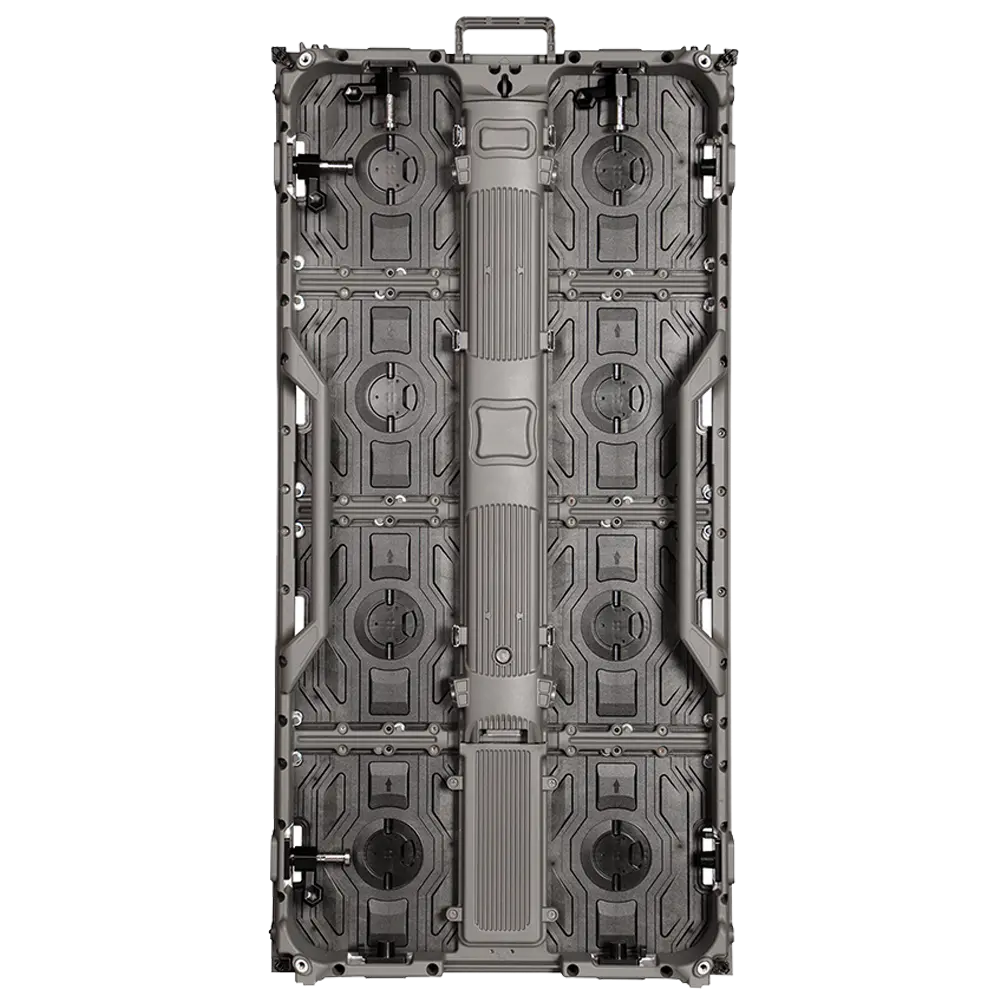

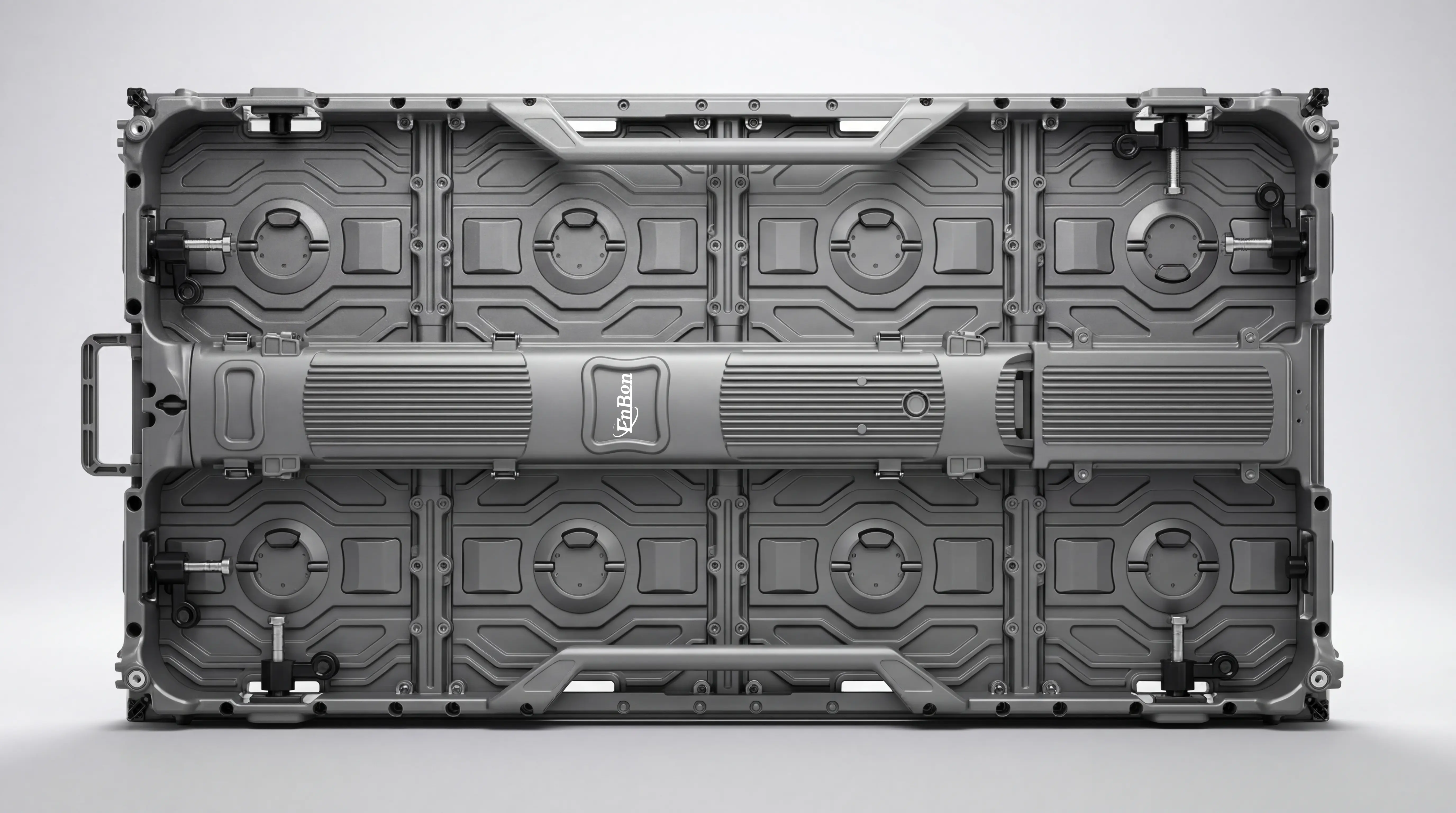

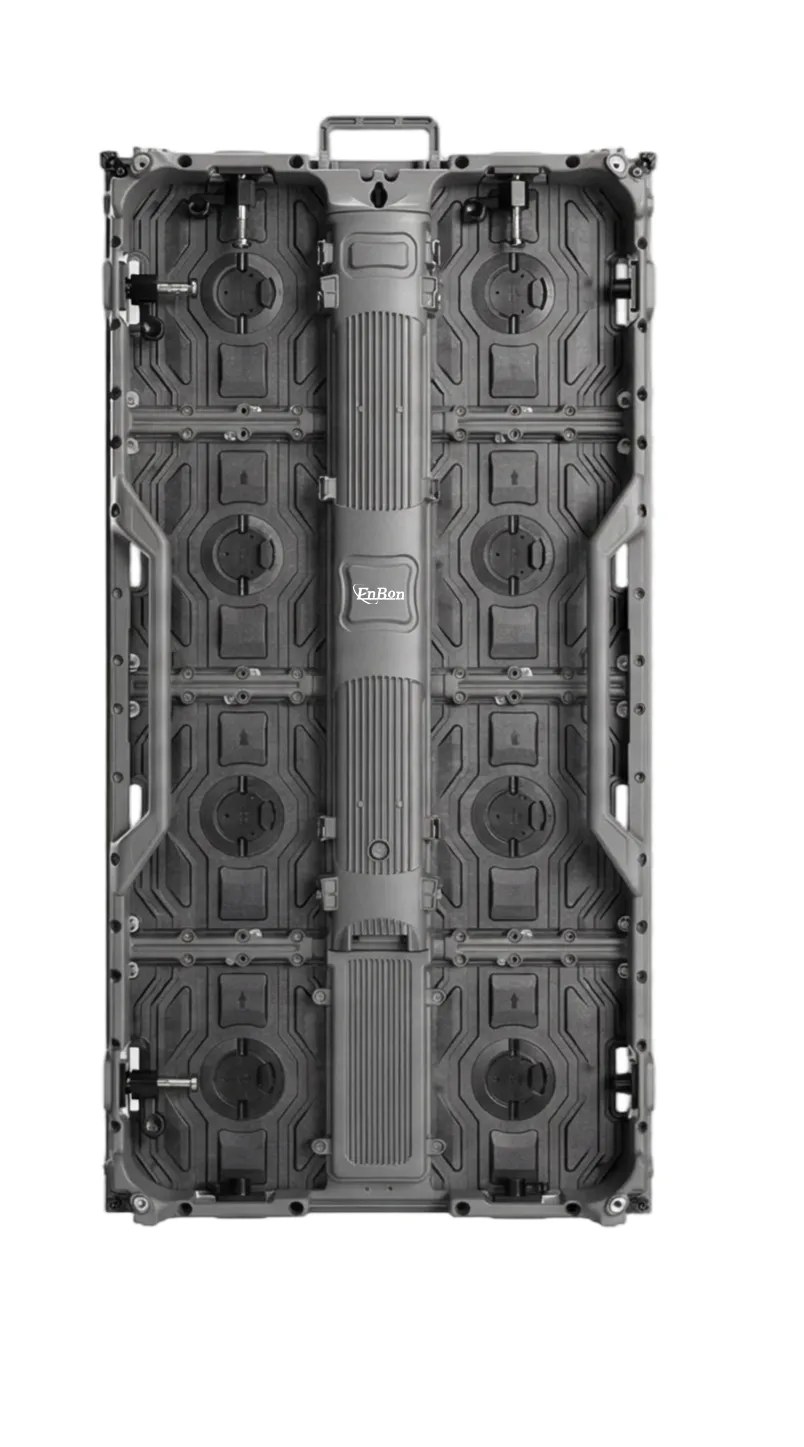

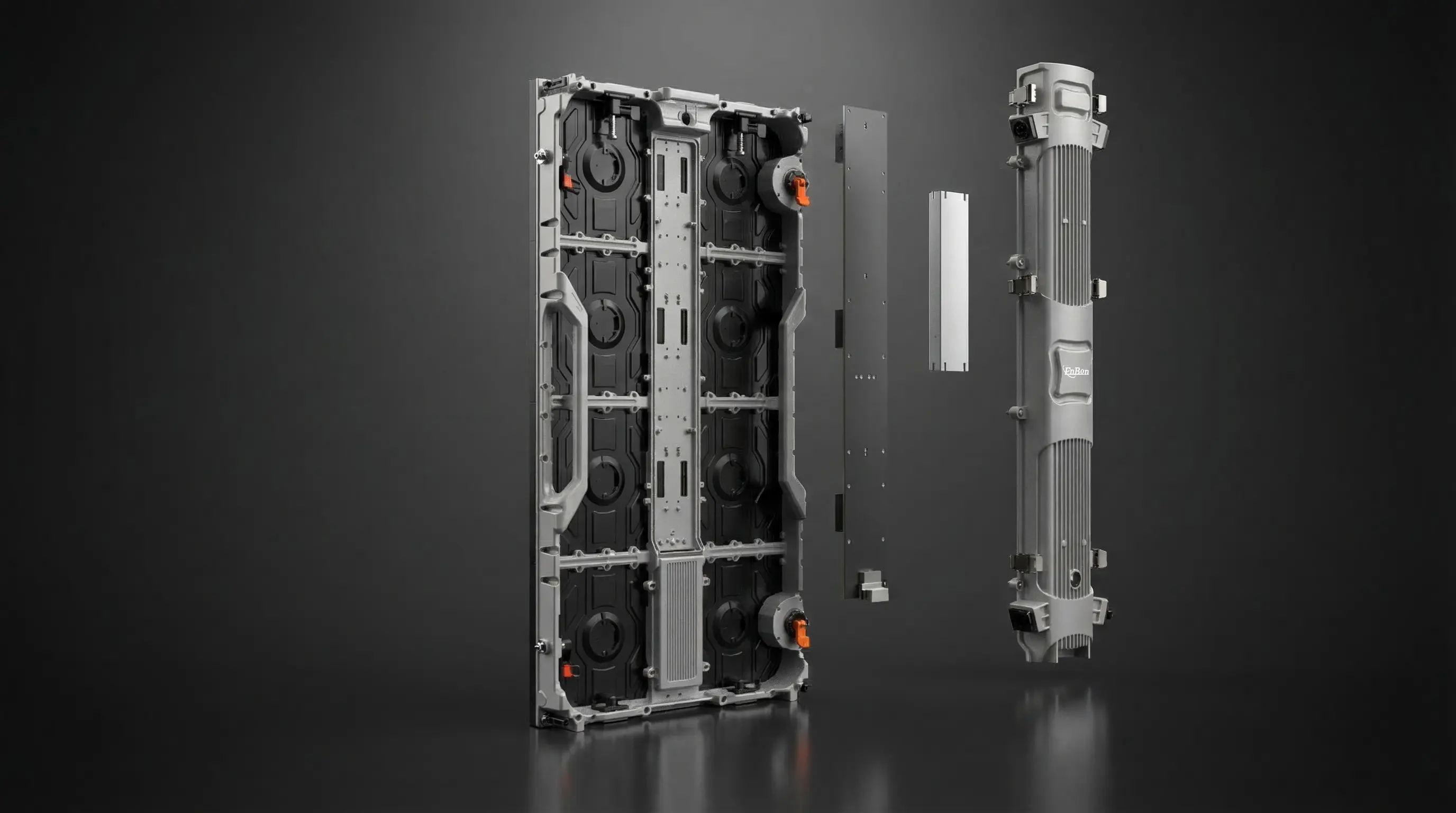

Cabinet Structure

R5 Plus Cabinet Structure Image

Corner Protection



Stack Structure Hole



Power Con



Module Handle



Side Handle



Signal Con



Fast Lock



Top Handle



Top Fast Lock

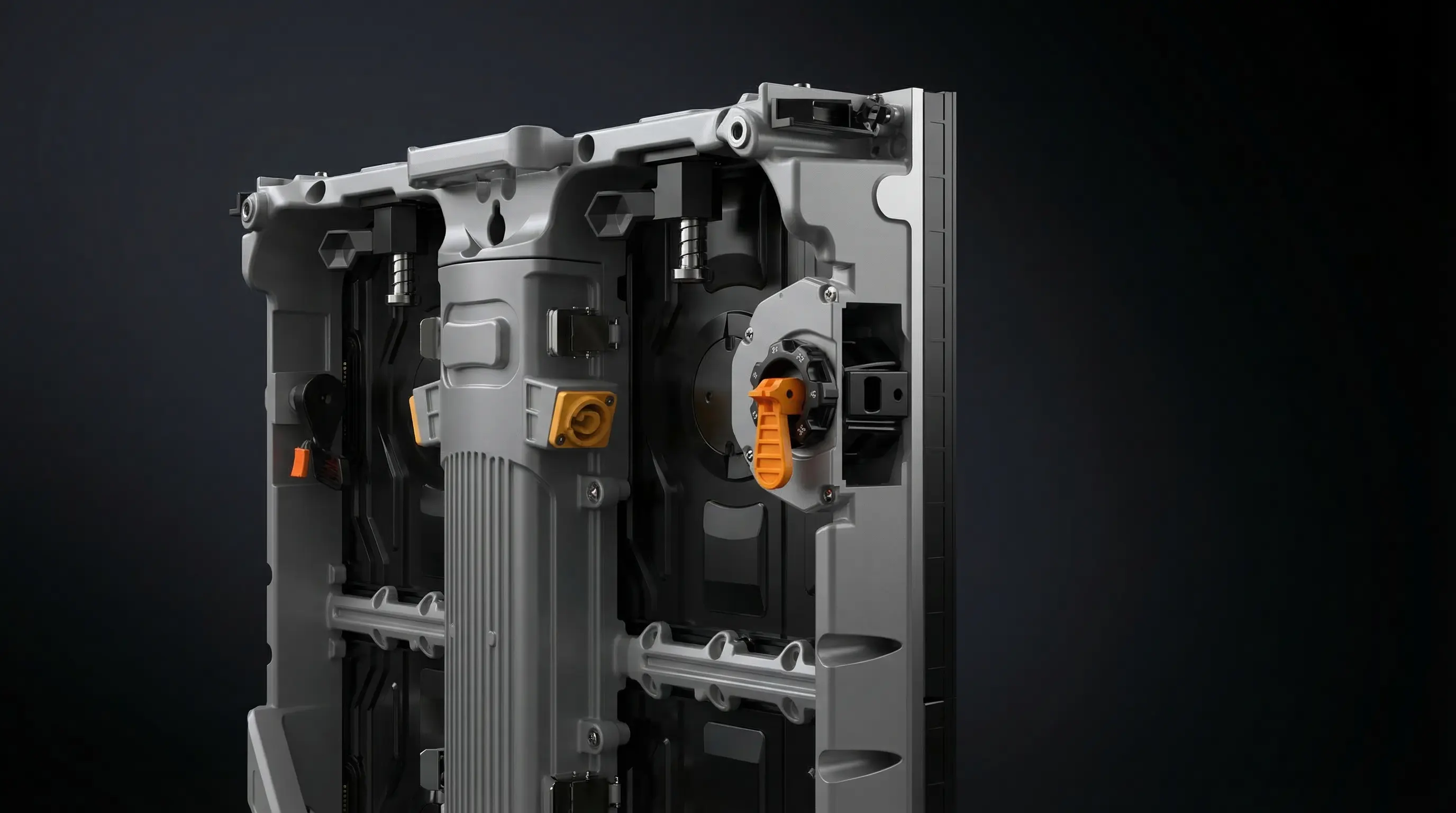

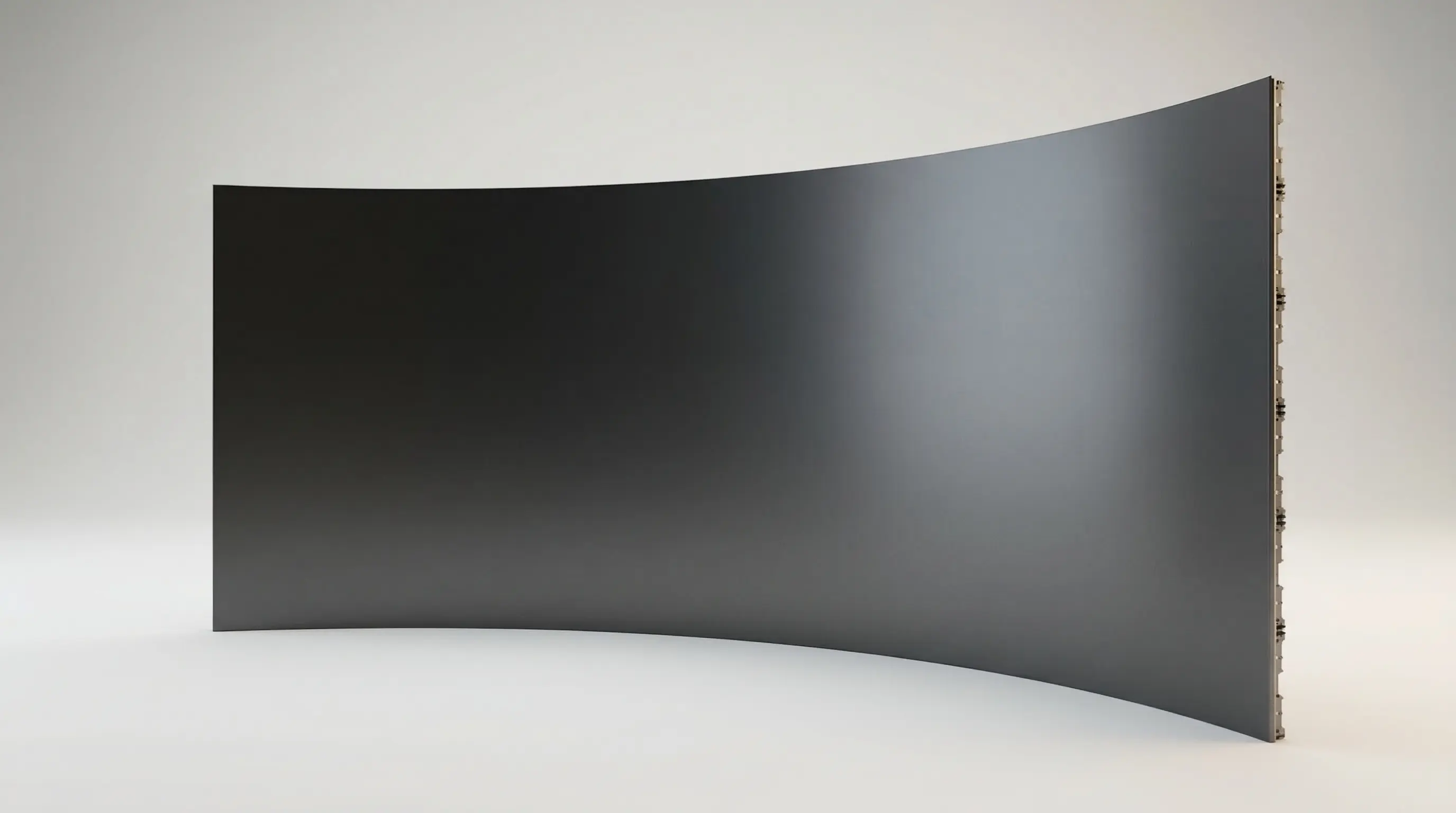

Curve Lock



LOGO Position



Indicator light



Anti-collission Device

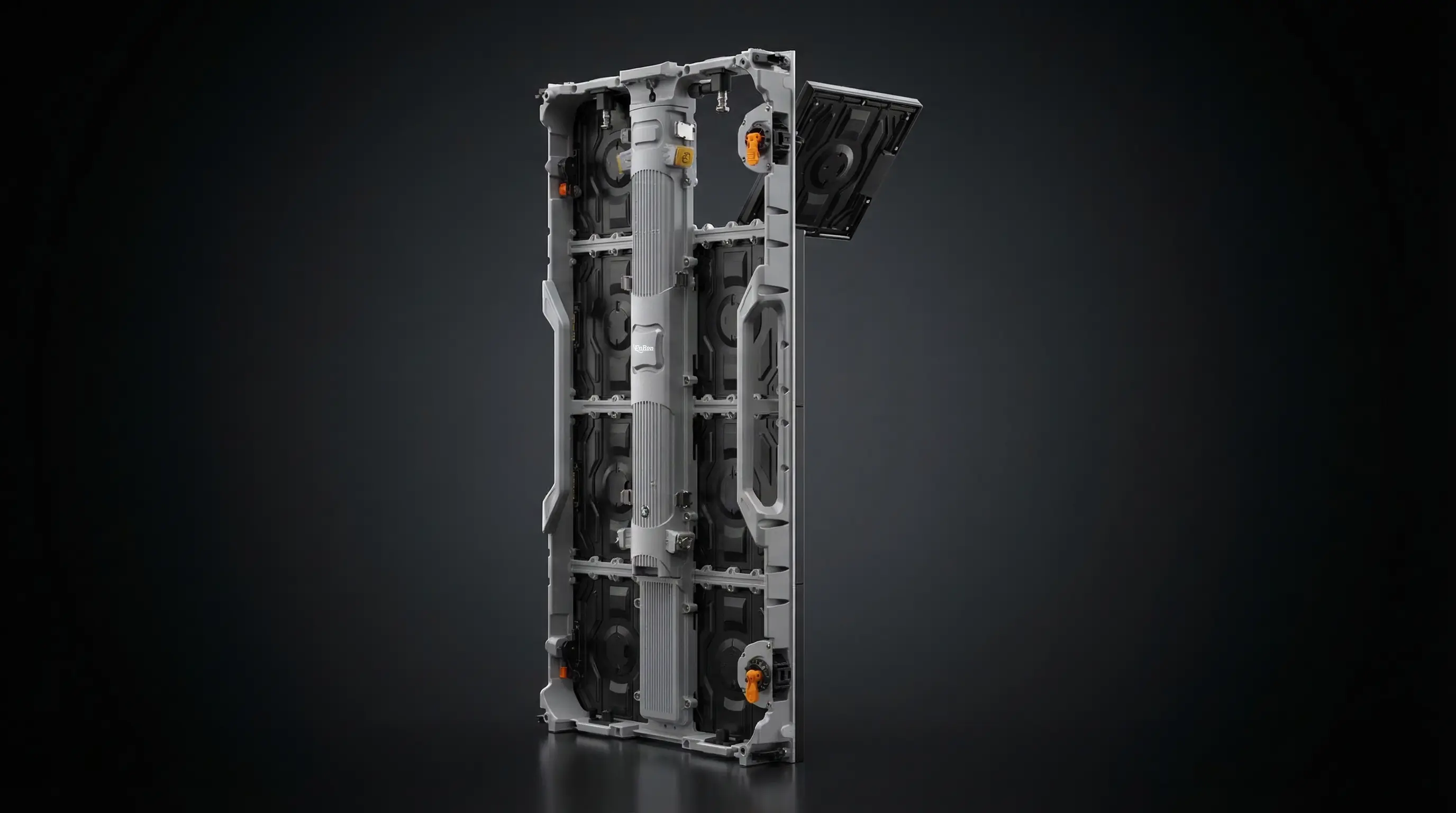

Maintenance Method

Front Maintenance And Rear Maintenance

R5 Plus Maintenance Method Image

Front Maintenance



Rear Maintenance

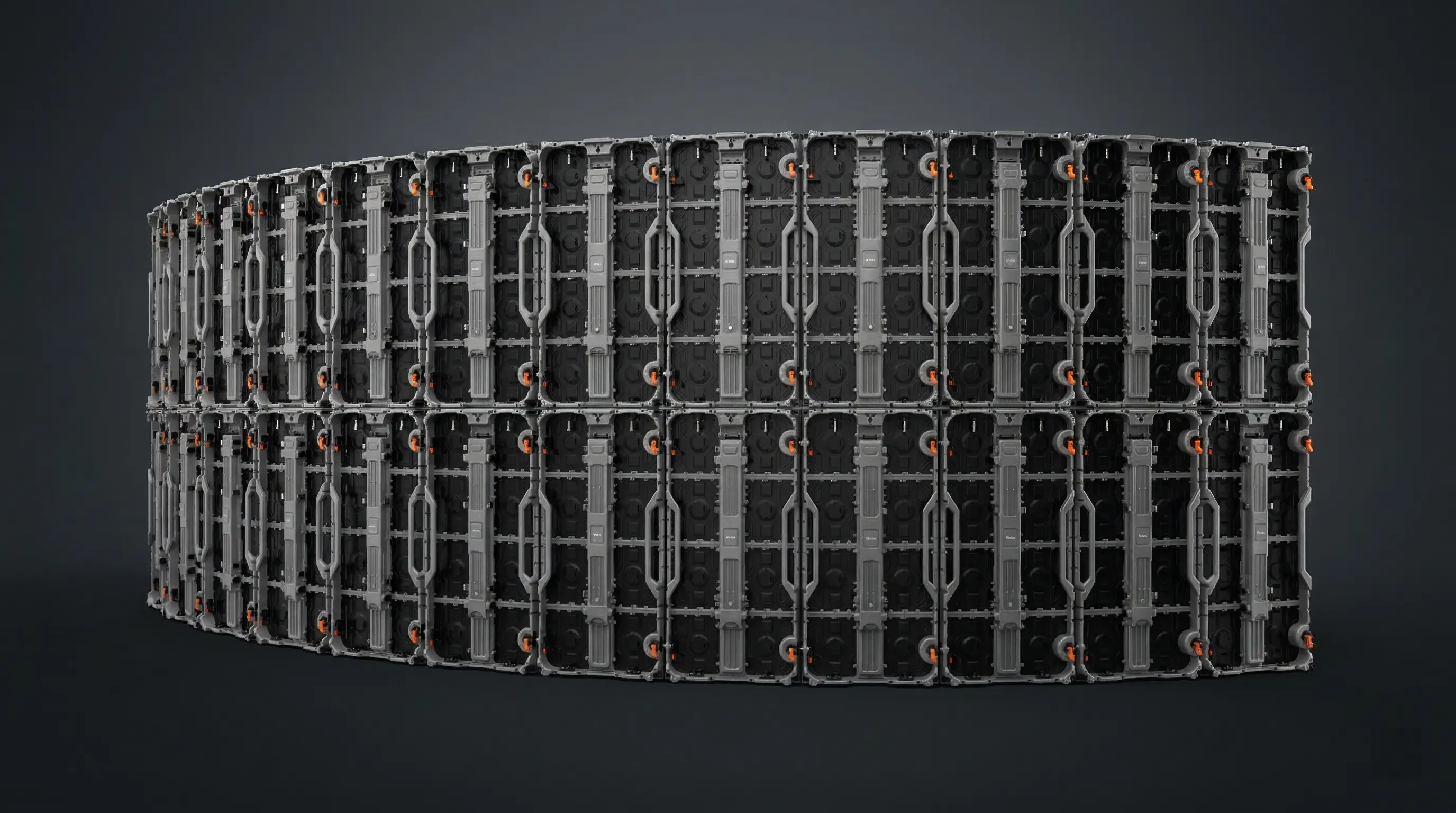

Different Sizes
Can Also Be Spliced

R5 Plus Img

Corner
Protection
Design

R5 Plus Img

IP65
Waterproof

R5 Plus Img

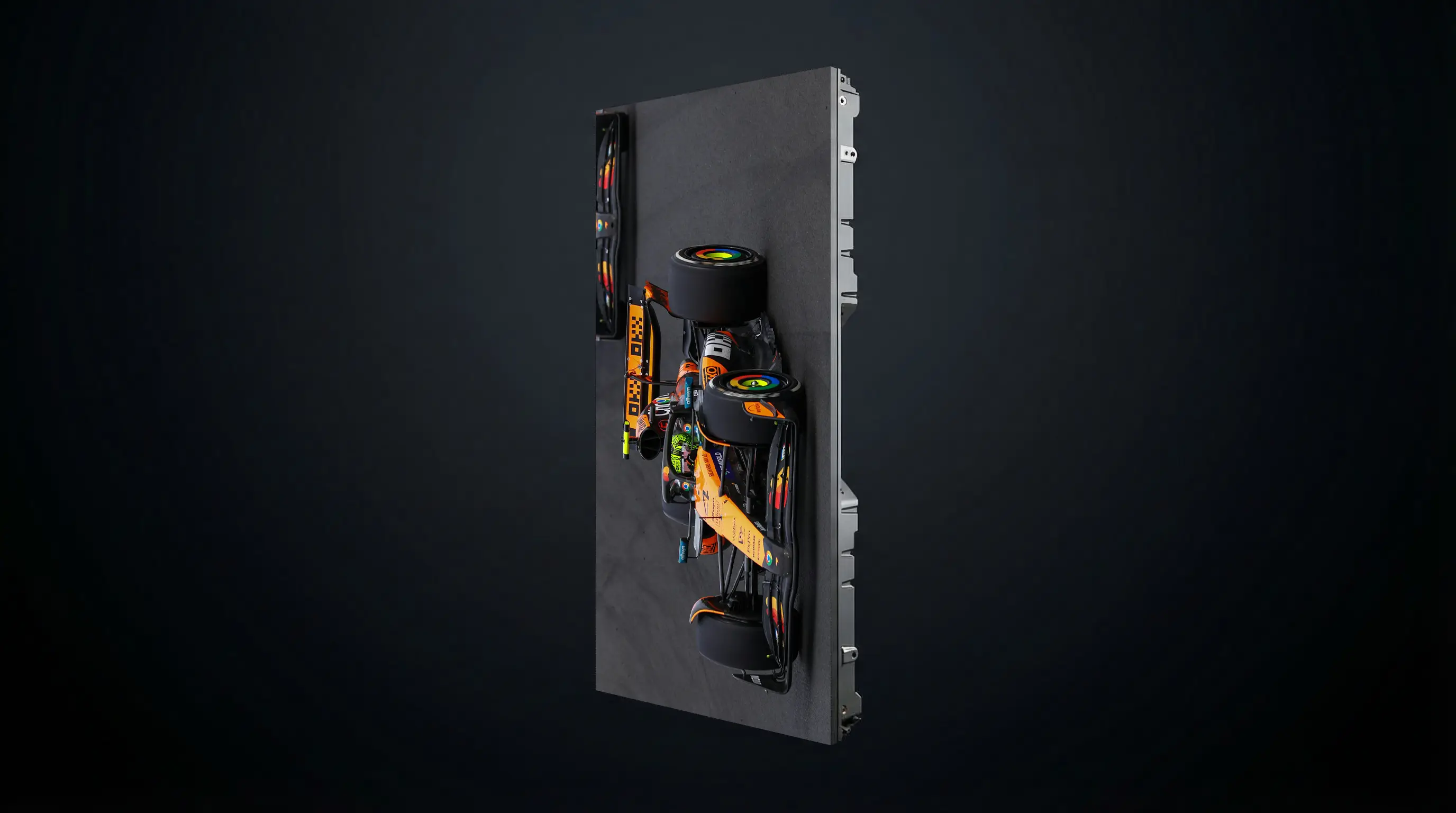

High Resolution

R5 Plus Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

R5 Plus Grayscale Comparison Image


Low Grayscale



High Grayscale

Product Specification

Item Indoor
Pixel Pitch 1.56 1.95 2.604 2.976 3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD1515 SMD2121
Density(dots/m2) 409600 262144 147456 112896 65536
Brightness 650~1000 nits 650~1000 nits 650~1000 nits 650~1000 nits 700~1300 nits
IP rating IP45

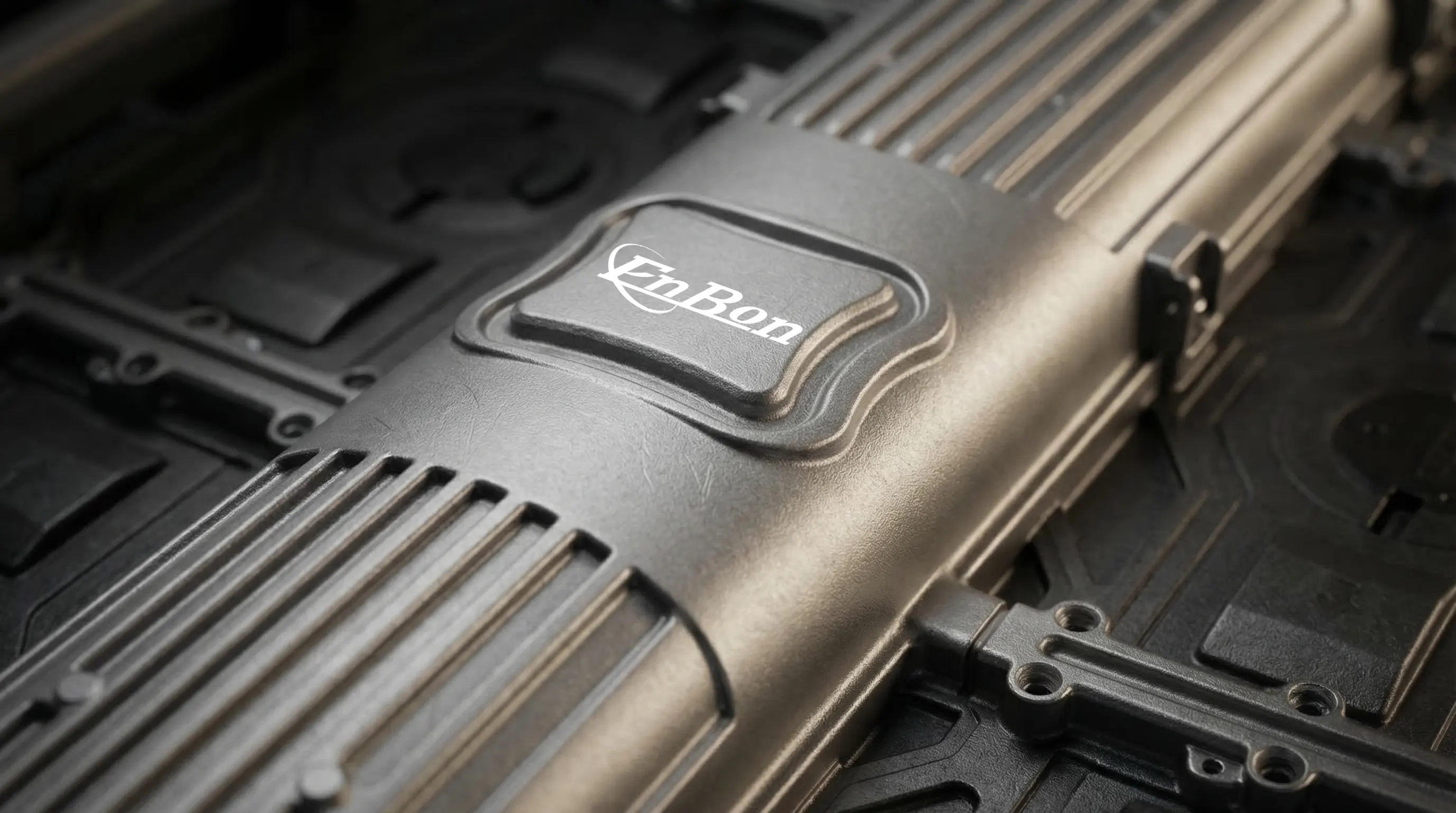

Cabinet Materiel Die-casting Aluminum
Scan 40 scan 32 scan 32 scan 28 scan 16 scan
Module weight 0.5 kg
Cabinet Weight 15 kg
Module size(mm) 250*250
Cabinet size(mm) 500*1000*85
Module pixel 160*160 128*128 96*96 84*84 64*64
Cabinet pixel 320*640 256*512 192*384 168*336 128*256
Max Power 550 w/sqm
Average Power 185 w/sqm
Viewing Angle Horizontal 140(+70/-70) deg, Vertical 140(+70/-70)deg
Control way Synchronous / Asynchronous
Gray Scale 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃
Item Outdoor
Pixel Pitch 2.604 2.976 3.91
LED lamp SMD1415 SMD1415 SMD1921
Density(dots/m2) 147456 112896 65536
Brightness 3500~4500 nits 3500~4500 nits 3500~4500 nits
IP rating IP65
Cabinet Materiel Die-casting Aluminum
Scan 24 scan 21 scan 16 scan
Module weight 0.5 kg
Cabinet Weight 16 kg
Module size(mm) 250*250
Cabinet size(mm) 500*1000*85
Module pixel 96*96 84*84 64*64
Cabinet pixel 192*384 168*336 128*256
Max Power 680 w/sqm
Average Power 230 w/sqm
Viewing Angle Horizontal 140(+70/-70) deg, Vertical 140(+70/-70)deg
Control way Synchronous / Asynchronous
Gray Scale 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


LED Module
Pixel Pitch Indoor:1.56,1.95,2.604,2.976,3.91
Outdoor:2.604,2.976,3.91
LED lamp Indoor: SMD1212/1515/2121
Outdoor: SMD1415/1921
Brightness Indoor: 650~1000 nits
Outdoor: 3500~4500 nits
Module pixel Indoor:160*160/128*128/96*96/84*84/64*64(dots)
Outdoor: 96*96/84*84/64*64(dots)
Cabinet pixel Indoor: 320*640/256*512/192*384/168*336/128*256(dots)
Outdoor: 192*384/168*336/128*256(dots)

Appearance
Module size Indoor: 250*250mm
Outdoor:250*250mm
Cabinet size Indoor: 500*1000*85mm
Outdoor: 500*1000*85mm
Module weight Indoor: 0.5kg
Outdoor: 0.5kg
Cabinet Weight Indoor: 15kg
Outdoor:16kg

Working Environment
Work humidity 10％ ～ 90％
Work temperature ﹣20 ～﹢65℃

System parameter
Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit

Power
Max Power Indoor: 550w/sqm
Outdoor: 680w/sqm
Average Power Indoor: 185w/sqm
Outdoor: 230w/sqm

Waterproof grade
IP rating Indoor : IP45         Outdoor: IP65

Control system
Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70)
V140(+70/-70)deg
Scan Indoor:40/32/32/28/16(scan)
Outdoor:24/21/16(scan)

Material density
Density Indoor:409600/262144/147456/112896/65536dots/m2
Outdoor:147456/112896/65536dots/m2
Cabinet Materiel Die-casting Aluminum
