| Item | Indoor | ||
|---|---|---|---|
| Pixel Pitch | 1.9 | 2.5 | |
| LED lamp | SMD1515 | SMD2121 | |
| Density(dots/m2) | 276676 | 160000 | |
| Brightness | ≤800 nits | ≤800 nits | |
| IP rating | Front IP55/Rear IP32 | Front IP55/Rear IP32 | |
| Cabinet Materiel | Die-casting Aluminum | ||
| Scan | 64scan | 32scan | |
| Module weight | 0.55kg | 0.55kg | |
| Cabinet Weight | 6.75kg | 6.75kg | |

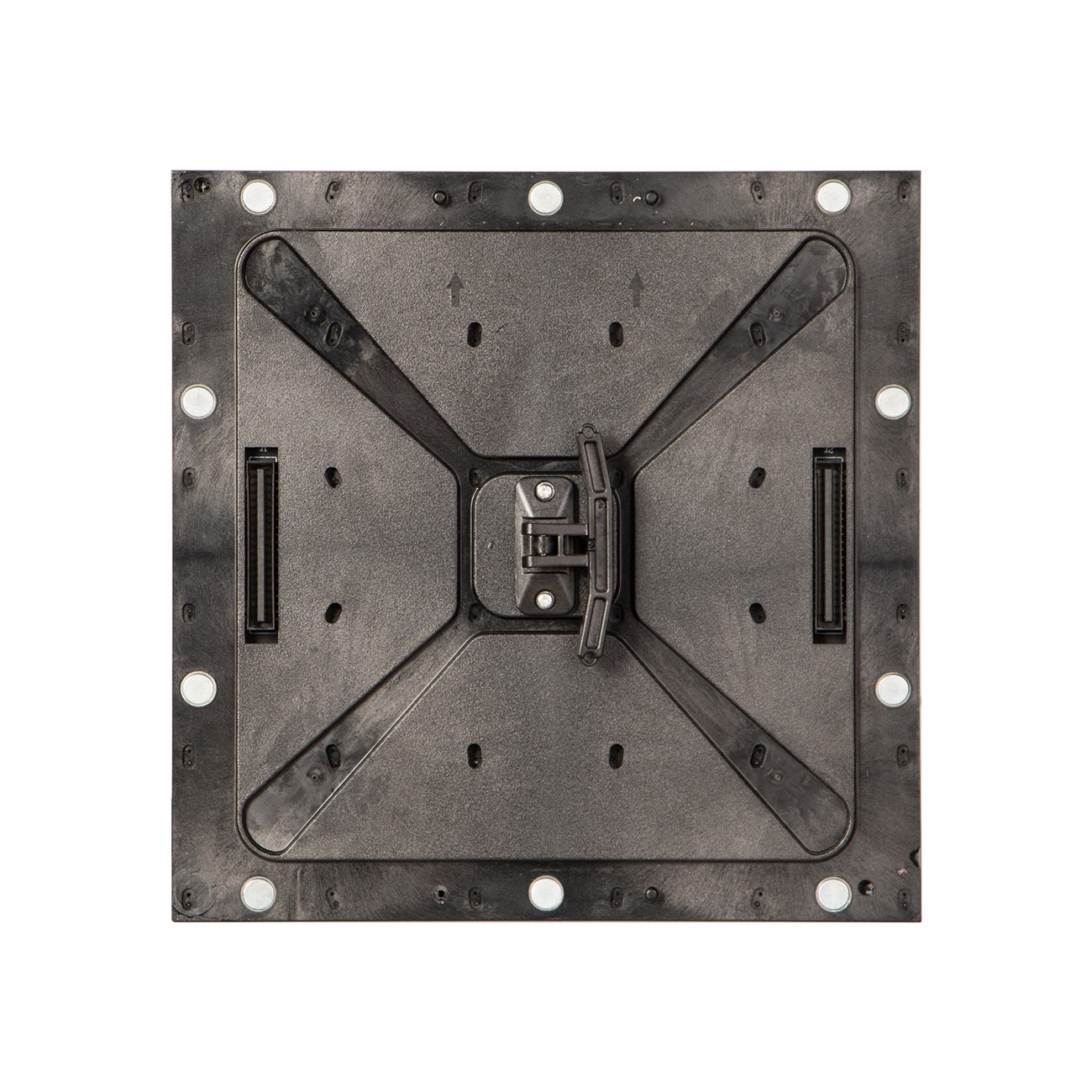

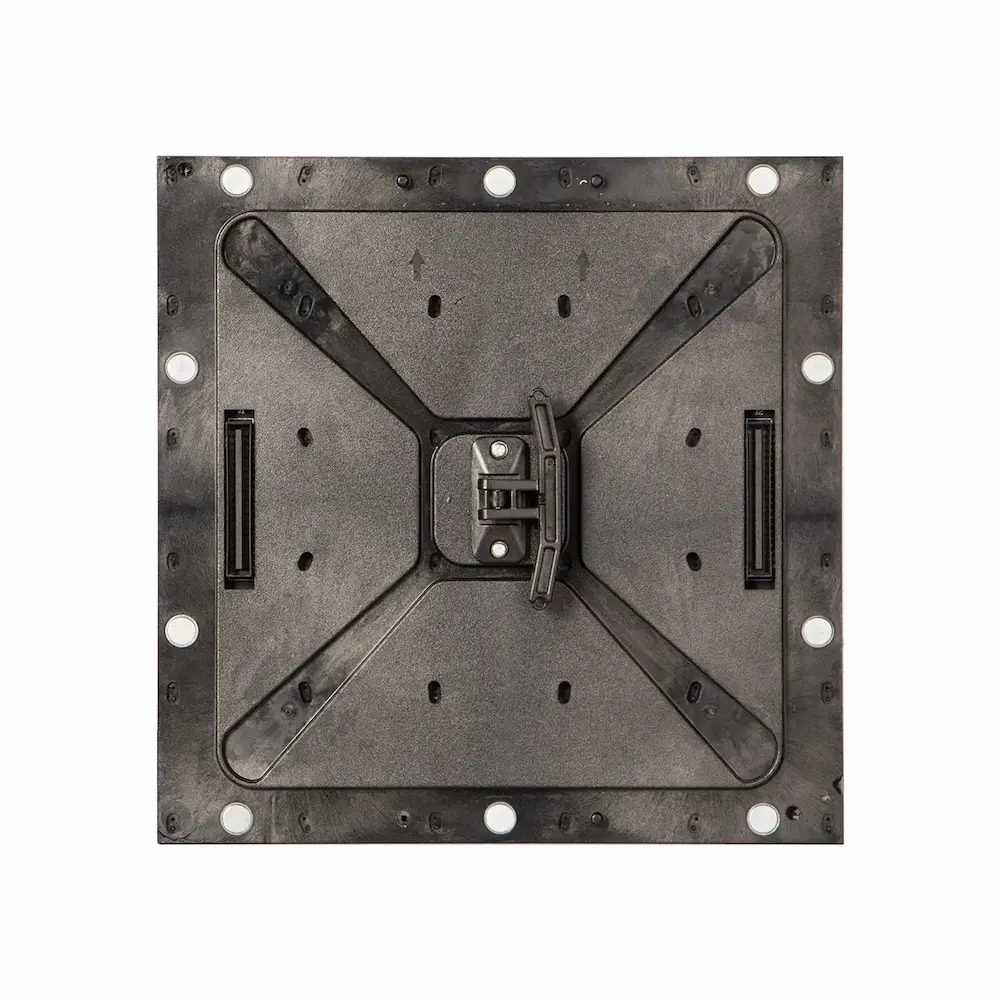

| Module size(mm) | 248*248 | 248*248 | |

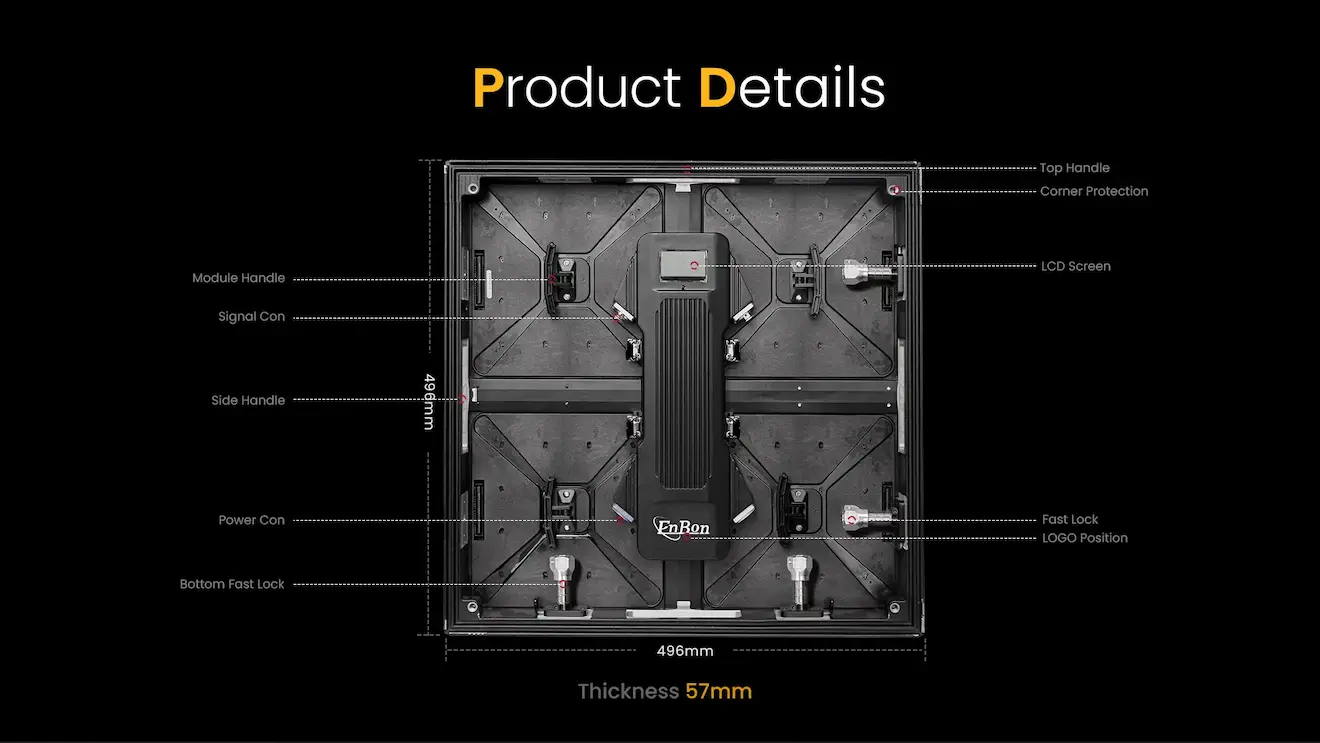

| Cabinet size(mm) | 496*496*57 | 496*496*57 | |
| Module pixel | 128*128dots | 96*96dots | |
| Cabinet pixel | 260*260dots | 198*198dots | |
| Max Power | 600w/sqm | 600w/sqm | |
| Average Power | 360w/sqm | 360w/sqm | |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||
| Control way | synchronous/asynchronous | ||
| Gray Scale | 16bit | ||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||
| Work humidity | 10% ~ 90% | ||
| Work temperature | ﹣20 ~﹢65℃ | ||
LED Module |
|
| Pixel Pitch | P1.9,P2.5 |
|---|---|
| LED lamp | SMD1515/2121 |
| Brightness | ≤800 nits |
| Module pixel | 128*128/96*96dots |
| Cabinet pixel | 260*260/198*198dots |
Appearance |
|
| Module size | 248*248mm |
| Cabinet size | 496*496*57mm |
| Module weight | 0.55kg |
| Cabinet Weight | 6.75kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | 600w/sqm |
| Average Power | 360w/sqm |
Waterproof grade |
|
| IP rating | Front IP55/Rear IP32 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | 64scan, 32scan |
Material density |
|
| Density | 276676/160000(dots/m2) |
| Cabinet Materiel | Die-casting Aluminum |
