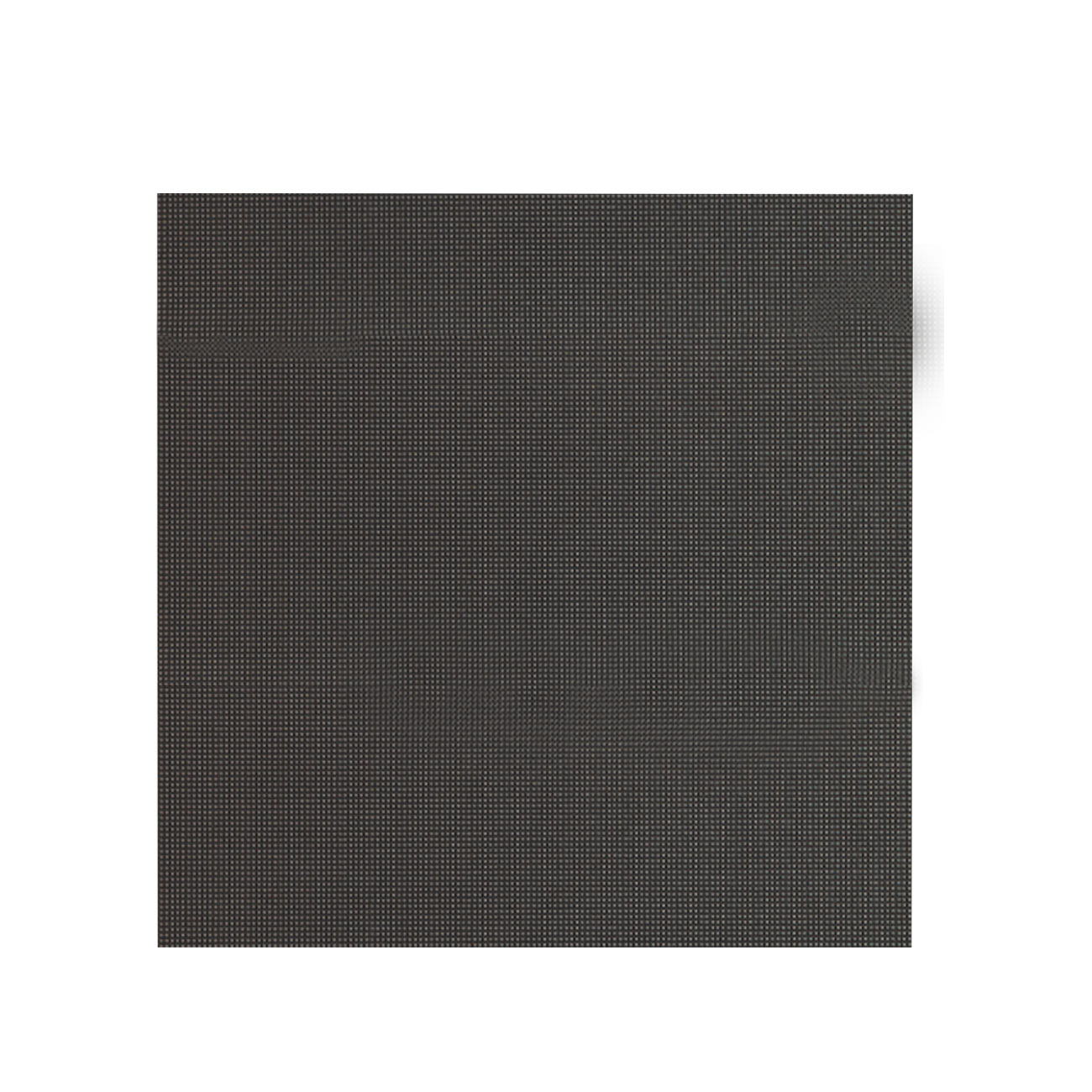

Enbon FS Series Small Pitch Indoor LED Display - Full Front Service 1

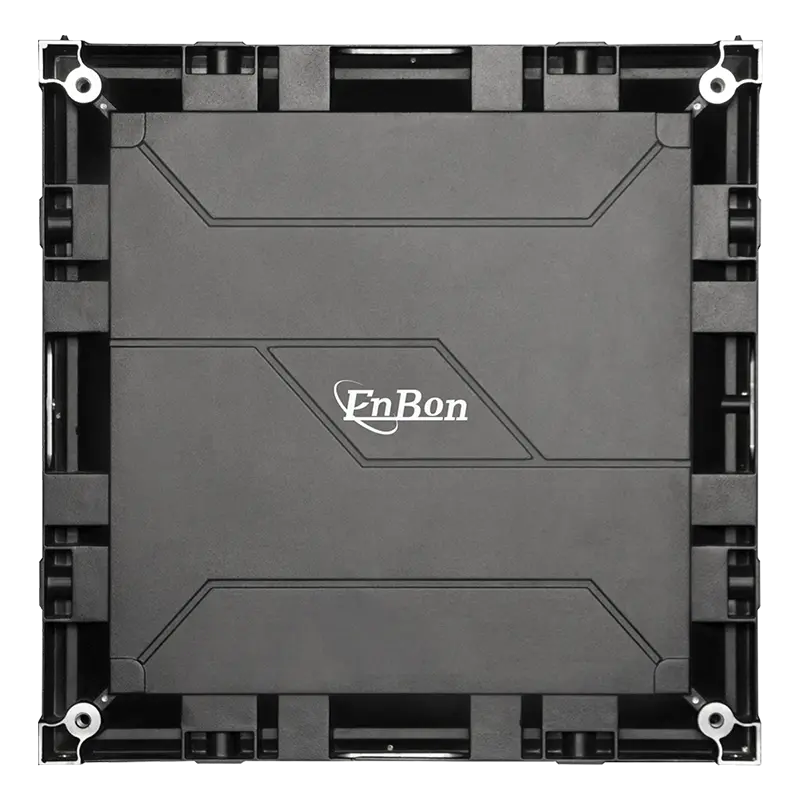

Enbon FS Series Small Pitch Indoor LED Display - Full Front Service 2

Enbon FS Series Small Pitch Indoor LED Display - Full Front Service 3

FS Series Hot

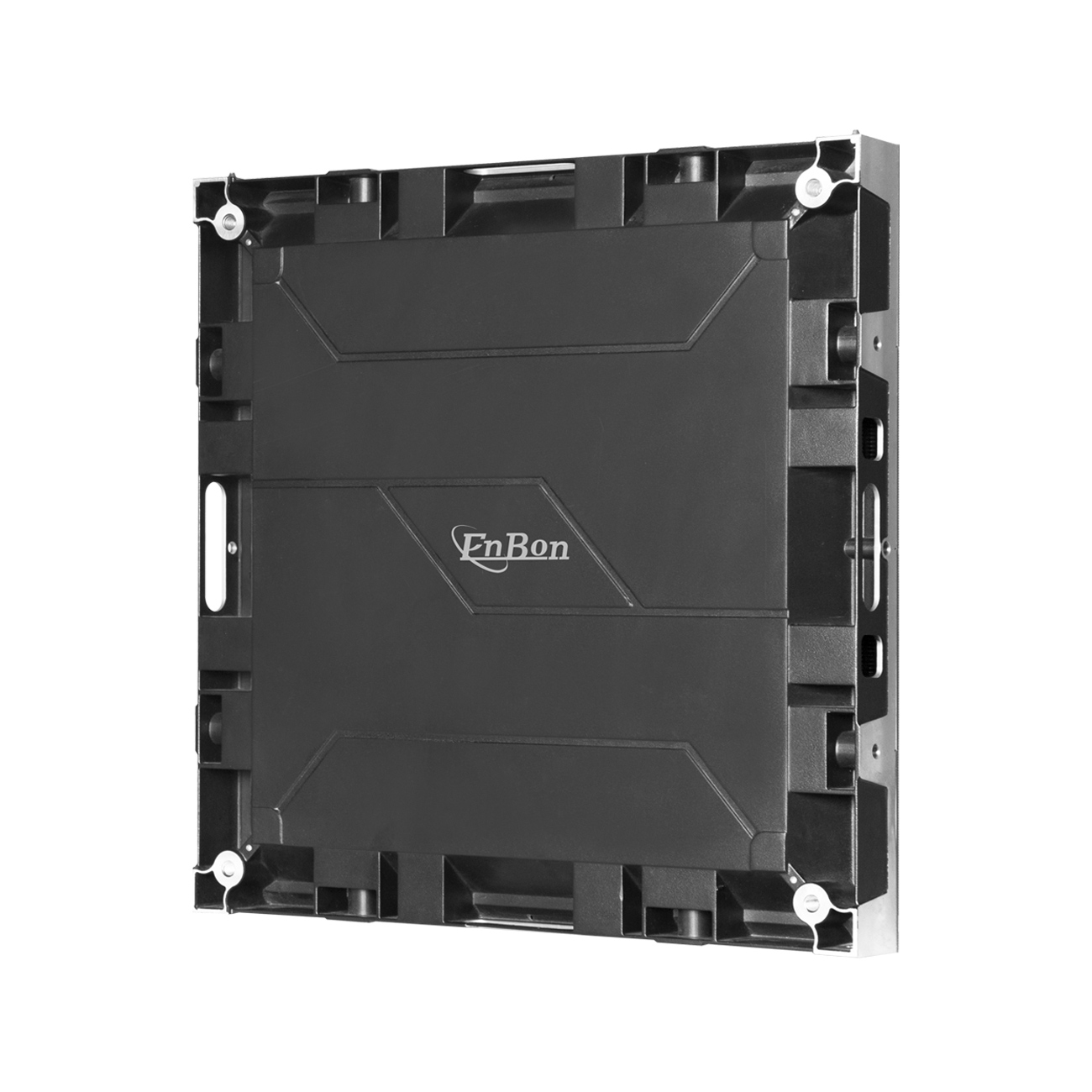

Enbon FS Series Small Pitch Indoor LED Display - Full Front Service

Enbon FS Series small pitch indoor LED display adopts full front maintenance, die-casting aluminum cabinet (5.5kg), P1.579-P2.5 pixel pitch, 3840/7680Hz high refresh rate & IP45 front protection, perfect for metro, KTV, cinema and VIP rooms.

Easy maintaince and service
Enbon FS could do with P1.5 P1.8 P2.5 P3.0
Perfect screen flatness
Support fully front service
240mm*240mm size module
480mm*480mm size cabinet
Different modules use same HUB
Enbon FS could make 2K 4K 8K Vision studio

P2.5IP45P1.579P1.875Die-casting AlFull Front Maint3840Hz2700nits

Description

Indoor Fixed FS Series

Indoor Permanent Totally Front Maintenace LED Screen

Perfect Flatness

Refresh 3840Hz

Uitra light

Performance

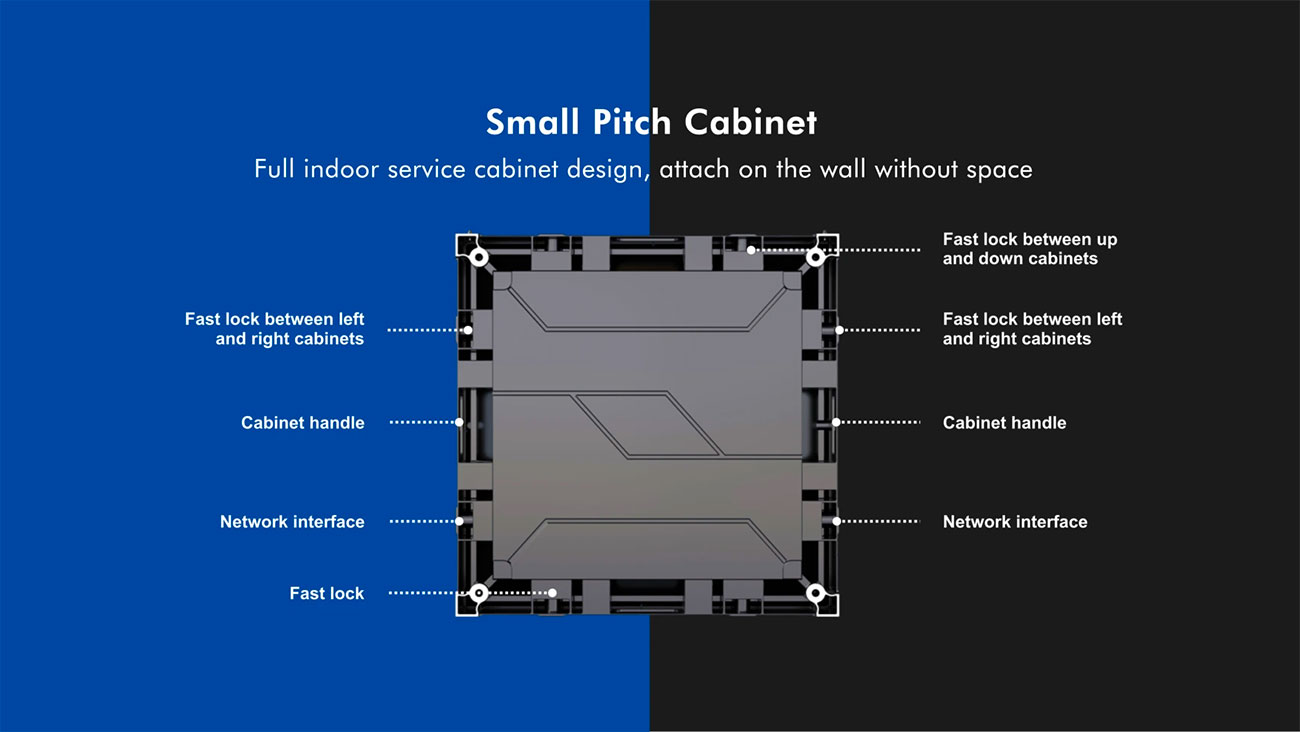

Product Details

Corner Protection

Side Handle

Fast lock

Top Fast Lock

Top Handle

LOGO Position

Anti-collission Device

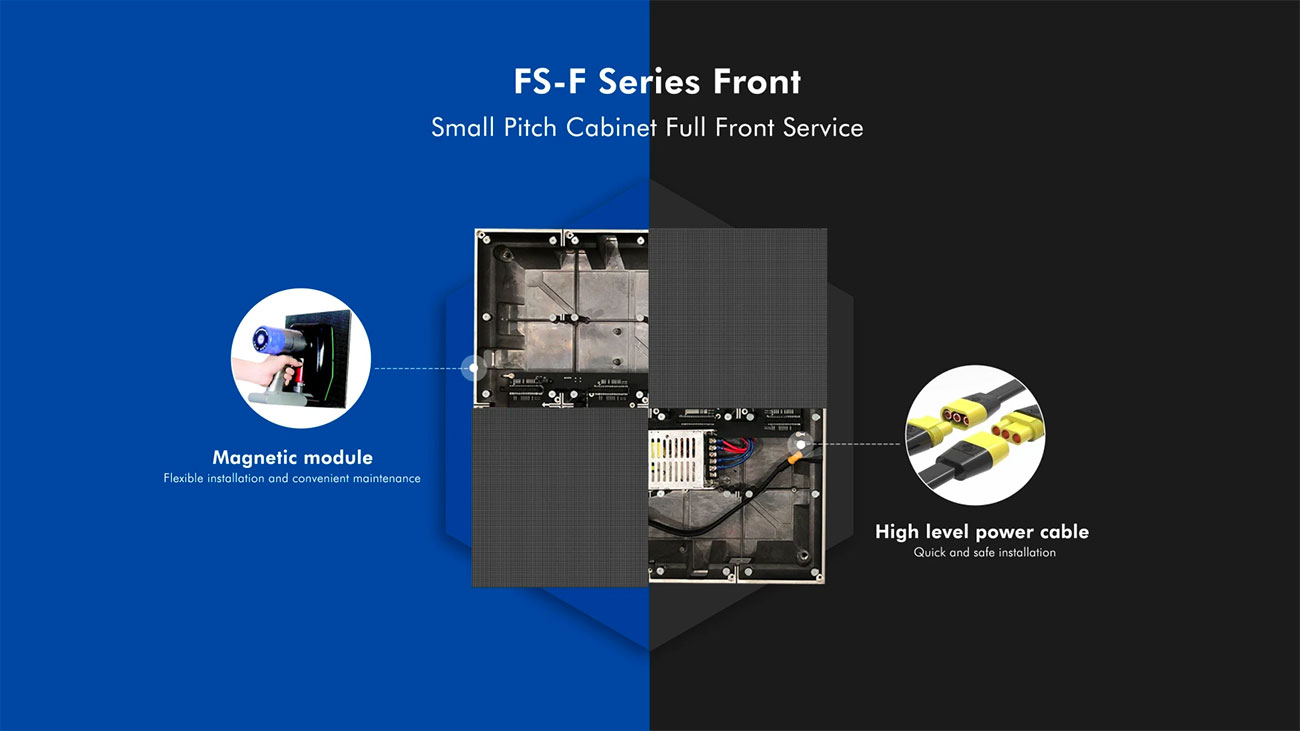

Maintenance Method

Support Full Front Maintenance
Can Be installed Directly On The Wall

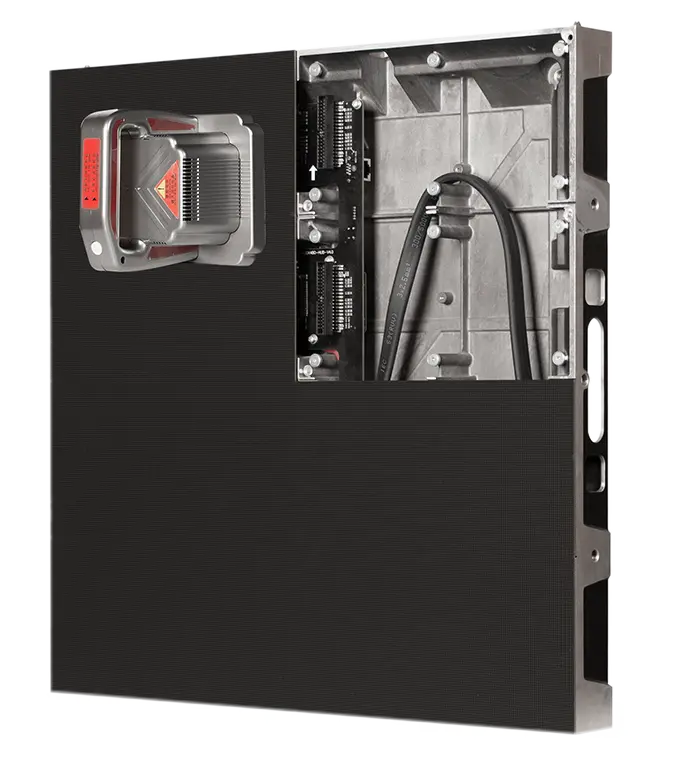

Front Maintenance

Cable-less Splicing

Cableless Connection Between Module And Cabinets
Support Front Maintenance And Cableless installation

Handles

Corner Cover

Power Box

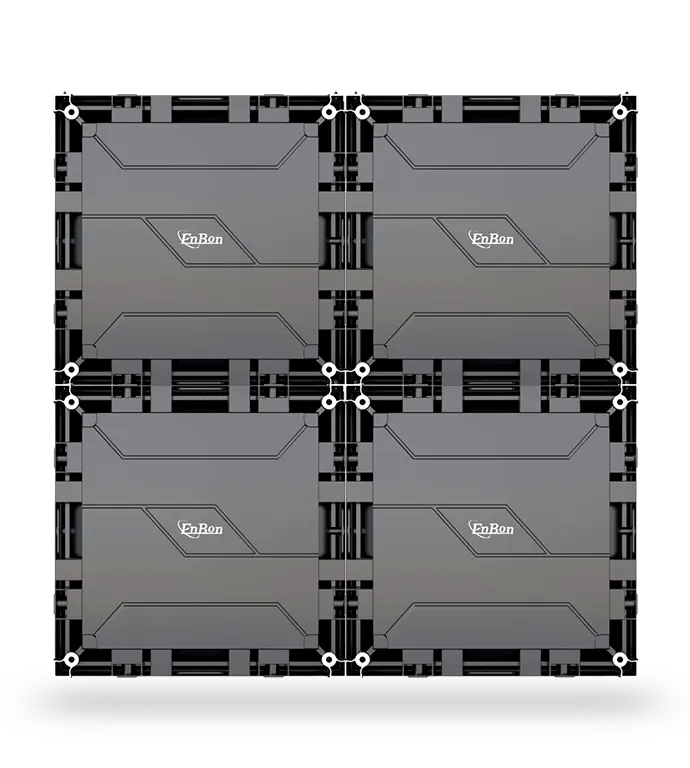

Fast Lock Between
Left and Right Cabinets

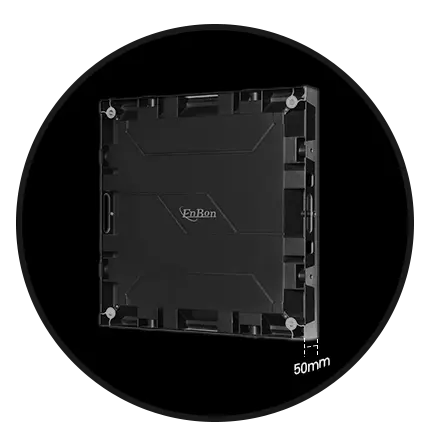

Super Lightweight

Aluminum Panel 5.5kg/pcs With Thickness is 5Omm

Weight 5.5kg

Thickness 50mm

High Resolution

Low Refresh Rate

High Refresh Rate

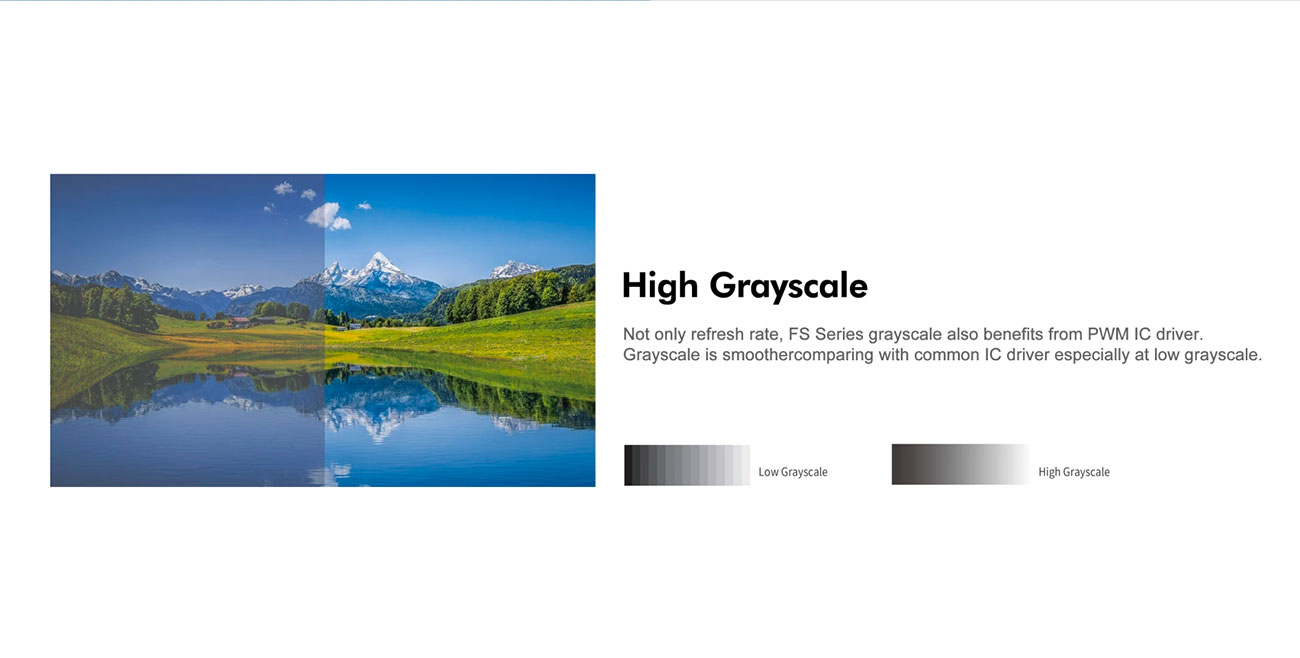

Low Grayscale

High Grayscale

Installation Case

Embedded Installation

Flat Wall Mounted

Product Specification

Item	Indoor
Pixel Pitch	1.579	1.875	2.5	3
LED lamp	SMD1212	SMD1515	SMD2020	SMD2020
Density(dots/m²)	401111	284444	160000	111111
Scan	38 scan	64 scan	32 scan	40 scan
Brightness	≤600 nits	≤600 nits	≥700 nits	≥600 nits
IP rating	Front IP45/Rear IP30
Cabinet Materiel	Die-casting Aluminum
Refresh Rate(Hz)	3840 / 7680
Cabinet Weight	5.5 kg
Module Size (mm)	240*120
Cabinet Size (mm)	48048062
Module Pixel	152*76 dots	128*128 dots	96*96 dots	80*80 dots
Cabinet Pixel	304*304 dots	256*256 dots	192*192 dots	160*160 dots
Max Power	550 w/sqm
Average Power	185 w/sqm
Receiving Card	Novastar A5S Plus/Novastar A10S Pro
Maintenance Method	Full Front Maintenance
Connection	Hardlink
Viewing Angle	H140(+70/-70) deg V140(+70/-70)deg
Control way	Synchronous / Asynchronous
Gray Scale	13-16 bit
Operating System	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Humidity	10% - 90%
Work Temperature	-20 ~ +65℃


LED Module
Pixel Pitch	P1.579, P1.875, P2.5, P3
LED lamp	SMD1212/SMD1515/SMD2020/SMD2020
Density(dots/m²)	401111/284444/160000/111111
Scan	38/64/32/40 scan
Brightness	≤600 nits/≤600 nits/≥700 nits/≥600 nits
Module Pixel	15276/128128/9696/8080(dots)
Cabinet Pixel	304304/256256/192192/160160(dots)
Appearance
Module Size (mm)	240*120
Cabinet Size (mm)	48048062
Cabinet Weight	5.5 kg

Working Environment
Work Humidity	10% - 90%
Work Temperature	-20 ~ +65℃

System parameter
Operating System	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Gray Scale	13-16 bit

Power
Max Power	550 w/sqm
Average Power	185 w/sqm

Waterproof grade
IP rating	Front IP45/Rear IP30
Control system
Control way	Synchronous / Asynchronous
Viewing Angle	H140(+70/-70)deg V140(+70/-70)deg
Refresh Rate	3840 / 7680 Hz
Receiving Card	Novastar A5S Plus/Novastar A10S Pro
Maintenance Method	Full Front Maintenance
Connection	Hardlink
Material & Density
Cabinet Materiel	Die-casting Aluminum
