| Item | Indoor | |||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.604 | 2.976 | 3.91 | |||
| LED lamp | SMD2020 | SMD2020 | SMD2020 | |||
| Density | 147456dots/m2 | 112896dots/m2 | 65536dots/m2 | |||
| Brightness | 800-1000nits | 800-1000nits | 800-1000nits | |||
| IP rating | IP31 | IP31 | IP31 | |||
| Cabinet Materiel | Iron | |||||
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | |||
| Scan | 24scan | 21scan | 16scan | |||
| Cabinet weight | 0.5kg | 0.5kg | 0.5kg | |||
| Module size | 250*250mm | 250*250mm | 250*250mm | |||
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | |||
| Adviced viewing | 96*96dots | 84*84dots | 64*64dots | |||
| Input Voltage | 192*192dots | 168*168dots | 128*128dots | |||
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | |||
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | |||
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||

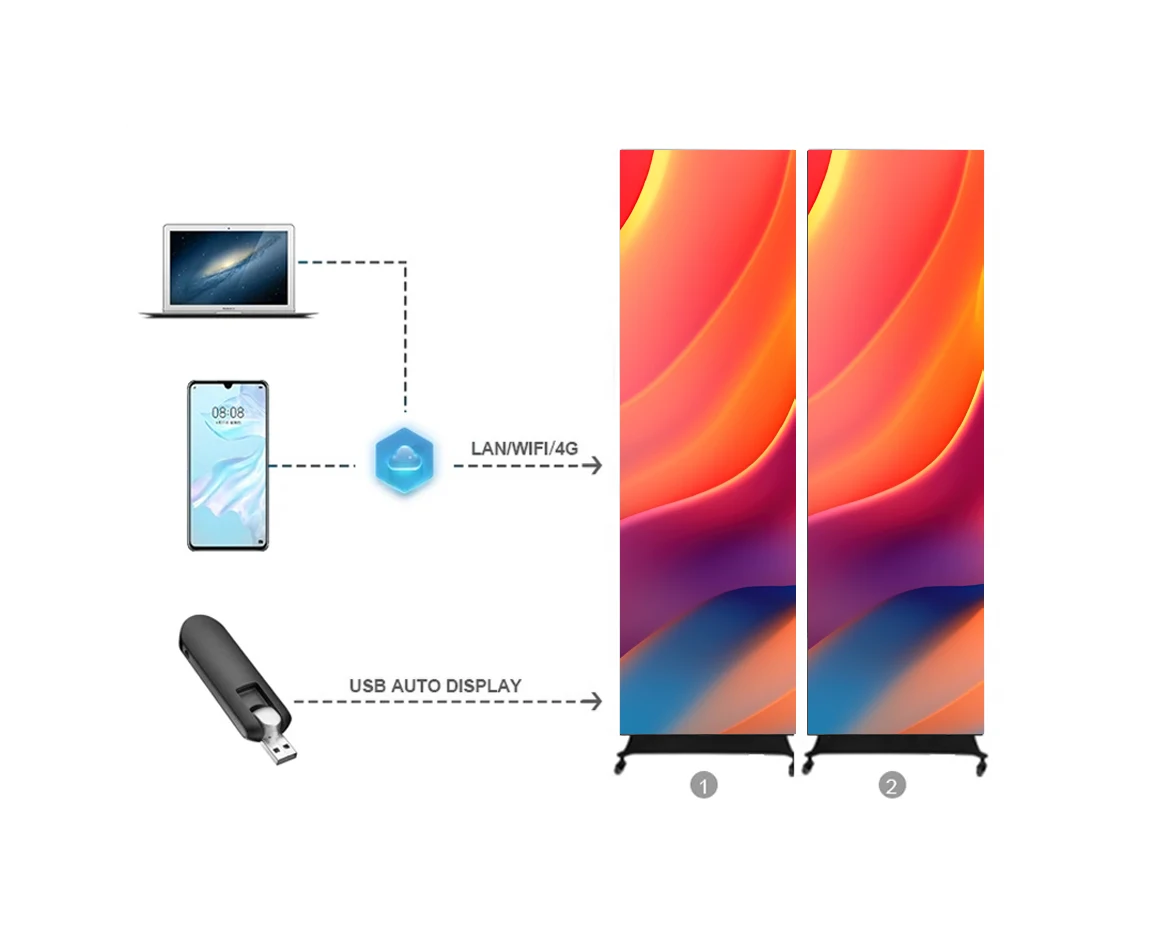

| Control way | synchronous/asynchronous | |||||
| Gray Scale | 16 bit | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10% ~ 90% | |||||
| Work temperature | ﹣20 ~﹢65℃ | |||||
LED Module |
|
| Pixel Pitch | Indoor: 2.604,2.976, 3.91 Outdoor: 3.91, 4.81 |
|---|---|
| LED lamp | Indoor: SMD2020 Outdoor: SMD1921 |
| Brightness | Indoor: 1000nits(P2.604,P2.976),3500nits(P3.91) Outdoor: 3500nits(P3.91,P4.81) |
| Module pixel | Indoor: 96*96 dots(P2.604) 84*84 dots(P2.976) 64*64dots(P3.91) Outdoor: 64*64dots(P3.91) 52*52dots(P4.81) |
| Cabinet pixel | Indoor: 192*192 dots(P2.604) 168*168dots(P2.976) 128*128dots(P3.91) Outdoor: 128*128dots(P3.91) 104*104dots(P4.81) |
Appearance |
|
| Module size | Indoor: 250*250mm(2.604,2.976, 3.91) Outdoor:250*250mm (3.91, 4.81) |
| Cabinet size | Indoor: 500*500*85mm(2.604,2.976, 3.91) Outdoor: 500*500*85mm (3.91, 4.81) |
| Module weight | Indoor: 0.5kg(2.604,2.976, 3.91) Outdoor: 0.5kg(3.91, 4.81) |
| Cabinet Weight | Indoor: 7.5kg(2.604,2.976, 3.91) Outdoor:8kg(3.91, 4.81) |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | Indoor: 500w/sqm(2.604,2.976, 3.91) Outdoor:550w/sqm(3.91, 4.81) |
| Average Power | Indoor: 160w/sqm(2.604,2.976, 3.91) Outdoor: 200w/sqm(P3.91) 160w/sqm(P4.81) |
Waterproof grade |
|
| IP rating | Indoor : IP31 Outdoor: IP65 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | Indoor:32scan (P2.604) 21scan(P2.976) 16scan(P3.91) Outdoor:16scan(P3.91) 13scan(P4.81) |
Material density |
|
| Density | Indoor:147456dots/m2 (P2.604) 112896dots/m2(P2.976) 65536dots/m2(P3.91) Outdoor:65536dots/m2(P3.91) 43264dots/m2(P4.81) |
| Cabinet Materiel | Die-casting Aluminum |
