LED Screen Rental Stage -Enbon R5 Model Arc Lock Design

LED Screen Rental Stage -Enbon R5 Model offers fast lock and arc lock design, modular power control, and stable signal without wire connections
  1. Integrated cabinet design saves maintenance time
  2. Plane lock and arc lock are integrated to support a variety of scene applications
  3. Arc lock support  0°/±2.5°/±5°±7.5°
  4. Modular design of power control cabinet, no wire is needed to connect the module
  5. The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
IP654000nitsP2.604P2.976P3.91P4.81P1.56P1.95

Description

Rental

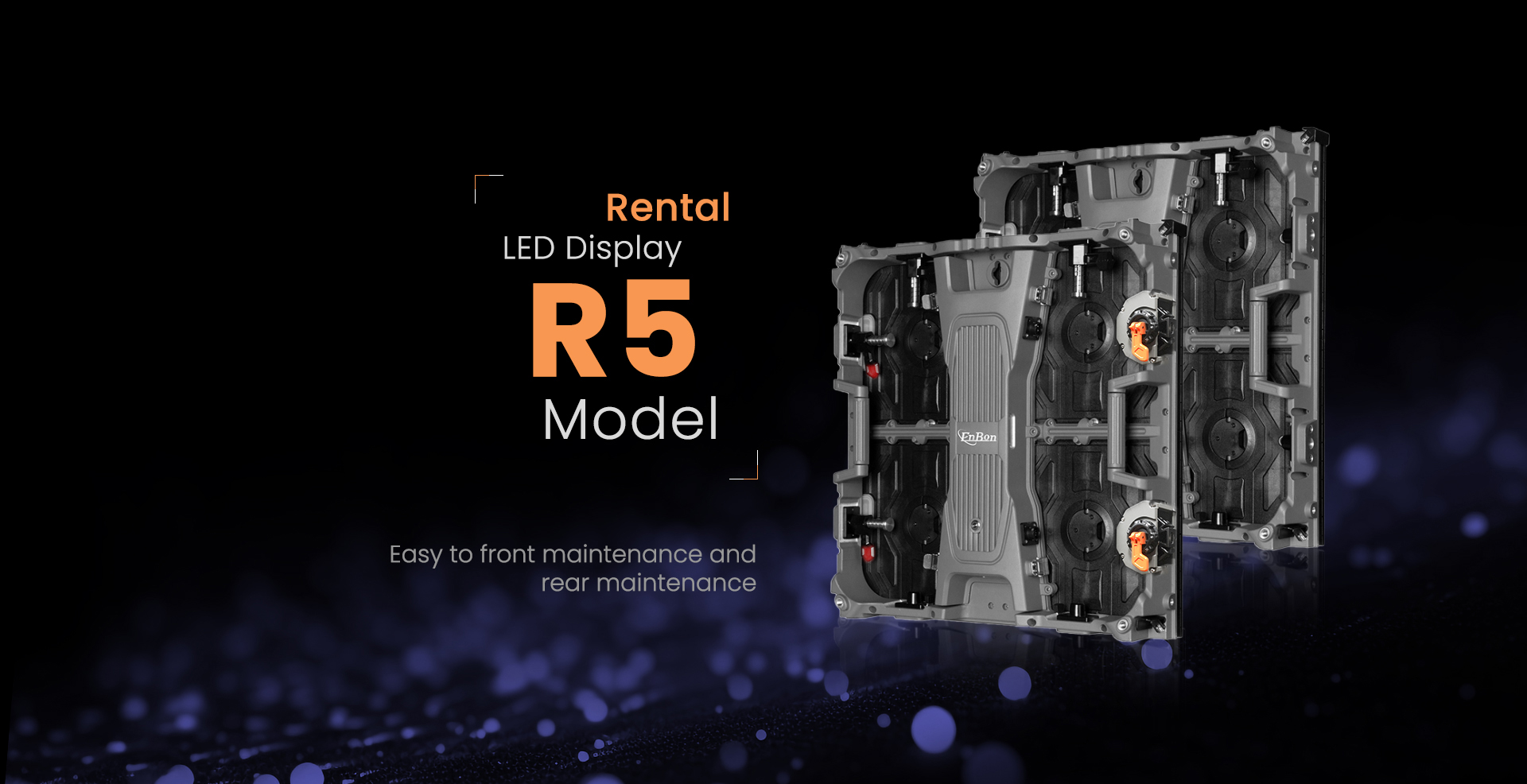

R5 Model

Model

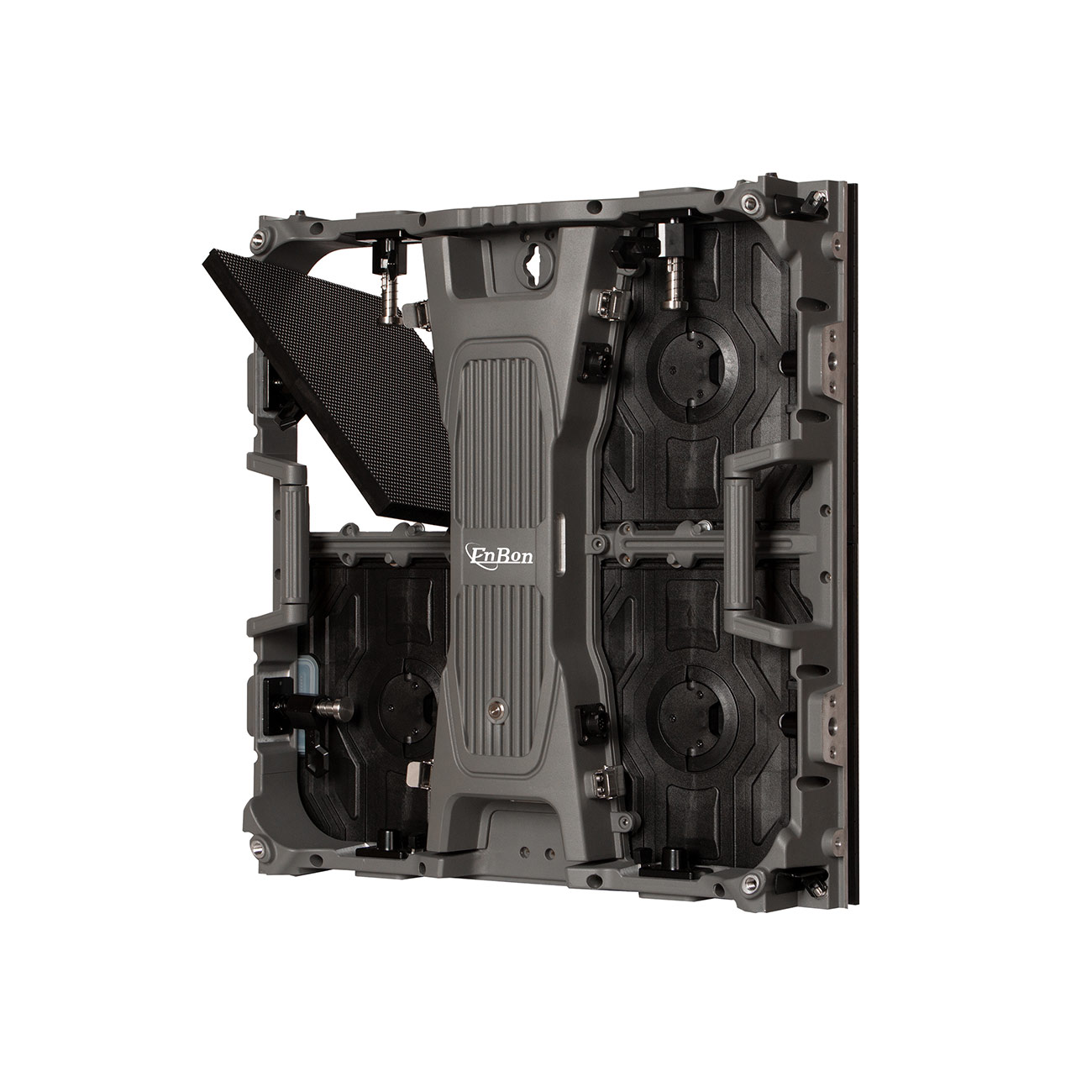

Easy to front maintenance and rear maintenance

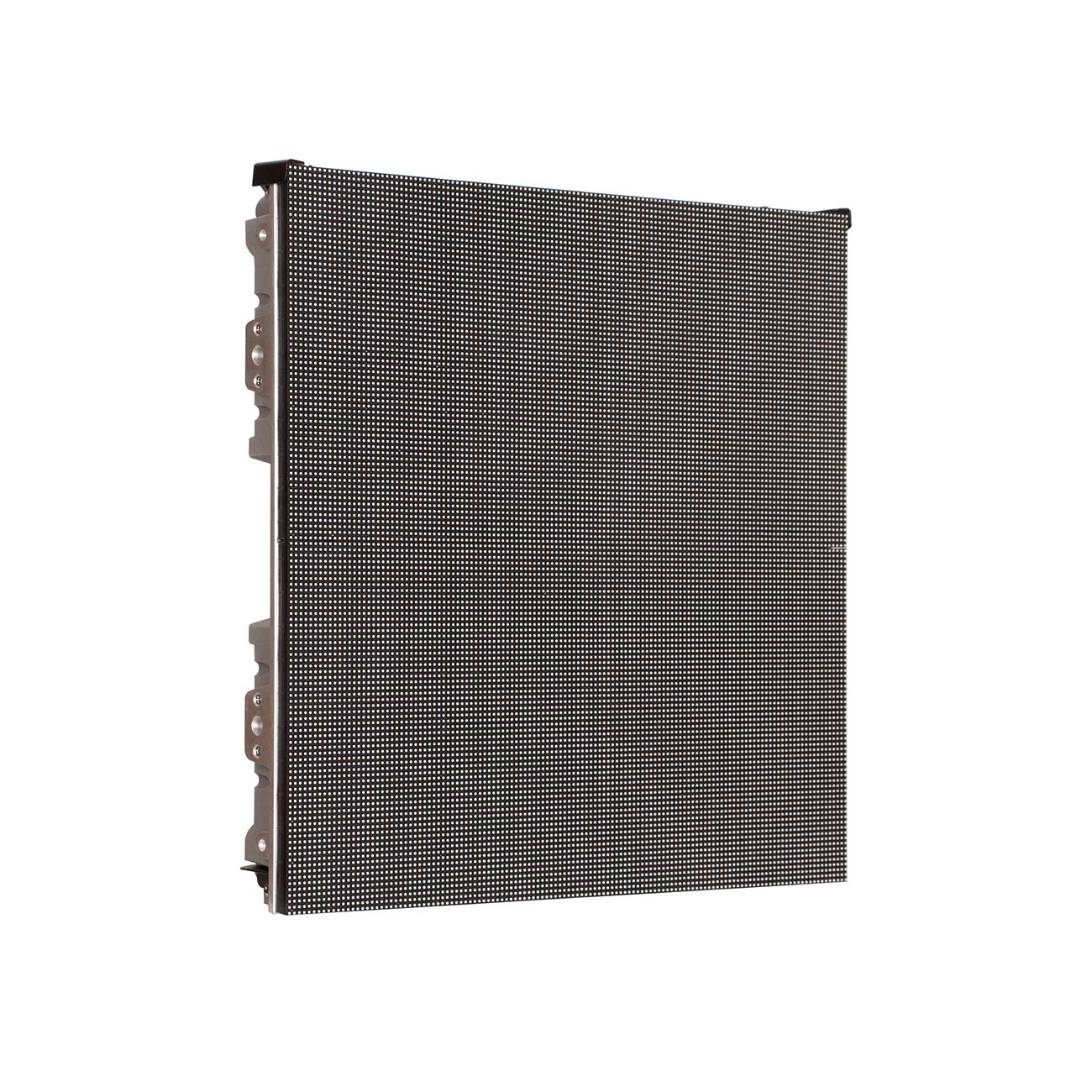

R5 Img
IP65 Waterproof Rating

IP65 Weatherproof

High Refresh Rate

3840Hz Refresh Rate

Lightweight Design

Ultra-Lightweight

Fast-Lock System

Quick-Lock Mechanism

Rental-Ready Design

Rental-Optimized

Enhanced Performance

High Performance

High-Intensity Display

High-Brightness

Slim Profile

Ultra-Slim Design

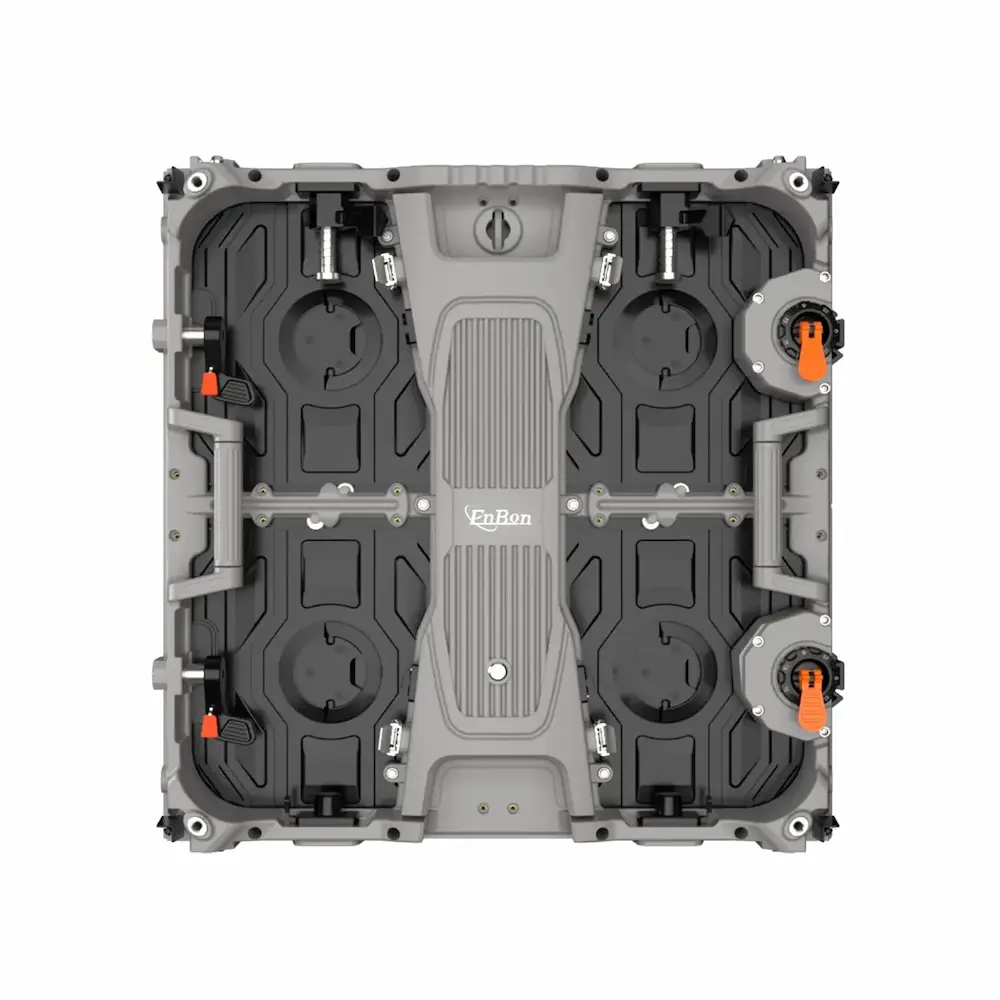

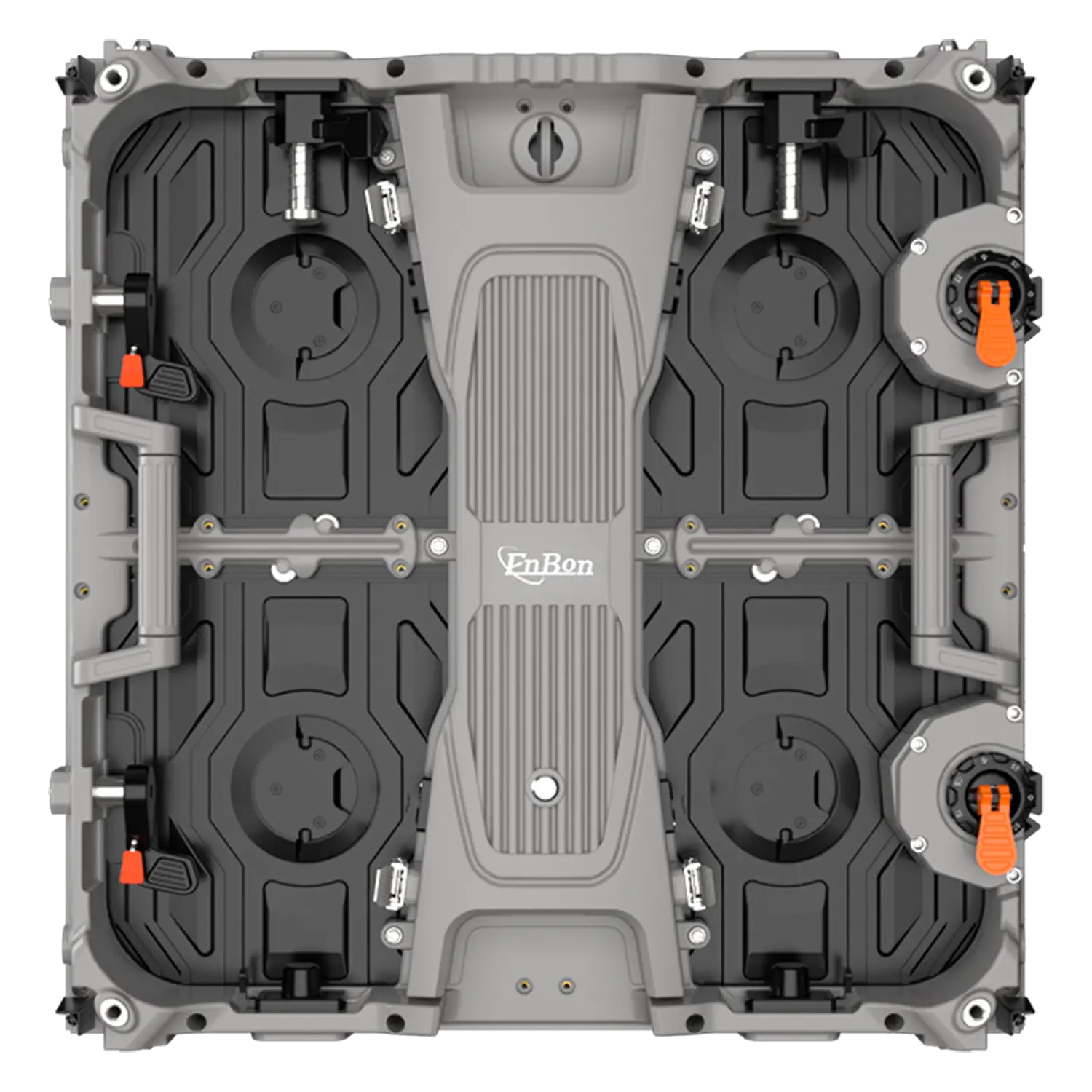

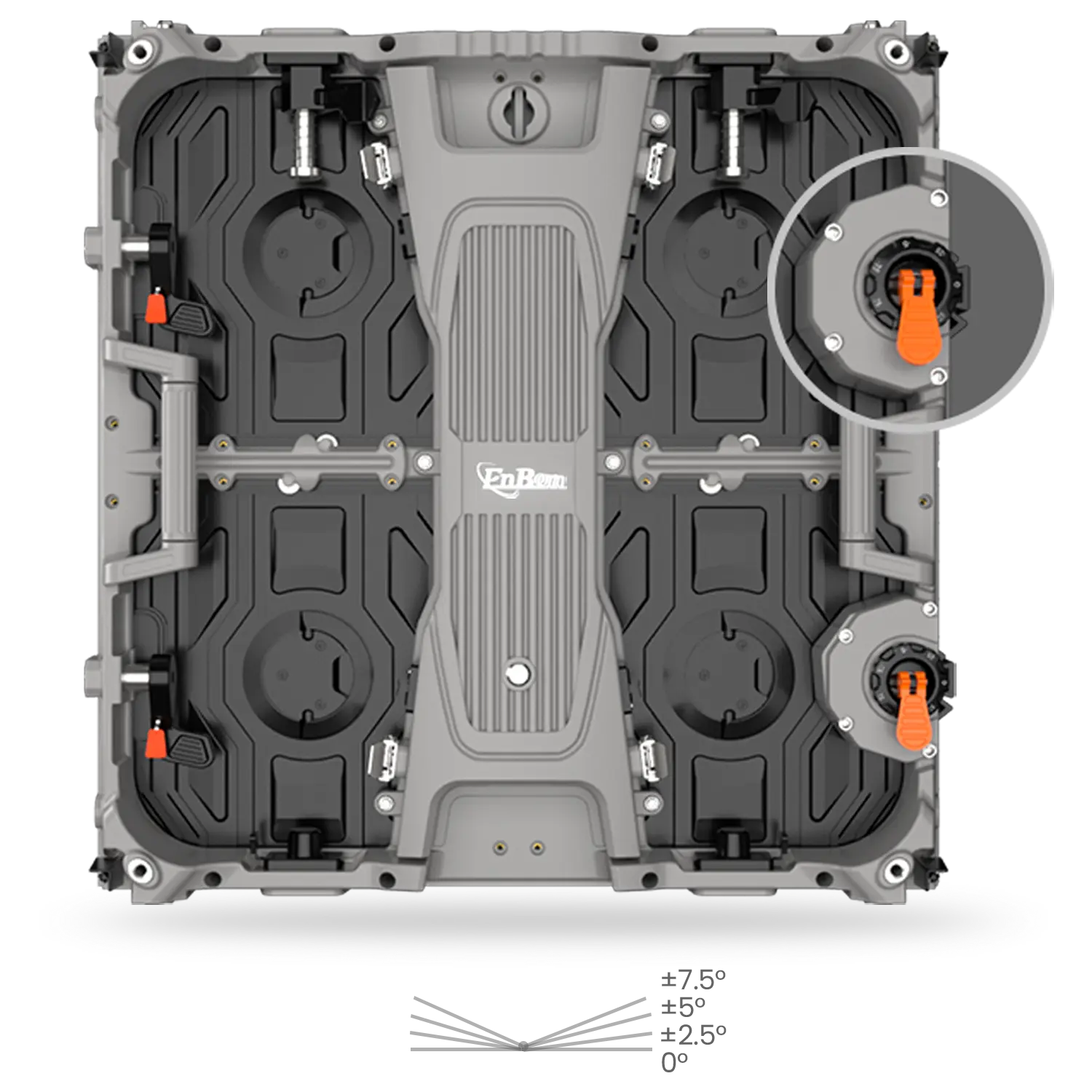

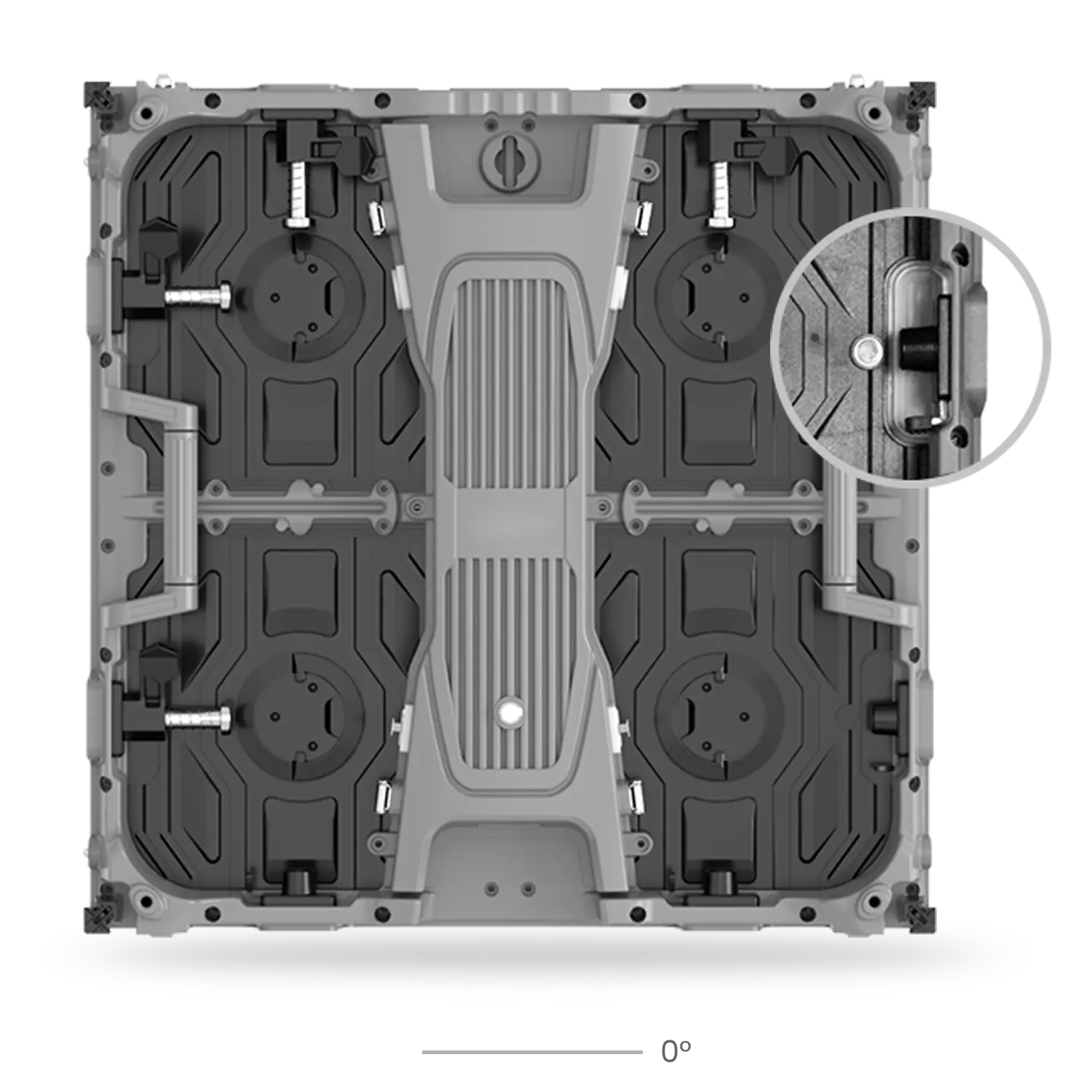

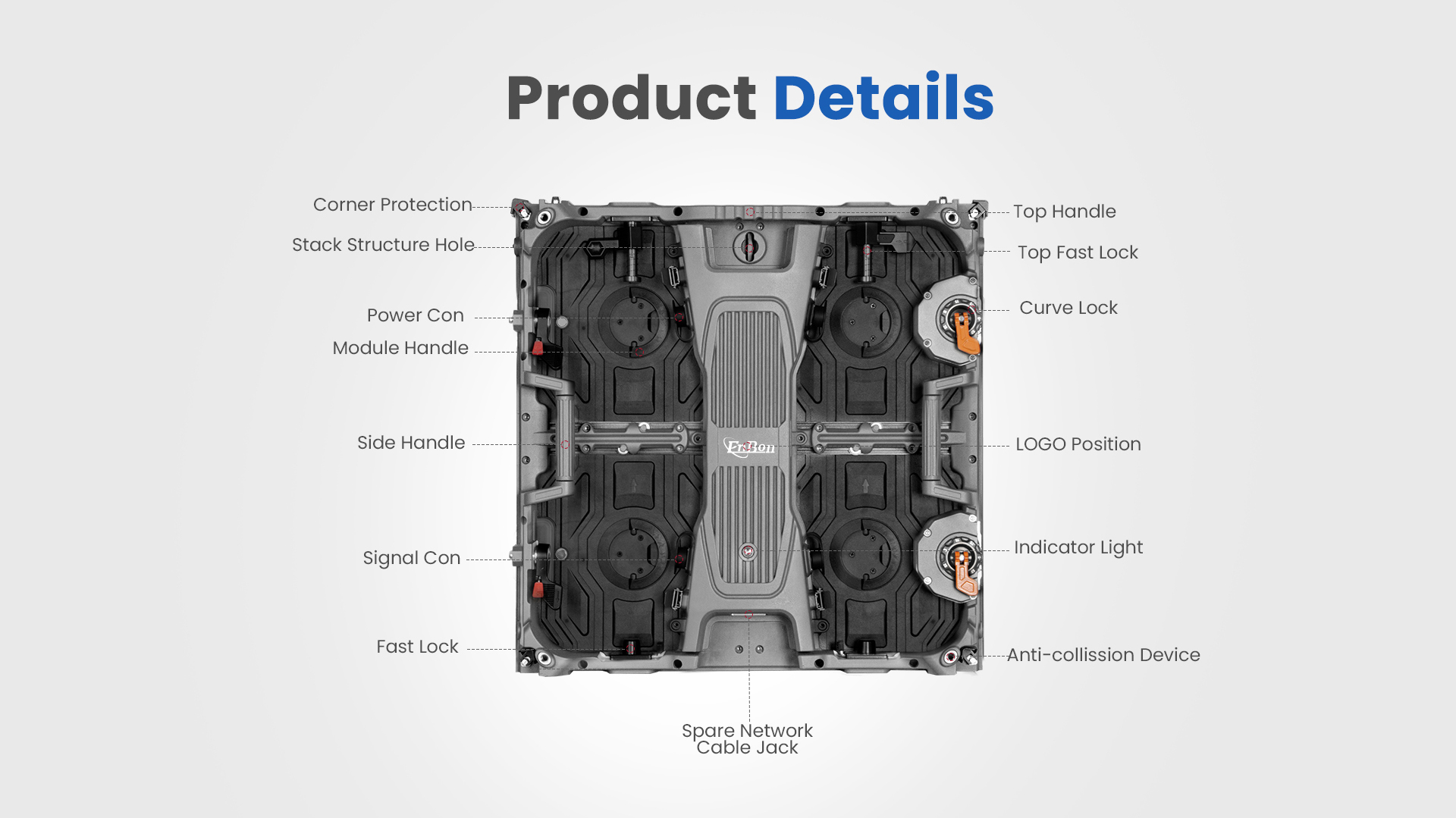

Cabinet Structure

R5 Plus Cabinet Structure Image

Corner Protection



Stack Structure Hole



Power Con



Module Handle



Side Handle



Signal Con



Fast Lock



Top Handle



Top Fast Lock



Curve Lock



LOGO Position



Indicator light



Anti-collission Device

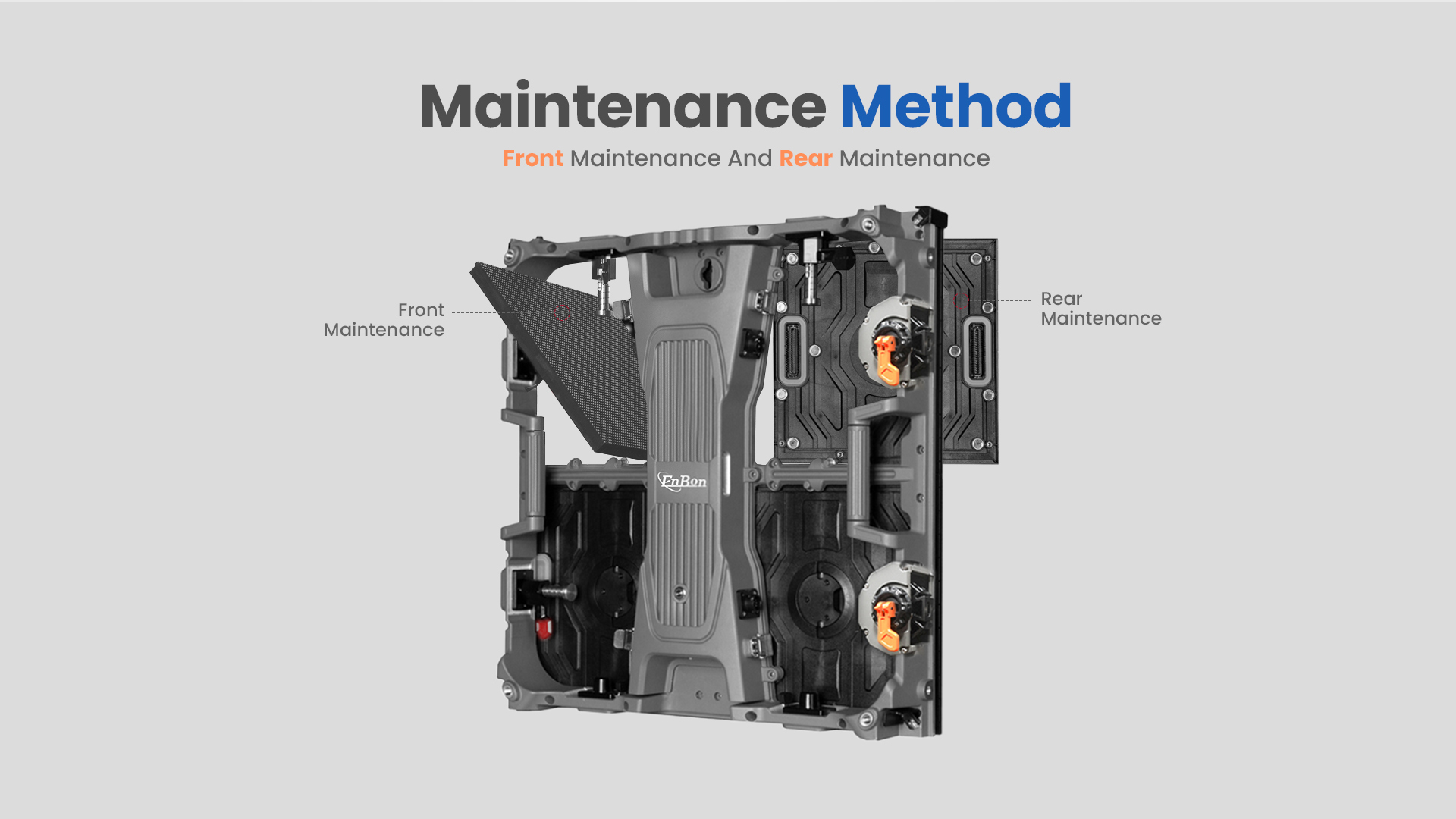

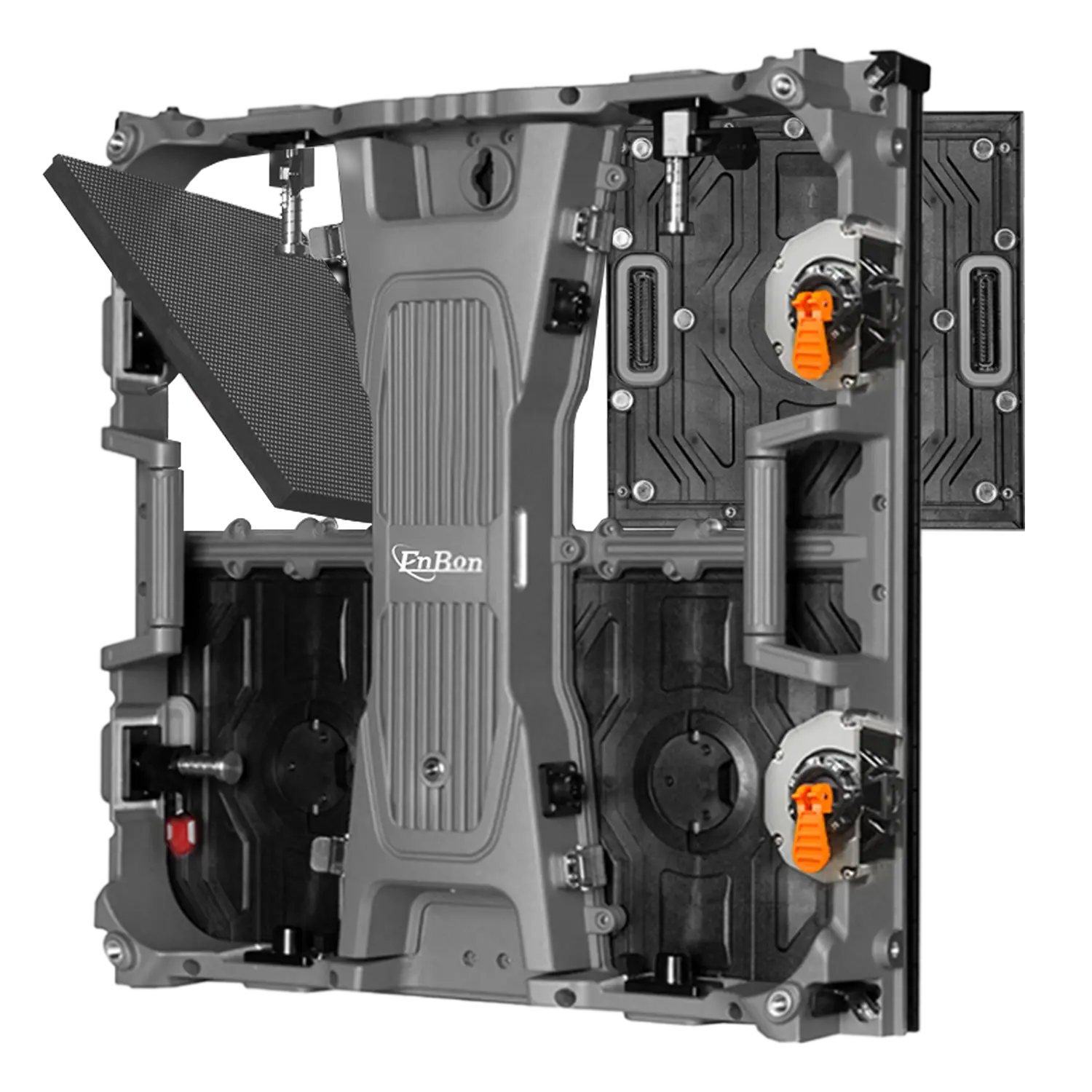

Maintenance Method

Front Maintenance And Rear Maintenance

R5 Plus Maintenance Method Image

Front Maintenance



Rear Maintenance

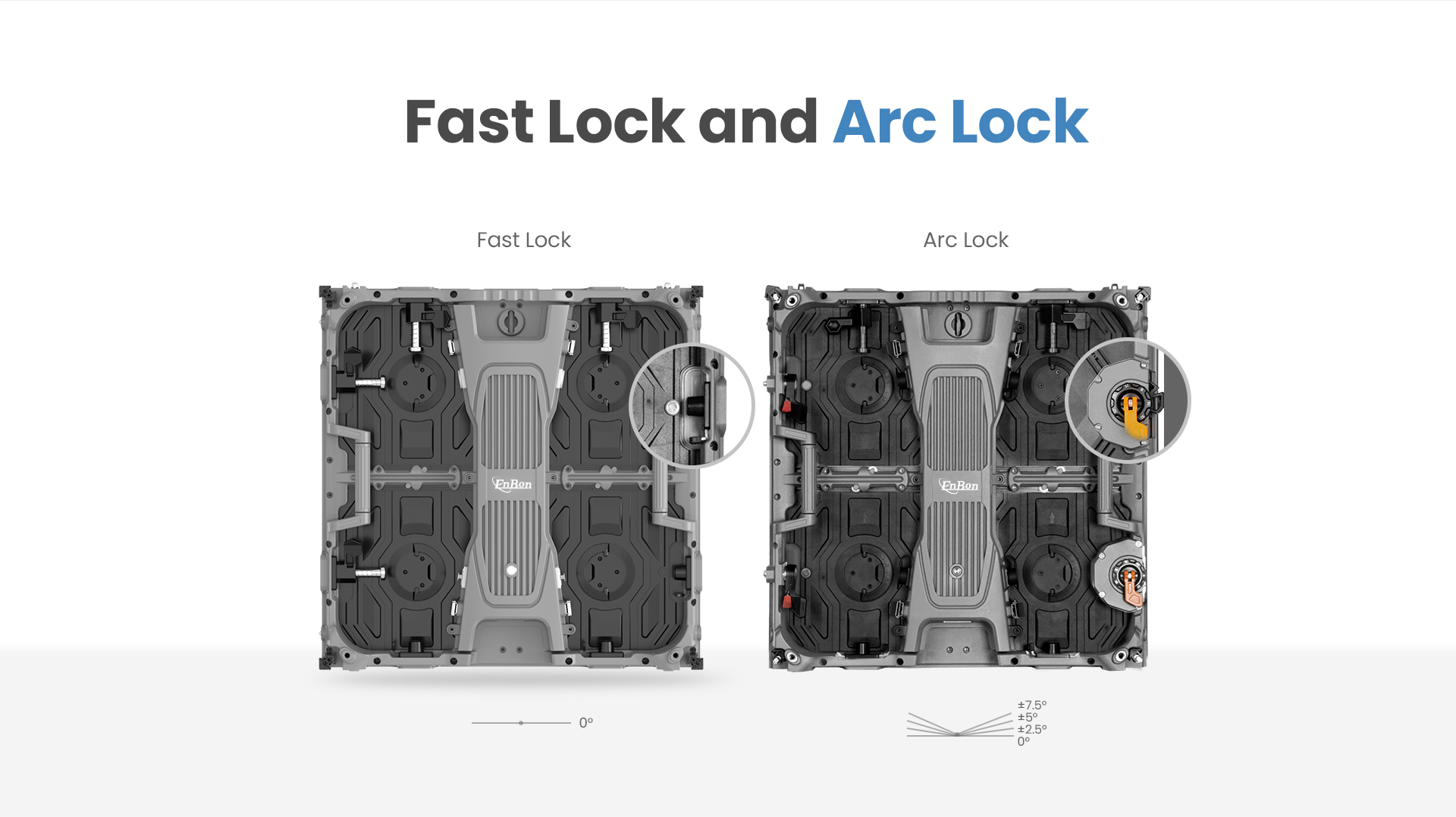

Fast Lock and Arc Lock

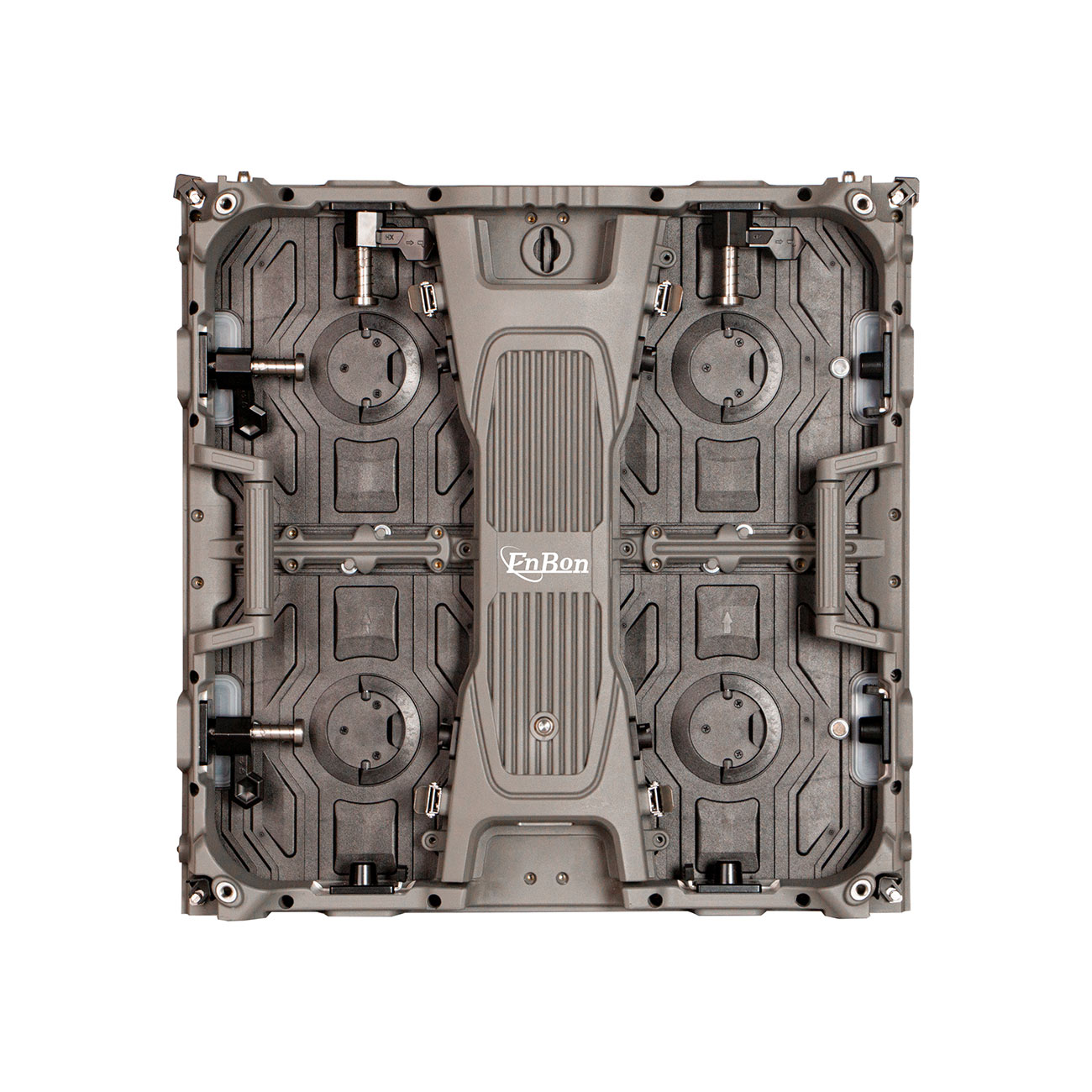

Fast Lock

R5 Plus Fast Lock

Arc Lock

R5 Plus Arc Lock

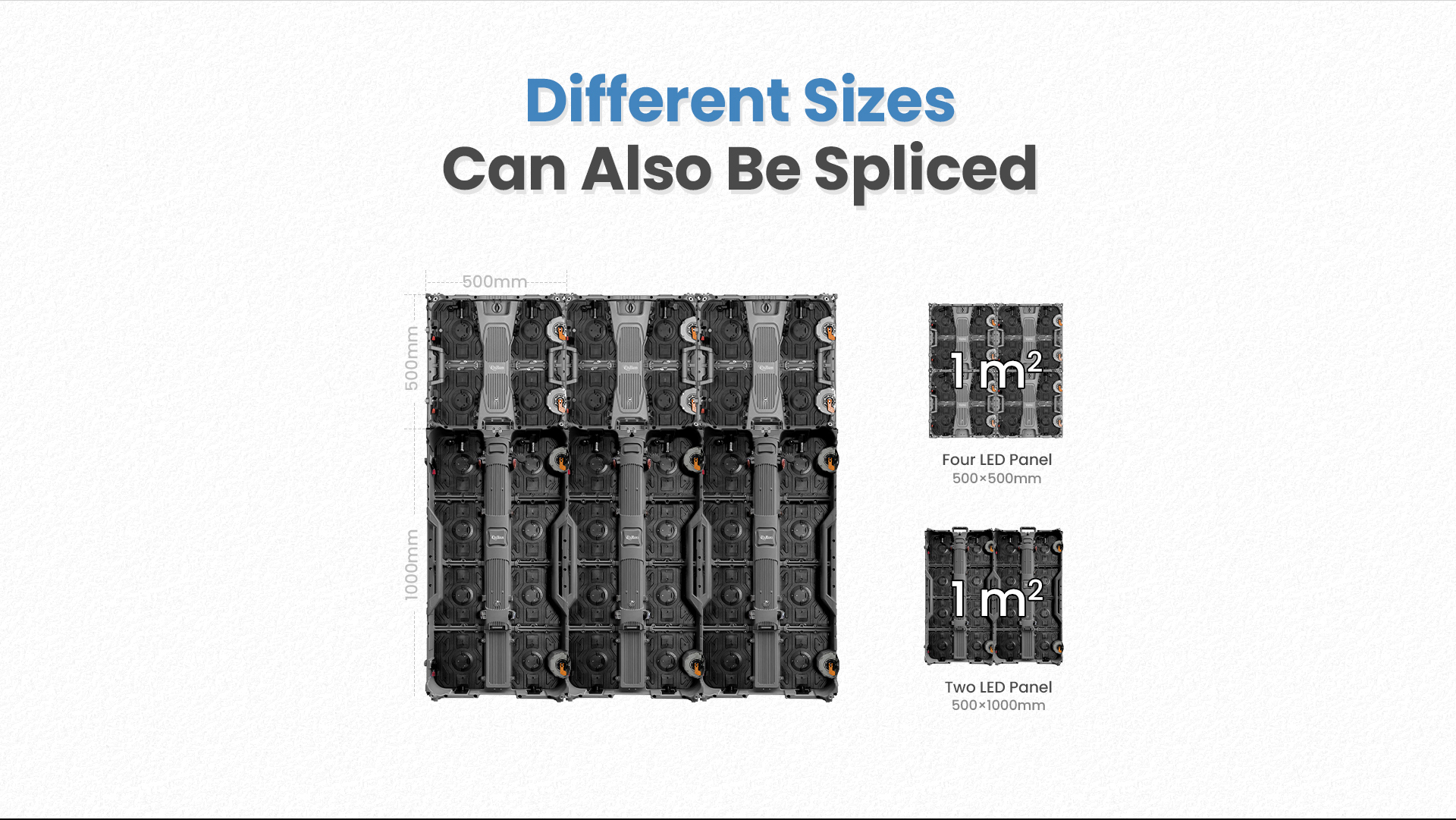

Different Sizes
Can Also Be Spliced

R5 Img

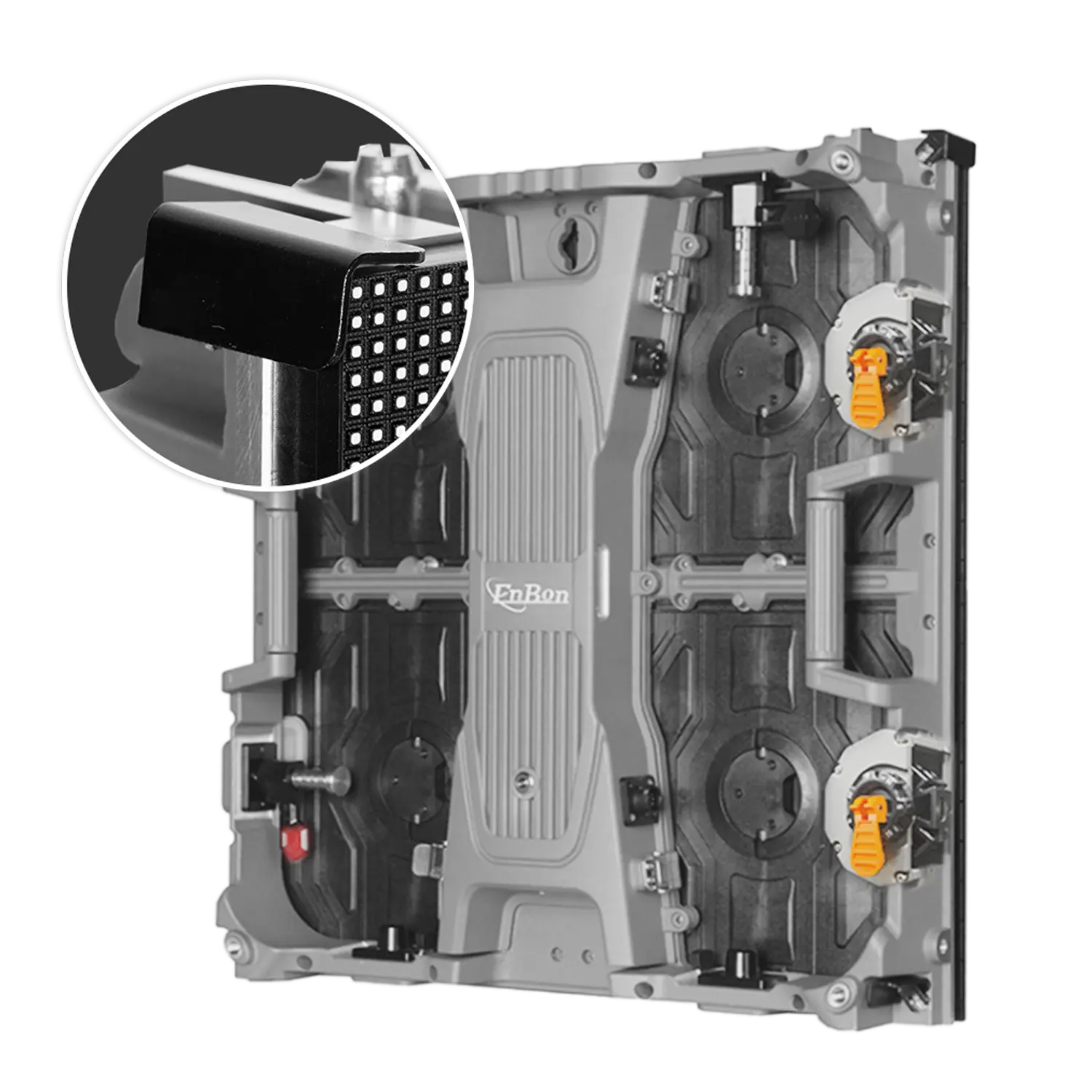

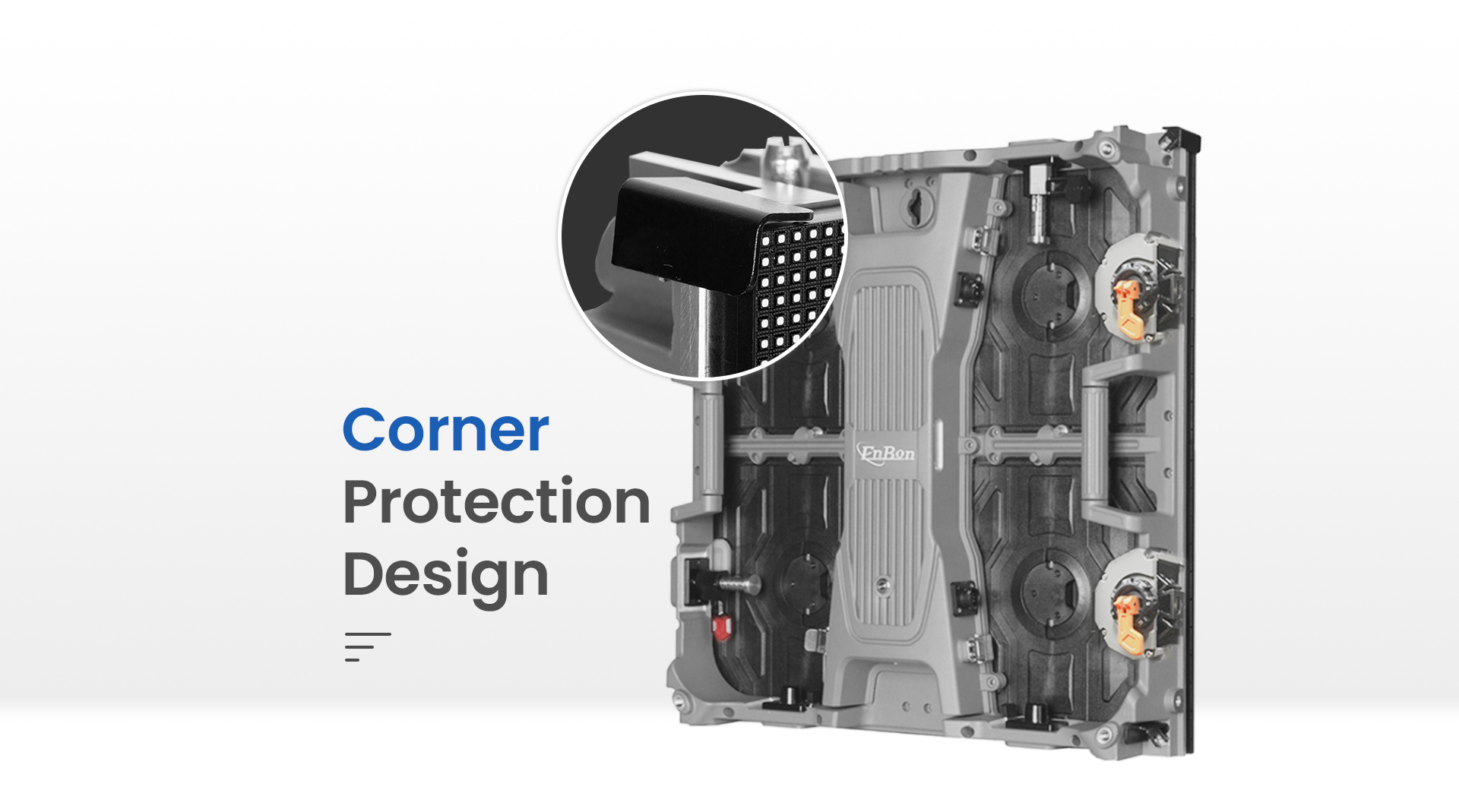

Corner
Protection
Design

R5 Plus Img

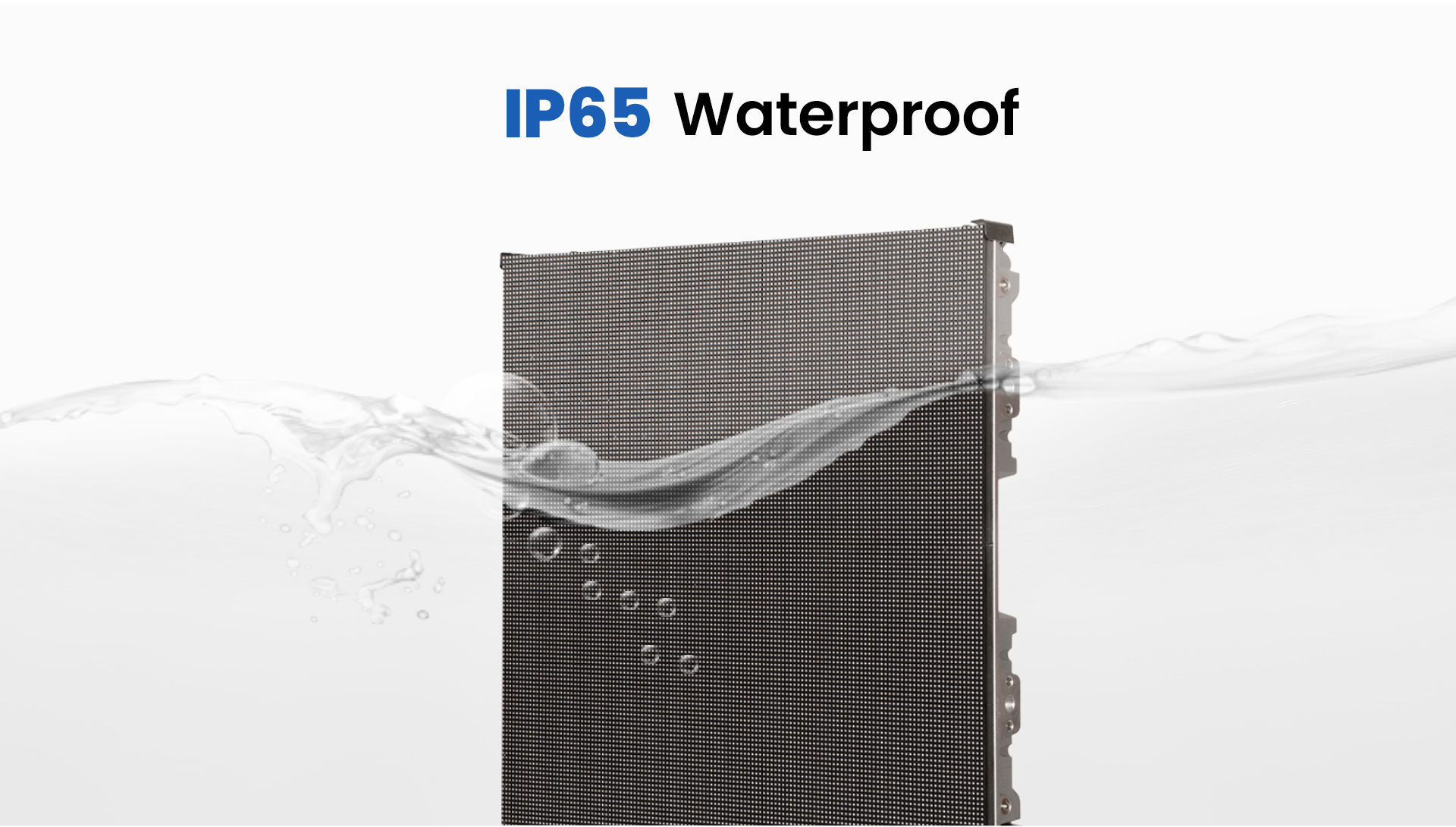

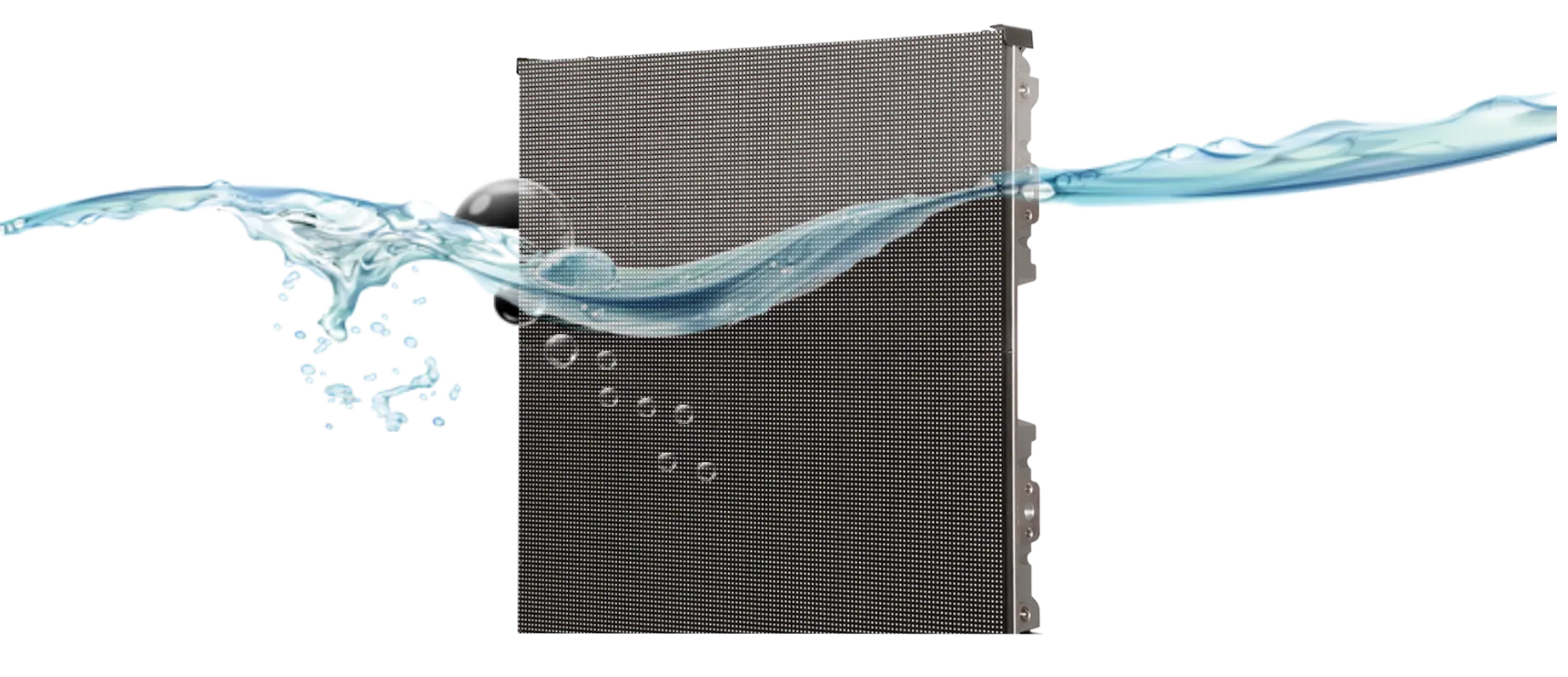

IP65 Waterproof

R5 Plus Img

High Resolution

R5 Plus Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

R5 Plus Grayscale Comparison Image


Low Grayscale



High Grayscale

Product Specification

Item Indoor Outdoor
Pixel Pitch 1.56 1.95 2.604 2.976 3.91 2.604 2.976 3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD1515 SMD2020 SMD1415 SMD1415 SMD1921
Density(dots/m²) 409600 262144 147456 112896 65536 147456 112896 65536
Brightness ≤800 nits ≤800 nits ≤800 nits ≤800 nits ≤800 nits ≥4000 nits ≥4000 nits ≥4000 nits
IP rating IP45 IP45 IP45 IP45 IP45 IP65 IP65 IP65
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Scan 40 scan 32 scan 32 scan 28 scan 16 scan 24 scan 21 scan 16 scan
Module Pixel (dots) 160*160 128*128 96*96 84*84 64*64 96*96 84*84 64*64
Cabinet Pixel (dots) 320*320 256*256 192*192 168*168 128*128 192*192 168*168 128*128
Refresh Rate (Hz) 3840/7680 3840/7680 3840/7680 3840/7680 3840/7680 3840/7680 3840/7680 3840/7680
Cabinet Weight 500*500mm: 7.5kg 500*1000mm: 15kg 500*500mm: 7.5kg 500*1000mm: 15kg 500*500mm: 7.5kg 500*1000mm: 15kg 500*500mm: 7.5kg 500*1000mm: 15kg 500*500mm: 7.5kg 500*1000mm: 15kg 500*500mm: 8kg 500*1000mm: 16kg 500*500mm: 8kg 500*1000mm: 16kg 500*500mm: 8kg 500*1000mm: 16kg
Module Size (mm) 250*250 250*250 250*250 250*250 250*250 250*250 250*250 250*250
Cabinet Size (mm) 500*500*85/500*1000*85 500*500*85/500*1000*85 500*500*85/500*1000*85 500*500*85/500*1000*85 500*500*85/500*1000*85 500*500*85/500*1000*85 500*500*85/500*1000*85 500*500*85/500*1000*85
Max Power 550 w/sqm 550 w/sqm 550 w/sqm 550 w/sqm 550 w/sqm 680 w/sqm 680 w/sqm 680 w/sqm
Average Power 185 w/sqm 185 w/sqm 185 w/sqm 185 w/sqm 185 w/sqm 230 w/sqm 230 w/sqm 230 w/sqm
Viewing Angle H140 (+70/-70) deg V140 (+70/-70) deg H140 (+70/-70) deg V140 (+70/-70) deg
Control Way Synchronous / Asynchronous Synchronous / Asynchronous
Gray Scale 16 bit 16 bit
Operating System AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work Environment Humidity:10% ~ 90% Temp:-20 ~ +65°C Humidity:10% ~ 90% Temp:-20 ~ +65°C


LED Module

Pixel Pitch Indoor:1.56,1.95,2.604,
2.976,3.91
Outdoor:2.604,2.976,
3.91
LED lamp Indoor: SMD1212/1515/2020
Outdoor: SMD1415/1921
Brightness Indoor: ≤800 nits
Outdoor: ≥4000 nits
Module pixel Indoor:160*160/128*128/96*96/
84*84/64*64(dots)
Outdoor: 96*96/84*84/64*64(dots)
Cabinet pixel Indoor: 320*320/256*256/
192*192/168*168/
128*128(dots)
Outdoor: 192*192/168*168/128*128(dots)

Appearance

Module size Indoor: 250*250mm
Outdoor:250*250mm
Cabinet size Indoor: 500*500*85mm
Outdoor: 500*500*85mm
Cabinet Weight Indoor: 7.5kg
Outdoor:8kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 550w/sqm
Outdoor:680w/sqm
Average Power Indoor: 185w/sqm
Outdoor: 230w/sqm


Waterproof grade

IP rating Indoor : IP45         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70)
deg V140(+70/-70)deg
Scan Indoor:40/32/28/16(scan)
Outdoor:24/21/16(scan)

Material density

Density Indoor:409600/262144/147456/
112896/65536dots/m²
Outdoor:147456/112896/65536dots/m²
Cabinet Material Die-casting Aluminum
