FH Series New

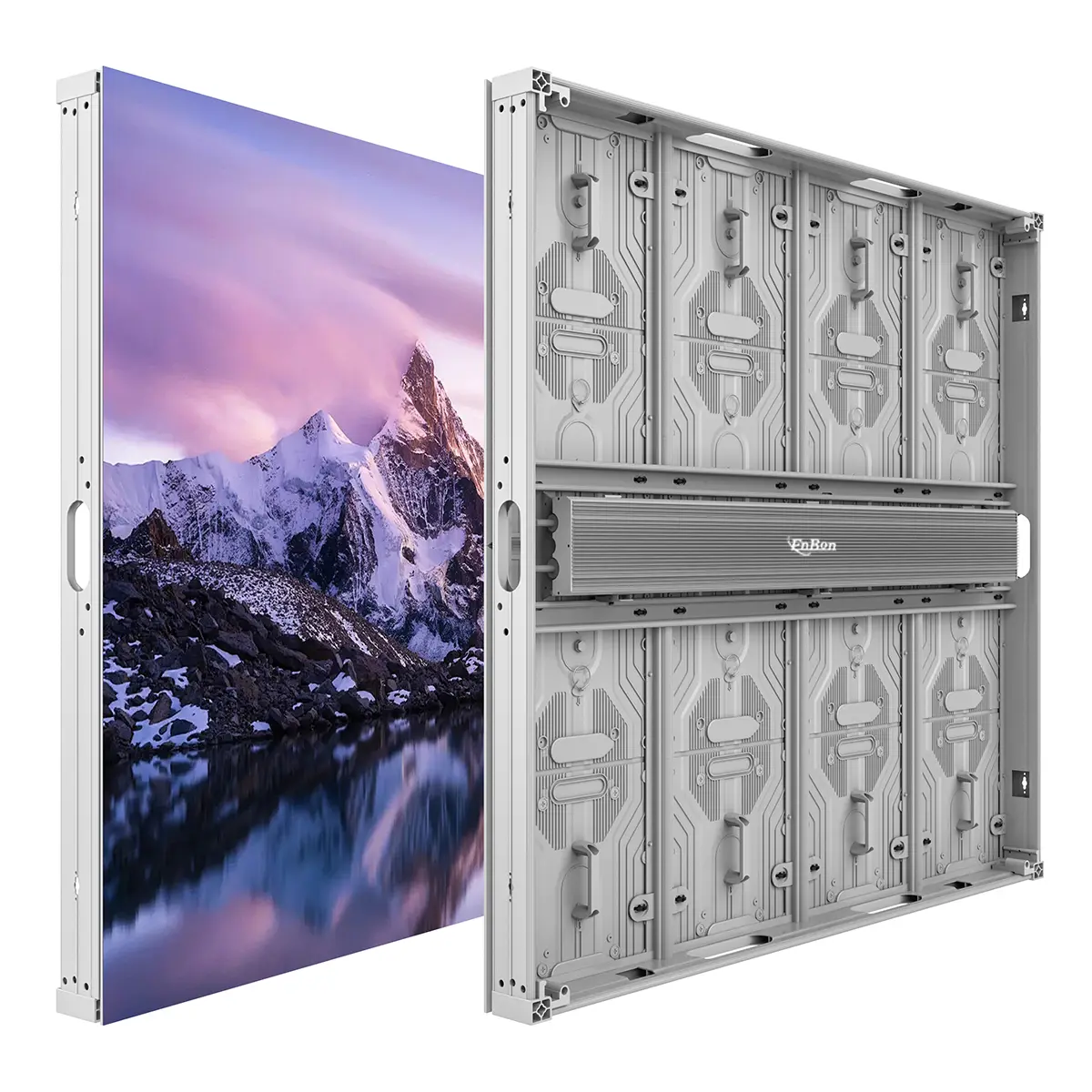

Enbon FH Outdoor Energy-Saving LED Display with Ultra-Thin Cabinet, Seamless Splicing, and IP66 Waterproof Protection

Ultra-Thin, Energy-Saving, and Built to Endure. With seamless splicing, IP66 waterproofing, and lightweight design, it's the perfect solution for vibrant outdoor displays. Save power, reduce costs, and enjoy exceptional durability

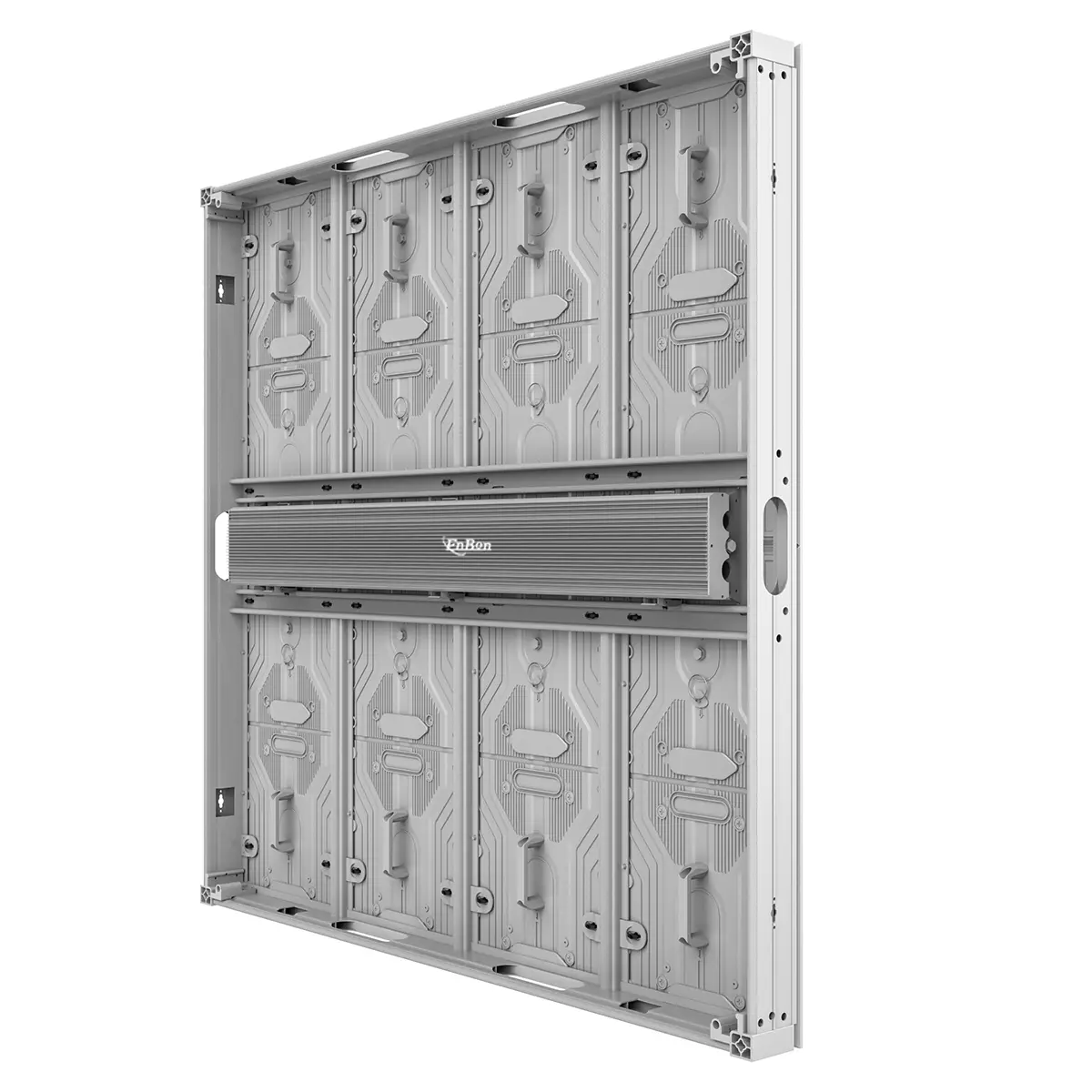

Lightweight Cabinet 25KG with Ultra-Thin 78mm Design

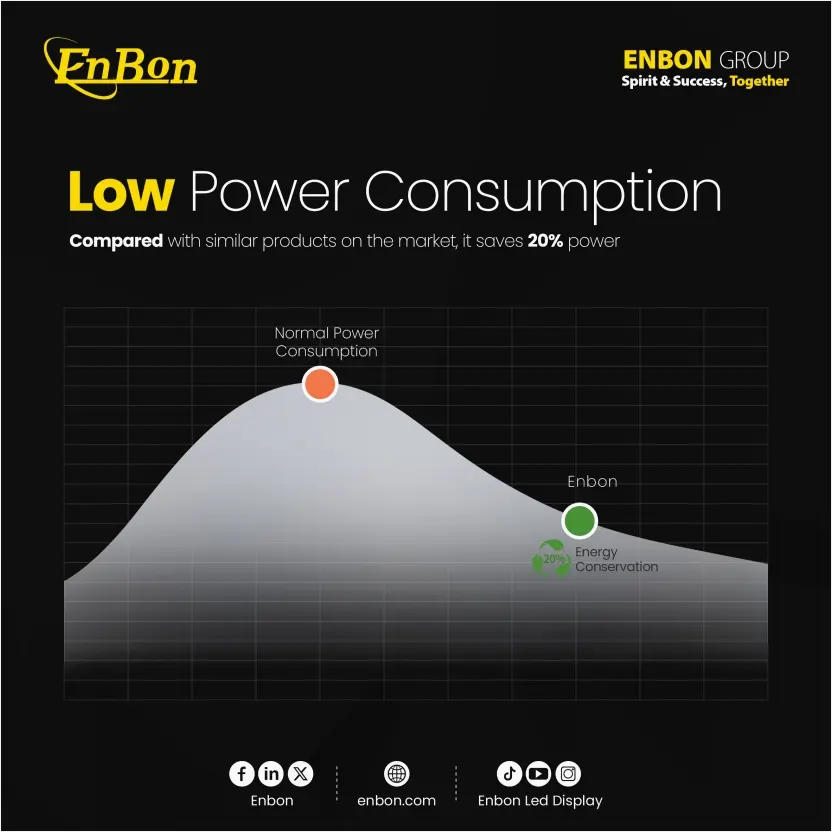

Energy-Saving Common Cathode Technology: Up to 20% Power Reduction

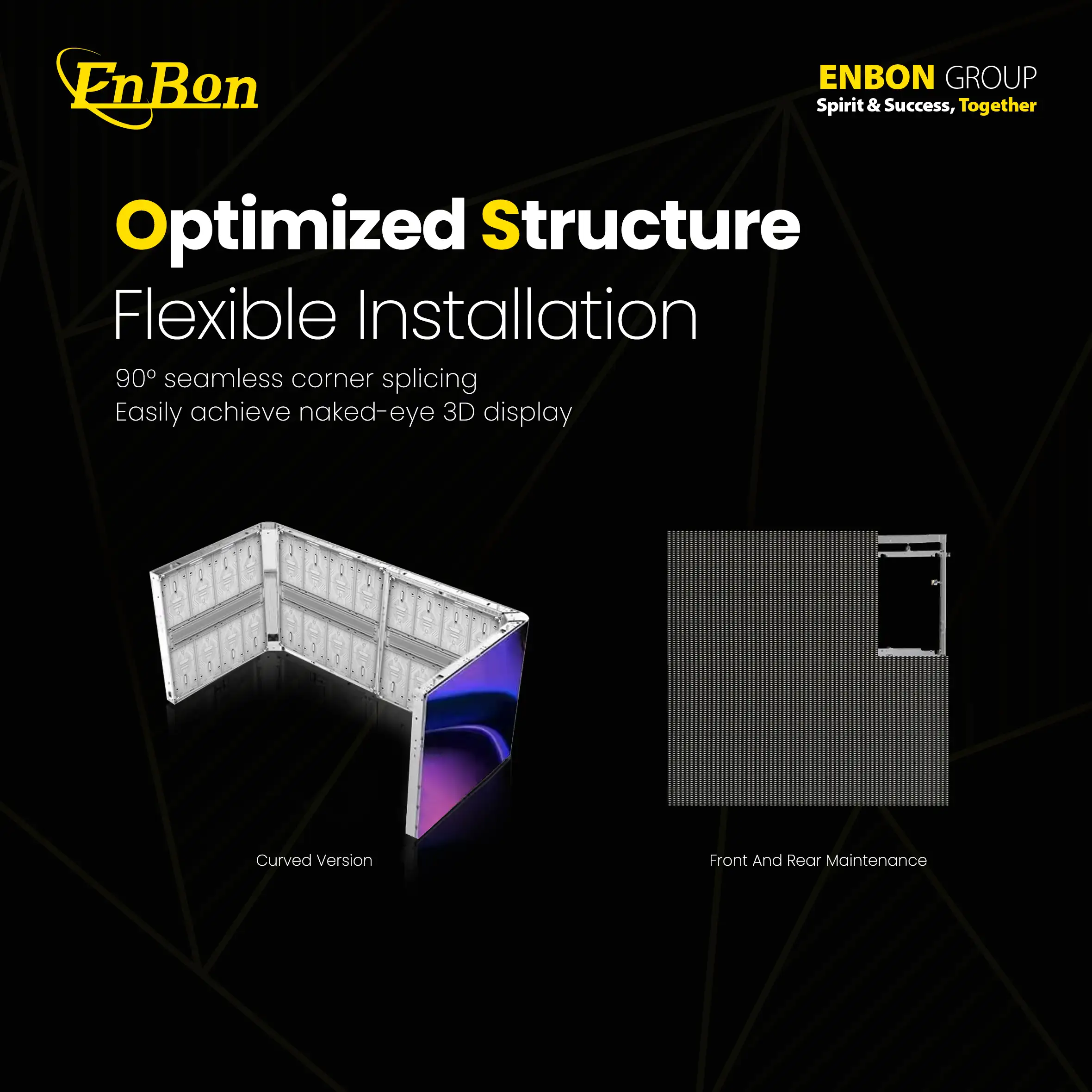

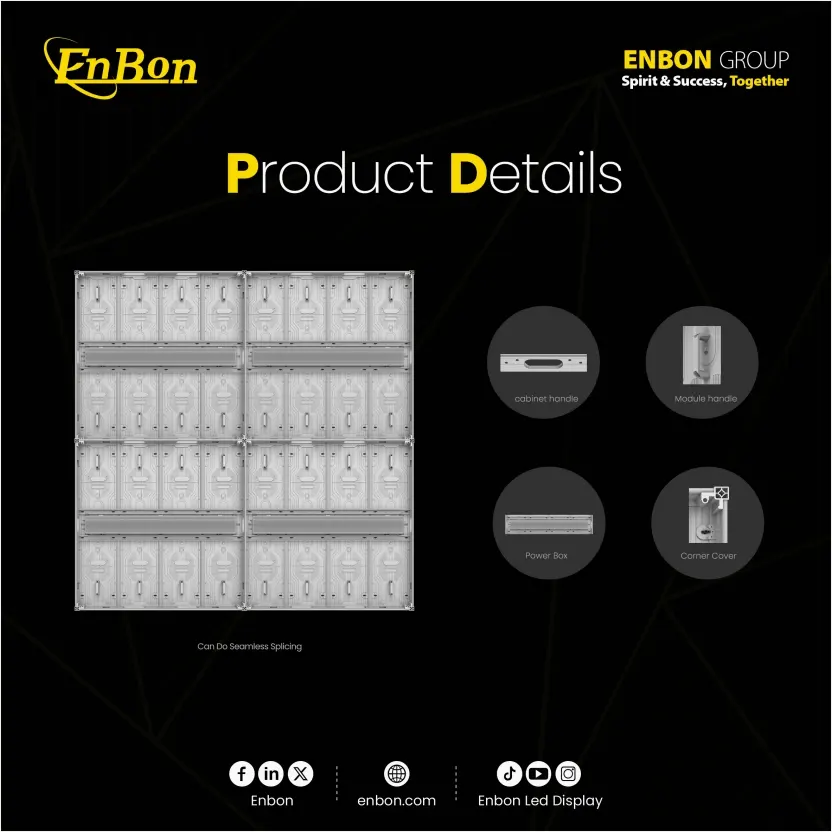

Seamless 90° Splicing & Flexible Installation for Naked-Eye 3D Display

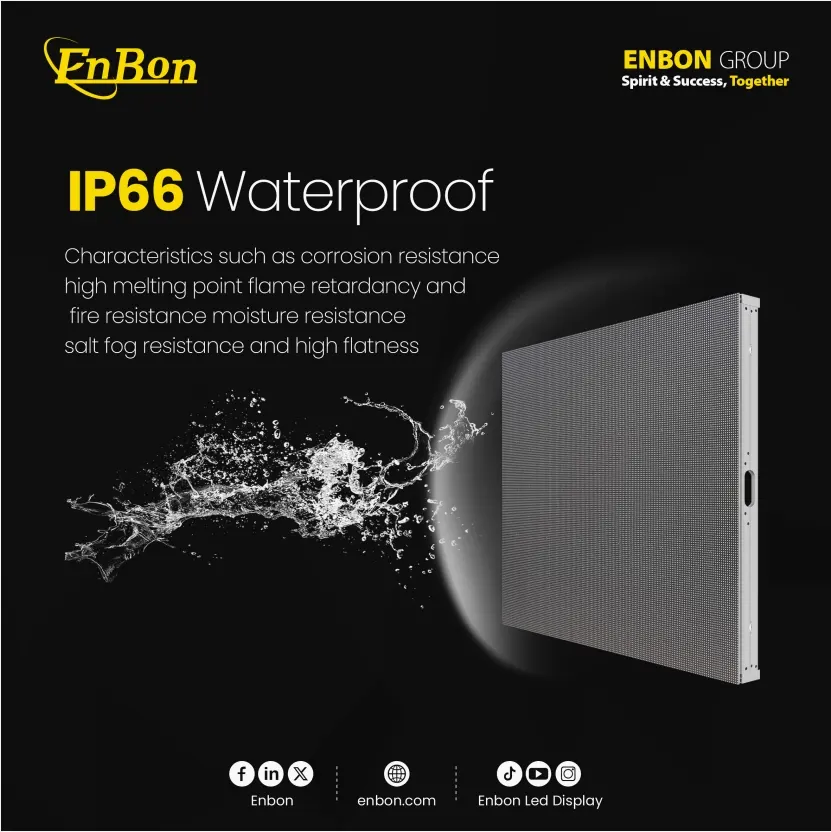

IP66 Waterproof with High Durability against Corrosion, Salt Fog, and Fire

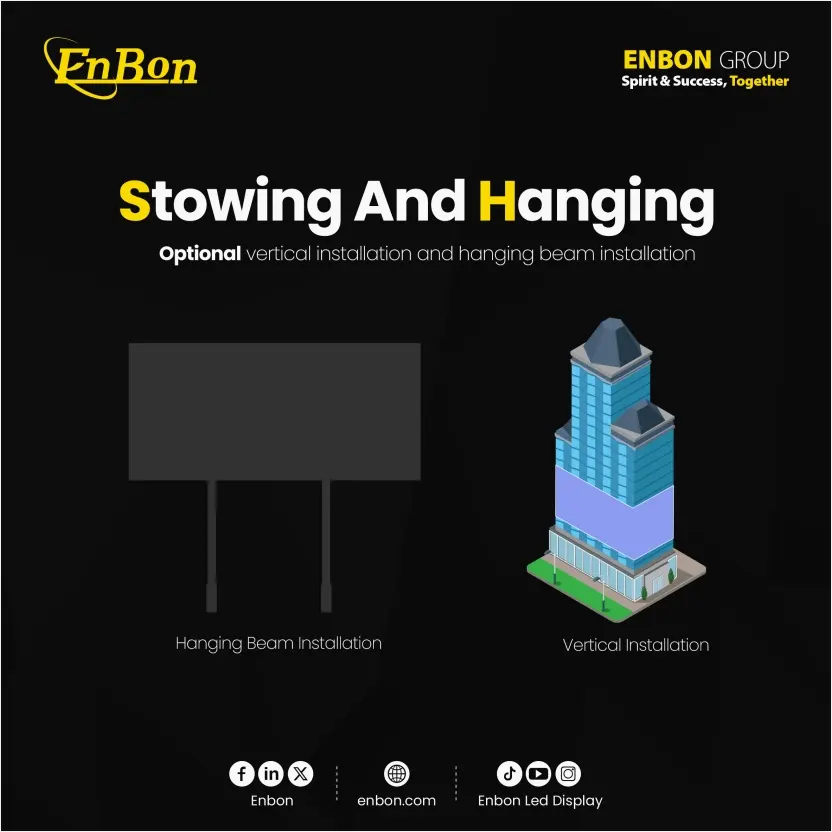

Front and Rear Maintenance Options with Curved & Flat Panel Compatibility

Outdoor LED1000x1000Energy SavingIP6625kg CabinetSeamless Splicing

Description

Product Specification

Item	Outdoor
Pixel Pitch	2.97	3.91	4.81	6.25	7.81	10.42
LED lamp	SMD1415	SMD1912	SMD1912	SMD2727	SMD2727	SMD2727
Density(dots/m2)	112896	65536	43264	25600	16384	9216
Brightness	≥5000 nits	≥5500 nits	≥5500 nits	≥5500 nits	≥5500 nits	≥5500 nits
IP rating	IP66
Cabinet Materiel	Aluminum Profile
Scan	14scan	8scan	7scan	5scan	4scan	2scan
Module weight	1.93Kg
Cabinet Weight	25Kg
Module size(mm)	25050016
Cabinet size(mm)	1000100078
Module pixel	84*168dots	64*128dots	52*104dots	40*80dots	32*64dots	24*48dots
Cabinet pixel	336*336dots	256*256dots	208*208dots	160*160dots	128*128dots	96*96dots
Max Power	550 w/sqm
Average Power	186 w/sqm
Viewing Angle	Horizontal 140(+70/-70) deg 140°/ 120°
Control way	synchronous/asynchronous
Gray Scale	16 bit
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity	10% ~ 98%
Work temperature	﹣40 ~ 85℃

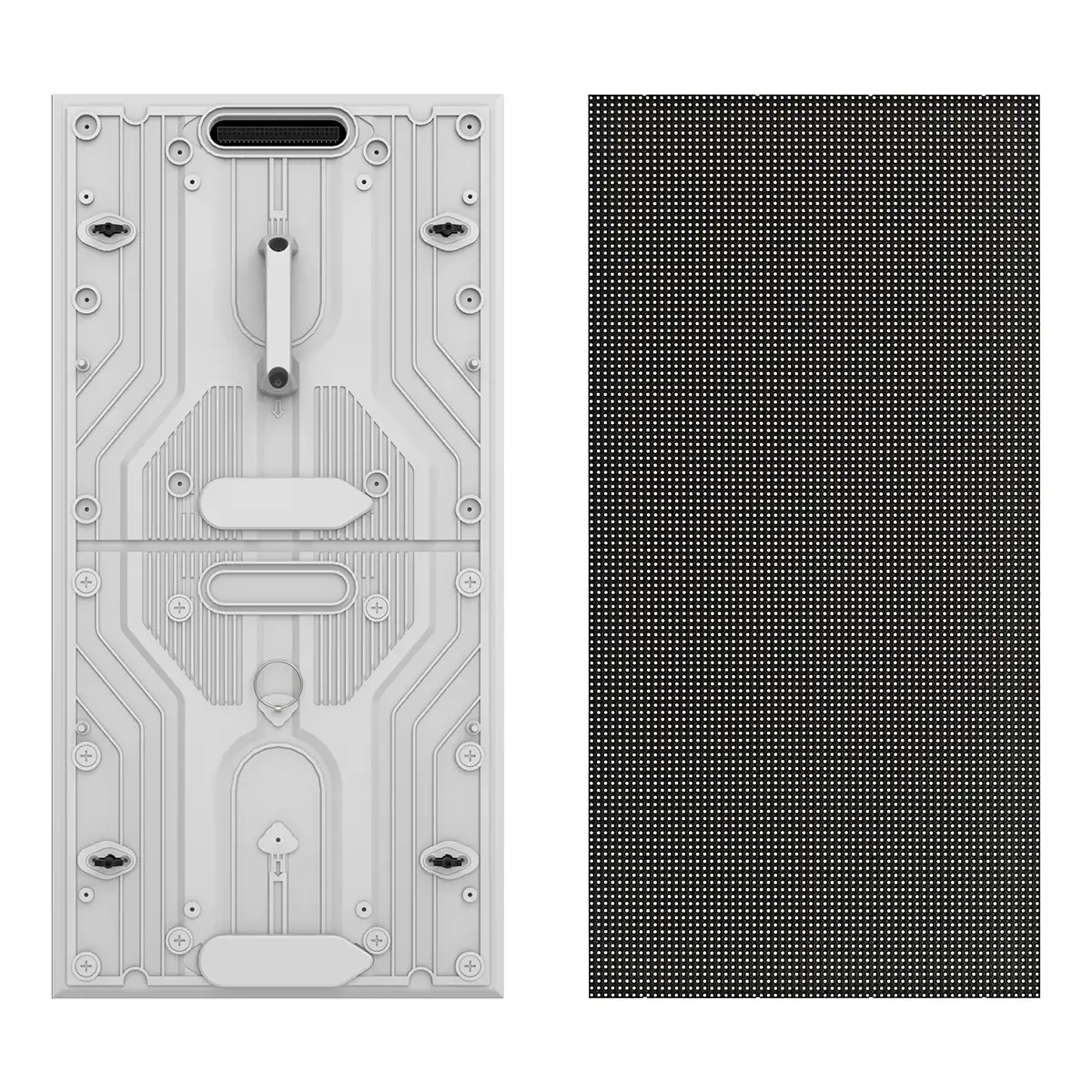

LED Module
Pixel Pitch	P2.97 P3.91 P4.81 P6.25 P7.81 P10.42
LED lamp	SMD1415/1921/2727
Brightness	≥5000nits / ≥5500nits
Module pixel	84168/64128/52104/4080/3264/2448dots
Cabinet pixel	336336/256256/208208/160160/128128/9696dots
Appearance
Module size	25050016mm
Cabinet size	1000100078mm
Module weight	1.93kg
Cabinet Weight	25kg

Working Environment
Work humidity	10％～ 98％
Work temperature	﹣40 ～﹢85℃

System parameter
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Gray scale	16bit

Power
Max Power	550w/sqm
Average Power	186w/sqm

Waterproof grade
IP rating	IP66
Control system
Control way	Synchronous/Asynchronous
Viewing Angle	140°/120°deg
Scan	14/8/7/5/4/2
Material density
Density	112896/65536/43264/25600/16384/9216dots
Cabinet Materiel	Aluminum Profile
